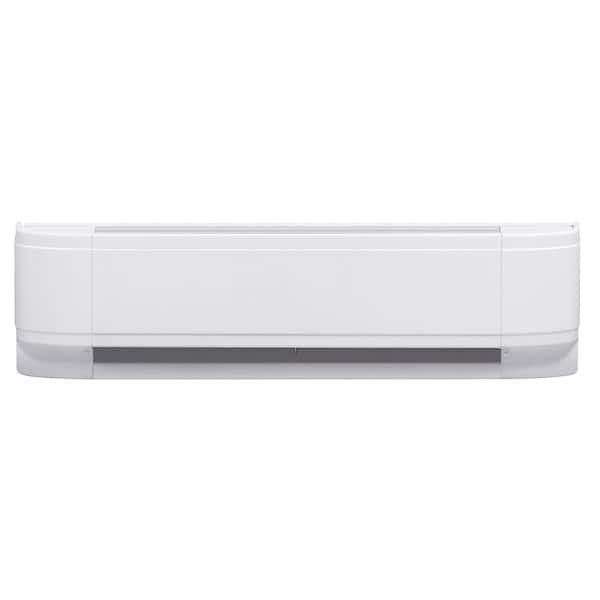

25 in. 750-Watt Linear Convector Baseboard Heater

  • Shark-fin blade design offers enhanced heat transfer
  • Epoxy and polyester powder coating resists fading and abrasion
  • Rapid vertical laminar airflow ensures rapid heating performance
caret

Product Details

The revolutionary design of the Dimplex 25 in. 750-Watt Linear Convector Baseboard Heater provides a sleek, compact profile. Improving heater performance, reducing energy consumption and improving comfort. Dimplex baseboard heaters are the ideal heating solution for any area of your home.
  • Improved performance and reduced length through use of top heat discharge and new fin design
  • Faster heating of the room than a conventional baseboard due to rapid vertical laminar air flow, directing heat to the ceiling more quickly for dispersal throughout the room
  • Superior shark-fin blade design on a steel tubular element for improved heat transfer and longer life
  • Discreet styling, reduced length and added versatility of placement provide more options when designing a room
  • May be used with wall or top mounted built-in thermostat (not included)
  • Full length automatic overheat reset for safety
  • Installation - easily removed front caps, knock-outs on both sides of the convector, and pre-stamp mounting holes make installation easy, top mounted thermostat is optional and can be installed on either side of the LC
  • Finish - specially-formulated epoxy/polyester powder coating is environmentally friendly and resists fading and abrasion
  • Heating element - a nickel chromium element is totally enclosed within a steel sheath, providing superior life expectancy and resistance to rust, shark-fin shaped aluminum fins are firmly staked in an upright position to provide directional wicking for top discharge heat transfer
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

11Questions
caret
Q:Does this require 110 or 220 watt hook up?
by|Nov 7, 2020
1 Answer
Answer This Question

A:  Good Day, This unit requires 240/208 Volts. Glen Dimplex Americas Customer Experience Team

by|Nov 9, 2020
    caret
    Q:I read somewhere there is a wall spacer to install behind this baseboard heater to help prevent w...
    by|Nov 18, 2019
    4 Answers
    Answer This Question

    A:  The one I bought didn't have one, so I made one. I also made a deflector to keep the wall above it cooler.

    by|Nov 21, 2019

      A:  The spacer is about 1/2" thick, it came with the heater ( included on package )

      by|Nov 20, 2019
        1 found this answer helpful

        A:  Actually, it didn't come in the box where I ordered from, but mfr. is sending me some, free of charge. Tks for response. AMB

        by|Nov 20, 2019

          A:  I installed one of these a few years ago, and I don't recall there being a spacer, nor do I think there have been any issues with soot. I've been to that customers house a few times since then and they've never complained about it.

          by|Nov 21, 2019
          caret
          Q:I purchased your Dimplex 500watt heater for my new remodeled bathroom. I also purchased the remot...
          by|Apr 16, 2019
          2 Answers
          Answer This Question

          A:  Good day, What "remote thermostat" did you purchase? How is your heater wired? Please contact us directly @ 1888 346 7539 M-F 8-430pm est. Thank you

          by|Apr 17, 2019

            A:  There may be something wrong with the method of wiring the heater. The remote thermostat should be rated at the same voltage as the heater. It then functions the same as a light switch. Temperature turns the heater on and off. The power to the heater is controlled by the thermostat.

            by|Apr 17, 2019
              caret
              Q:I already have an old existing one with a separate thermostat mounted on the wall. Can i simply replace it and it work?
              by|Jan 20, 2019
              3 Answers
              Answer This Question

              A:  Good Morning, You can use an existing wall thermostat with this heater. Ensure the thermostat is compatible with linear convectors. Thank you

              by|Jan 21, 2019

                A:  As long as the voltages match, yes. As for amperage, this is probably fine for almost any electric baseboard thermostat because it's so small.

                by|Nov 19, 2019

                A:  Yes, but it would depend on the thermostat type. Models this one is compatible with are: Built-in thermostat kits: DTK-SP, DTK-DP, DTKT-SP or DTKT-DP • External line voltage thermostats: TSxx or TDxx • Built-in low voltage relay: BLLVCxx or BLLVD.

                by|Mar 24, 2019
                  1 found this answer helpful
                  Showing 1-4 of 11
                  caret

                  Customer Reviews

                  4.2 out of 5
                  (28)
                  • 4.2
                    out of 28 reviews
                  • 85%recommend this product
                  Filter by:
                  Showing 1-10 of 28 reviews
                  Spacers Required
                  The instruction manual downloaded from the Dimplex site says that the included spacers are not required on drywall. The instructions in the box (and the rep on the phone at Dimplex) say that the spacers ARE required on drywall. Since this was meant for a child’s bedroom, a 7/8” gap between heater and wall is not going to fly. Back to Home Depot these go.
                  by
                    The sleek 750 linear convection base board
                    It’s a real high performance unit, quiet, fast and efficient. Not to mention good looking slim design.
                    by
                    Response from DimplexCustomerServiceDec 13, 2021
                    Good Day,

                    We are happy that you are satisfied with your new product.

                    Glen Dimplex Americas Customer Experience Team DimplexCustomerService
                    • Verified Purchase
                    • Recommended
                    Great heater
                    Great heater. Looks great and provides quiet consistent heat
                    by
                    Response from DimplexCustomerServiceDec 3, 2021
                    Good Day,

                    We are happy you are satisfied with your purchase.

                    Glen Dimplex Americas Customer Experience Team DimplexCustomerService
                    • Verified Purchase
                    • Recommended
                    Compact and heats fast
                    It was easy to install and heats up fast. Good heater for the price.
                    by
                    Response from DimplexCustomerServiceJun 14, 2021
                    Hi Brian,
                    Thank you for the positive feedback, much appreciated. Glen Dimplex Americas Customer Experience Team DimplexCustomerService
                    • Verified Purchase
                    Great compact unit
                    Great compact heater. Heats our 8x 12 room nicely.
                    by
                    Response from DimplexCustomerServiceApr 26, 2021
                    Good Day,

                    We are very happy that you are satisfied with your purchase.

                    Glen Dimplex Americas Customer Experience Team DimplexCustomerService
                    • Verified Purchase
                    • Recommended
                    We have it located at the front door for more heat
                    Looks nice where we have placed it gives off heat.
                    by
                    • Verified Purchase
                    • Recommended
                    Heats well but needs improvements.
                    Inexpensive and works well. The flimsy plastic mounts are a complete pain. Need to redesign. Even if they have to up the price by a few dollars.
                    by
                    • Verified Purchase
                    • Recommended
                    Open top is problematic
                    The open top is good for circulating heat but a crayon fell in ours and caused a lot of problems. Easy enough when you have young children.
                    by
                    Response from DimplexCustomerServiceNov 30, 2020
                    Good Day,

                    This convection baseboard series has top opening for optimum air circulation.

                    Glen Dimplex Americas Consumer Experience Team DimplexCustomerService
                      750W Linear Convector Baseboard Heater
                      In my view, definitely the best baseboard heater available. Well built, easy to install and looks good.
                      by
                      • Verified Purchase
                      • Recommended
                      I am 70 and an amateur but had very little...
                      I am 70 and an amateur but had very little trouble installing. The instructions could have been a bit clearer on removing front panel, but a you tube and one other web site filled in the gaps with a screwdriver twist illustration. Wiring was a breeze.750 watt warms my small bedroom with No noise.
                      by
                      • Verified Purchase
