Z-Wave In-Wall Fixture Module

Product Overview

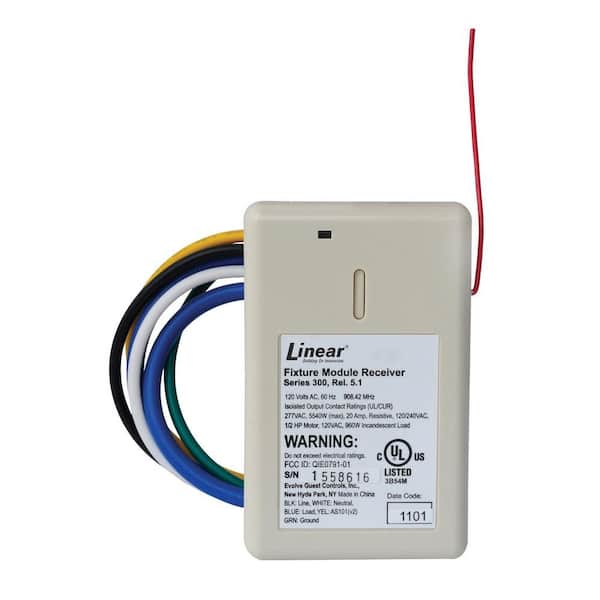

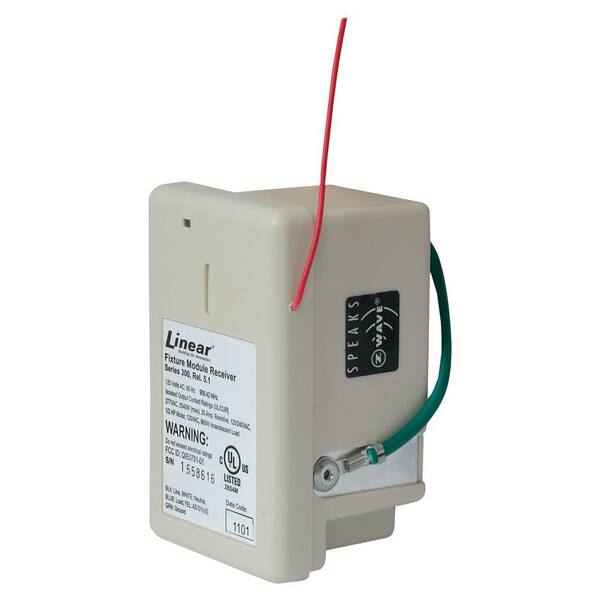

The Linear FS20Z-1 Isolated Contact Fixture Module can be mounted in a single- or multi-gang electrical box to operate loads or control relay-based devices. The relay can be isolated for dry contact applications or powered to switch live loads. This device can operate loads of up to 277-Volt. Possible Applications: Commercial Lighting, In-Ceiling Lighting/fans, Dry-Contact Relays, Pool Pumps, Water Heaters.
  • Isolated contacts: 20 Amp G.P. maximum, 277 VAC, 10 FLA, 60 LRA, 250 VAC, motor: 1 H.P. maximum, 120/240 VAC, incandescent: TV8 (Tungsten), 120 VAC, 960-Watt maximum
  • Signal (frequency): 908.42MHz
  • J-box mounted
  • Dry or wet contact applications
  • Range: up to 100 ft. line of sight between the controller and/or the closest Z-Wave device
  • Input: 120 VAC, 50/60Hz
  • Network wide inclusion
  • Security beaming
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Details

Accessory Type
Appliance and Receptacle Control
Color Family
White
Electrical Product Type
Dimmer/Lighting/Control Part/Accessory
Returnable
90-Day
Smart Home
Smart Home Enabled

Warranty / Certifications

Manufacturer Warranty
One year warranty against manufacturer defect

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.4
    out of 3 reviews
  • 100% recommend this product
Filter by:
Showing 1-3 of 3 reviews
Perfect companion to control landscape lighting. I was looking for a Wink compatible Z-wave modul...
Perfect companion to control landscape lighting. I was looking for a Wink compatible Z-wave module to use outdoors in a protected area (inside built-in BBQ island), and this was a good fit. Used inline/in-series with mechanical timer and low-voltage transformer with photocell. I decided against the outdoor rated 30/40 Amp appliance module due to cost. I liked the dry/wet contact which make it very flexible for many applications. I do wish the instructions provided guidance on mounting (not "in-wall). Right now it sits outside my mechanical timer, and might put it inside a plastic gang box so the wires are better protected, and drill a small hole for the antenna if needed.
by
  • Verified Purchase
  • Recommended
1 person found this helpful
3 Star Review
Rating provided by a verified purchaser
by
  • Verified Purchase
Does the job, no problems at all
Does the job, no problems at all
by
  • Verified Purchase
  • Recommended
