#1 Home Improvement Retailer

Internet #206703840

Model #GS-100-EXP

100-Watt Off-Grid Solar Panel Expansion Kit

  • Convenient addition to existing off-grid solar arrays
  • Panel, extension cables, and branch connector included
  • Plug and play installation
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

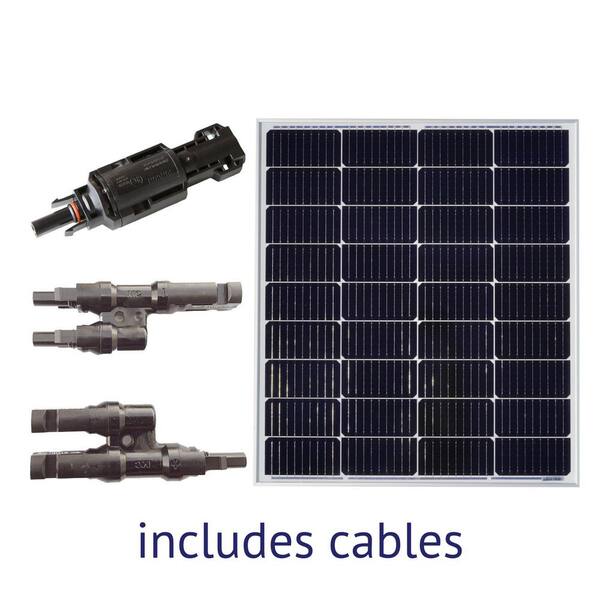

The Grape Solar 100-Watt Off-Grid Solar Panel Expansion Kit is perfect for adding to existing Grape Solar Off-Grid Kits. Whether you need more power for your existing items, or want to run more items off of solar power, the Expansion Kit is the way to go. Made with high efficiency crystalline solar cells for years of service, this solar kit makes it easy to add panels to your system and is virtually maintenance free. An anodized aluminum frame and a sealed junction box make the panel weatherproof for outdoor use. This system will add approximately 300-Watt Hours or 25 Amp Hours of charge per average day to your existing system. This kit includes: 1-piece Grape Solar GS-Star-100W 100-Watt polycrystalline solar panel, a pair of MC4-comparable T-Branch Connectors and a pair of Extension Cables.
  • Ideal for adding additional panels to your Grape Solar GS-100-KIT, GS-200-KIT, GS-300-KIT or GS-400-KIT
  • Polycrystalline panel with anodized aluminum frames and tempered glass for outdoor use and superior performance
  • MC4-comparable T-branch connectors allow for a safe and simple parallel connection of PV-modules
  • Extension cables feature double-insulated black #12 AWG PV wire, UV and moisture resistant


  • Solar Energy Components

  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Off Grid Solar Systems

50-Watt Off-Grid Solar Panel Expansion Kit
current product
100-Watt Off-Grid Solar Panel Expansion Kit
100-Watt Off-Grid Polycrystalline Solar Panel Kit100-Watt 12-Volt Off-Grid Polycrystalline Solar Starter Kit with LCD Charge Controller
BrandGrape SolarGrape SolarWindyNationWindyNation
Name50-Watt Off-Grid Solar Panel Expansion Kit100-Watt Off-Grid Solar Panel Expansion Kit100-Watt Off-Grid Polycrystalline Solar Panel Kit100-Watt 12-Volt Off-Grid Polycrystalline Solar Starter Kit with LCD Charge Controller
Price
Ratings
(9)
(17)
(11)
(27)
Wattage (watts)50100100 W100 W
ApplicationBoat,Cabin,RV,Shed,VehicleBoat,Cabin,RV,Shed,VehicleBoat,Cabin,Camping,RV,ShedBoat,Cabin,Camping,RV,Shed,Vehicle
IncludedNo Additional Items IncludedNo Additional Items IncludedCharge controller,Electrical wire,Mounting hardwareCharge controller,Electrical wire,Mounting hardware
FeaturesOutdoor,Portable,WeatherproofPortable,WeatherproofWeatherproofWeatherproof
Solar panel typePolycrystallinePolycrystallinePolycrystallinePolycrystalline
Panel weight (lb.)10.5819.6617.617.6
Panel length (in.)26.1840.1626.426.4
View ProductView ProductView ProductView Product

Specifications

Dimensions

Panel Height (in.)
1.38
Panel length (in.)
40.16
Panel Width (in.)
26.37

Details

Amperage (amps)
5.56
Application
Boat,Cabin,RV,Shed,Vehicle
Features
Portable,Weatherproof
Included
No Additional Items Included
Indoor/Outdoor
Outdoor
Number of Panels
1
Panel Material
Polycrystalline Silicon
Panel weight (lb.)
19.66
Returnable
90-Day
Solar panel type
Polycrystalline
Voltage (v)
12 v
Voltage (volts)
18
Wattage (watts)
100

Warranty / Certifications

Manufacturer Warranty
Refer to the manufacturer's website

Questions & Answers

12Questions22Answers

Will it work with my Natures generator

Asked by Bob May 7, 2020
2
Answers

You will need a storage battery, 12 volt and charge controler

will this work with my Natures Generator ?

Asked by Bob May 6, 2020
1
Answer

Panels will produce energy via a completed circuit when fully exposed to sunlight. You will have to check with the manufacturers of your generator to see if they use MC4-compatible connectors (present in this kit) or proprietary connectors, or if the panel specs meet their requirements. The 100W panels have the following specs: Vmpp:18, Voc:21.9, Impp:5.6, Isc:6.1

will these solar panels keep a mini fridge running. I'm trying to put one in my shed

Asked by b4dolla April 20, 2020
1
Answer

To accurately size a system we will need to know the wattage of your mini fridge. Contact support@grapesolar.com for assistance in sizing a system.

would this solar panel be compatible with the Patriot Solar power generator using Lion Energy 12v...

Asked by Barryb August 15, 2018
3
Answers

Yes it will. Hope this helps!

For the deep cycle battery, should I get a 6 volt or 12 volt battery? Also what size of inverter what I need?

Asked by DIYGAL May 17, 2018
3
Answers

Doesn't matter on the battery at all. Inverter depends in what you plan on using it for. If sensitive equipment, I might suggest pure sine wave inverter. Hope this helps!

Can I plug this into an existing 120 volt outlet at my home and have it feed power into the grid?

Asked by jlonslo2 April 19, 2018
3
Answers

Absolutely no, it requires an inverter.

soler panal

Asked by donkey December 13, 2017
1
Answer

I am sorry but I do not know. Please contact Grape Solar direct.

how long is the extension cable

Asked by BKM November 4, 2017
3
Answers

2 feet. Hope this helps

what size controller do i need for 4 of these panels? and type...thanks

Asked by gillhunter November 20, 2016
2
Answers

If they are all 100 watt panels, a 40 amp controller will work just fine. The type I am using is GS-PWM-40BT. Hope this helps!!

Will this poduce enough power to plug outdoor lighting into and have about a 5 hr charge?

Asked by Evdw June 18, 2016
3
Answers

Depends on your batteries and the consumption of the lighting. Hope this helps!

100-Watt Off-Grid Solar Panel Expansion Kit - page 2

Customer Reviews

  • 4.9
    out of 17 reviews
  • 100% recommend this product
Filter by:
Showing 1-10 of 17 reviews
Very easy to assemble and install. Had it shipped to the store so I could pickup the necessary ha...
Very easy to assemble and install. Had it shipped to the store so I could pickup the necessary hardware for installation. Took less than an hour and it is working exactly as it is supposed to! Definitely recommend and will be ordering another 150 watt kit!!
by SurfCityKitty
Just what I needed, brought my off grid system up...
Just what I needed, brought my off grid system up to my expectations.
by upgrade
great panels
I installed these yesterday a total of three at peak they was putting out 21.3 volts and 16.2 amps
by Thunder
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Gets the job done. I added this to my previous 100w Grape Solar panel to run my 24/7 pump (a 12v ...
Gets the job done. I added this to my previous 100w Grape Solar panel to run my 24/7 pump (a 12v boat bilge pump) in a fish stock tank. Of course a battery bank keeps it going at night, but the 2 panels are strong enough to run it daily and bring batteries to a full charge before I lose sunlight.
by OffGridFish
Works great. Easy install....
Works great. Easy install.
by ALAN
Nice panel I added to my RV. Could not tell...
Nice panel I added to my RV. Could not tell if it was USA made but was good quality and value. Easy to install on RV roof. would recommend for small off grid systems.
by MIKE
Works great. Generates tons of juice...
Works great. Generates tons of juice
by MIKE
Outstanding Solar Panels, we have a total of 4 100 Watt solar panels providing power for our off ...
Outstanding Solar Panels, we have a total of 4 100 Watt solar panels providing power for our off Grid Cabin. This includes 6 deep cell batteries in parallel with 3000 watt inverter providing electricity for all our needs which includes running two 12 volt pump (1 in the Bathroom to shower and 1 under the sink for my wife to do dishes)... vacuming... numerous phone charging outlets... running our new wave convection oven... and most important of all it provides lighting threw out our 14 x 40 cabin. Money well spent on solar panels.
by Billbaileysmusic
1 person found this helpful
Showing 1-10 of 17 reviews
