Model # GS-PWM-40BT

Internet #207100856

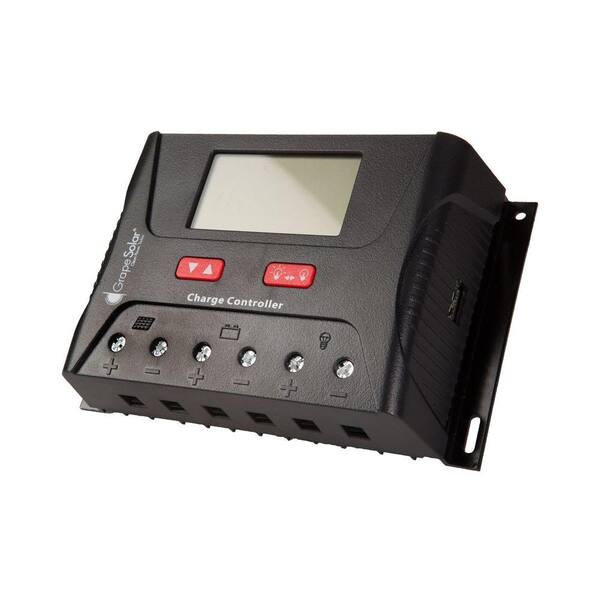

Grape Solar 40 Amp PWM Solar Charge Controller with Bluetooth
0855172003782

Grape Solar

40 Amp PWM Solar Charge Controller with Bluetooth

$5498 /each

Overview

The Grape Solar 40 Amp PWM Solar Charge controller with remote monitoring allows you to safely charge your battery bank with your solar array. It prevents overcharging your batteries, as well as keeping your batteries from back-feeding. An interactive LCD display provides a variety of ways to monitor and control your system. The remote monitoring capabilities also allows you to access your system remotely via your smartphone.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Grape Solar 40 Amp PWM Solar Charge controller with remote monitoring allows you to safely charge your battery bank with your solar array. It prevents overcharging your batteries, as well as keeping your batteries from back-feeding. An interactive LCD display provides a variety of ways to monitor and control your system. The remote monitoring capabilities also allows you to access your system remotely via your smartphone.

Product Overview

Model #: GS-PWM-40BT
Internet #: 207100856

The Grape Solar 40 Amp PWM Solar Charge controller with remote monitoring allows you to safely charge your battery bank with your solar array. It prevents overcharging your batteries, as well as keeping your batteries from back-feeding. An interactive LCD display provides a variety of ways to monitor and control your system. The remote monitoring capabilities also allows you to access your system remotely via your smartphone.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
1.75
Product Height (in.)
4
Product Width (in.)
6.5

Details

Accessory Type
Power Supply
Product Weight (lb.)
1lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 year limited warranty for workmanship and materials

Specifications

Dimensions

Product Depth (in.)
1.75
Product Height (in.)
4
Product Width (in.)
6.5

Details

Accessory Type
Power Supply
Product Weight (lb.)
1lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 year limited warranty for workmanship and materials

Questions & Answers

What is the purpose of the load output? I am assuming the output with the light bulb symbol is the load output.

Is it preferable to connect an inverter to the load terminals as opposed to connecting it directly to the battery? Why?
Asked by: Pete
I don't want to be contentious, but "Me" in Oregon is not correct (with all due respect, see more below). The only reason i know is that I thought the same thing he/she did and kept draining my batteries every night. So here's the answer: This thing is basically a street light, or night light controller. So you can basically program the "Load" to turn on at sunset and turn off at dawn, or you can vary that by several hours before/after dawn each way. It is NOT a Load "DIVERTER", which is what "Me" describes. If your batteries are fully charged, then it WILL divert some power to the load; that's true. So at 2pm when the sun is bright, the load will be activated. But at night, it will turn the load on as well, and run your batteries down to the disconnect voltage, about 11.xV. If you want a true load DIVERTER, then you're looking at something like the Xantrex Schneider C40 series which can be used as an charge controller, OR as a Load Diverter. THIS IS the type of product that "Me" actually describes. I thought the same thing at first. The only thing I think of for an application similar to the one "Me" describes, would be to hook up a dump load, which i don't see on the HD website, to divert excess power when batteries are charged, and install a blocking diode inline with the battery connection that prevents battery discharge, but that is not how this thing is designed. Think of it as a Street Light controller, which it is good for. It will overcharge batteries if the solar panels are large enough.
Answered by: Steve
Date published: 2017-08-07

does temp compensation work? How often does the APP update? Do ya need to keep it on 'record' to ...

does temp compensation work? How often does the APP update? Do ya need to keep it on 'record' to record? Is there a user guide for the APP? How do ya enter a neg number into temp compensation via the APP?
Asked by: rabird
Here is a working IOS App Store link: https://itunes.apple.com/us/app/smart-id/id1145761873?mt=8 The one in another answer didn't work for me...
Answered by: Cimedaca
Date published: 2017-03-31

if my batteries are at 100 % why does the controller still be on boost ? shouldn't it be on float ?

if my batteries are at 100 % why does the controller still be on boost ? shouldn't it be on float ?
Asked by: waleye
As noted below, a 100% reading does not necessarily indicate that the batteries are in float mode, but it does mean they are close. Also note that this controller does have an automatic EQ cycle that can be adjusted with the app (contact Grape Solar directly for the app download).
Answered by: Grape Solar Expert
Date published: 2017-11-13

How do I use the Bluetooth? I can't find any apps for it.

Asked by: Chupacabra
Unfortunately you will have to email tech support they will email you back an attachment
Answered by: Muteel
Date published: 2016-11-06
  • y_2017, m_12, d_11, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_36
  • loc_, sid_207100856, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 99ms
  • QUESTIONS, PRODUCT

Customer Reviews

40 Amp PWM Solar Charge Controller with Bluetooth is rated 4.3 out of 5 by 31.
Rated 5 out of 5 by from Called Grape Solar to help me chose the right controller size. They know their "stuff" (I had pu... Called Grape Solar to help me chose the right controller size. They know their "stuff" (I had purchased another one earlier from another place and it was too small)...It handles my 2 panels, keeps the battery charged, and a 12 volt timer makes the lighting system work effortlessly! It has been working for almost 3 months. I will add another panel and battery for another few lights etc.
Date published: 2017-12-02
Rated 3 out of 5 by from The on-line manual indicates this will also work with a 48V system (four 12V panels in series), b... The on-line manual indicates this will also work with a 48V system (four 12V panels in series), but the instructions that came with the unit have that option blacked out. Since I have a 48V system, it had to be returned. It is probably OK for 12V and 24V systems, but not for me.
Date published: 2017-11-28
Rated 2 out of 5 by from Using it, but not real pleased This product was advertised to manage and monitor load. Any load drawing more current than a small LED lightbulb trips the circuit. I set the over-discharge and recovery voltage per technician guidance, but no joy. Charging management works fine so far.
Date published: 2017-08-01
Rated 4 out of 5 by from Great, but... Works very well. The Bluetooth interface could use a better Android app. Hope to hear updates available...
Date published: 2017-09-07
Rated 5 out of 5 by from Grape 40 Amp charge controller Works as discribed easy to set up, instructions easy to follow
Date published: 2017-06-20
Rated 5 out of 5 by from Love the features of this controller.... Love the features of this controller.
Date published: 2017-09-12
Rated 5 out of 5 by from Easy to install. Good quality!... Easy to install. Good quality!
Date published: 2017-11-07
Rated 3 out of 5 by from Seems to work fine Seems to work fine
Date published: 2017-08-23
