Wiremold 500 Series Metal Surface Raceway Duplex Receptacle Kit, Ivory

$13.18
  • Add fixtures and outlets without disturbing drywall
  • Extend circuits indoors with ease (drilling required)
  • Durable metal construction
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The Legrand Wiremold 500 series raceway is ideal for surface mounting small amounts of electrical wiring or communication cables. Surface metal raceway allows you to add fixtures and outlets without disturbing the drywall, plaster or insulation in your home. It is also ideal for adding wire when you can't go into the wall, such as on concrete foundations or brick walls. Combine with other 500 series connectors, fittings, and channel to ensure you have the right customization for every project.

Highlights

  • Can be used both in line and as a starting point for extending an electrical circuit from an existing outlet
  • 1 inch deep single gang box fits most standard electrical outlets and switches
  • Includes a residential grade duplex outlet and color matching wall plate
  • Neutral ivory finish features an exclusive ScuffCoat finish
  • Metal box is paintable and stainable with oil based products to blend with your decor
  • Low profile appearance
  • Pre-assembled once piece base speeds the installation process
  • Durable metal construction
  • Shop the entire Metal Raceway Collection here
  • Return Policy

Product Information

Internet # 205668881

Model # B2-D

Store SKU # 1001249366

Specifications

Dimensions: H 4.75 in, W 3 in, D 1.125 in

Dimensions

Product Depth (in.)

1.125 in

Product Height (in.)

4.75 in

Product Width (in.)

3 in

Details

Color Family

Off White

Color/Finish

Ivory

Electrical Product Type

Raceway Cord Cover

Features

Paintable

Location

On-wall

Material

Steel

Product Weight (oz.)

3 oz

Raceway Cord Covers System

None

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Limited 1 year warranty

Questions & Answers

10Questions
caret
Q:can the power wires be brought in back of the box
by|Nov 16, 2023
1 Answer
Answer This Question

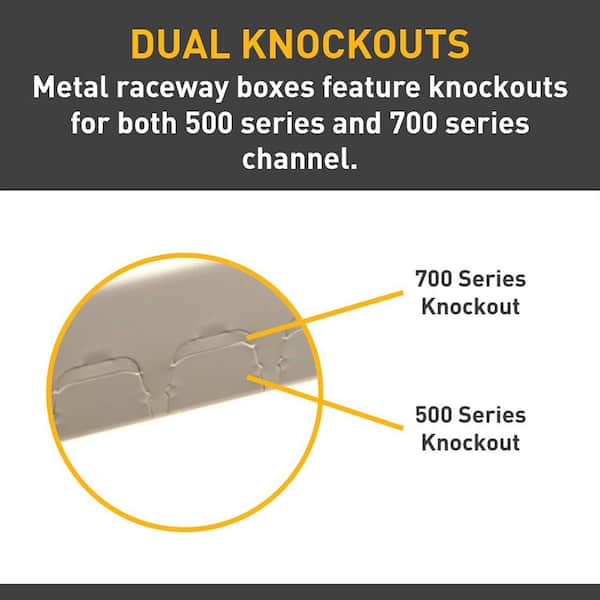

A:  Hi, Yes it has a 1/2" trade size knockout on the back plate. Thanks,

by|Nov 17, 2023
    caret
    Q:Can this be wired direct to circuit breaker panel?
    by|May 21, 2023
    1 Answer
    Answer This Question

    A:  Hi Dave- The BW2-D duplex receptacle kit is intended to be used with BWH1 raceway and the B-81 for connecting raceway to panel boxes. Thank you,

    by|May 22, 2023
      caret
      Q:Can this be wired direct to circuit breaker box?
      by|May 21, 2023
      1 Answer
      Answer This Question

      A:  Hi Dave- The B2-D duplex receptacle kit is intended to be used with B-1 raceway and the B-81 for connecting raceway to panel boxes. Thank you,

      by|May 22, 2023
        caret
        Q:Can we use this receptacle box on the back side (through) of an existing in wall box
        by|Feb 23, 2023
        1 Answer
        Answer This Question

        A:  The BW2-D receptacle box cannot be used on the back of an existing in wall box. It is for surface mounting only.

        by|Feb 24, 2023
          Showing 1-4 of 10

          Customer Reviews

          4.7 out of 5

          • 4.7 out of 226 reviews
          • 93% recommend this product
          Filter by:
          Showing 1-10 of 226 reviews
          This is perfect for installing a surface mount, low profile power outlet just about anywhere. It ...
          This is perfect for installing a surface mount, low profile power outlet just about anywhere. It is very robust with its steel housing and the raceway that nicely hide and protects your cabling. It is very easy to install and it looks great as well. So if you need to quickly install an outlet, and do not want, or cannot do it in wall, this is the perfect solution. I give it 5 stars all the way for quality, ease of installation and great looks. I highly recommend it!
          by
          • DIY
          • Verified Purchase
          • Recommended
          good for 14/2 lighting circuit. not good for 12/2 appliances
          too small for 12/2 outlet wires for appliances. the outlet is almost flush with the back plate so wires would need to come from the top but there's no room and if the outlet is backfeed then how can it come from the back if the plate is 3mm from the outlet? Only a 14ga wire could make that 90 degree turn. The outlet is real cheap $1 variety 15amp that would be ok for a light of fan but I don't trust it for a toaster. I think the deeper legrand boxes plus a leviton 20A outlet is the way to go if you are adding an appliance outlet or outlets with 12/2 individual wire maybe this can be attached to an inset box so it's not a total waste. but the receptacle is junk.
          by
            • Recommended
            1 found this review helpful
            Easy to install, and low profile, but there is limited room for wires since it is only about an i...
            Easy to install, and low profile, but there is limited room for wires since it is only about an inch thick. I installed two of these on my garage ceiling for my garage door openers. It was a pain to get the wires neatly tucked into the box, especially having to work overhead. If I had to do it over, I would get the extra deep box and purchase my own outlet. The outlets are cheaper looking than the Levitons or other brands, but I figured that these were for my garage door openers, so they won't really see the wear and tear of a regular outlet. But having struggled to get the wires neatly tucked in, the installation looks pretty good.
            by
              • Recommended
              2 found this review helpful
              • Verified Purchase
              The receptacle kit was handy because I didn’t have to put in a separate junction box. I was swapping an attic light with a receptacle and this made it easy. I would have given it 5 stars if the box was a little bit deeper and/or had some alternate places to mount it. Overall though I’m pretty happy with the result.
              by
              • Verified Purchase
              This "kit" was perfect for the electrical project I installed.
              by
              • Verified Purchase
              • Verified Purchase
              • Verified Purchase
              Very nice and well made product. Easy to install once the very poor instruction sheet was de-cyphered
              by
              • Verified Purchase
              It's good easy to assemble but the proyect I was doing needs a bigger box but I just put it there until I find one they don't have the larger ones were I live
              by
