- Enabled to control lights from two different locations
- Designed to replace a 15 Amp or 20 Amp 4-way switch in your home
- Two 3-way switches must be used in a 3-way circuit
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
With back-wired and side-wired installation options, the Leviton 20 Amp 3-Way Commercial Toggle Switch is recommended for use by electricians and contractors in heavily-used areas of commercial buildings, schools, offices and homes. The UL-listed toggle switch is designed for use with a second 3-way switch (not included) in a 3-way circuit to provide light control from 2 locations.
Highlights
- Replaces any 15 Amp or 20 Amp 3-way switch
- Controls light(s) from 2 locations
- Two 3-way switches must be used in a 3-way circuit
- Back and side wired
- Back wired and side wired for installation
- Click here to shop all Leviton products
- Captain Code 2023 NEC Code Changes
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 4.188 in, W 1.625 in, D 1.688 in
Dimensions
Product Depth (in.) | 1.688 in |
|---|---|
Product Height (in.) | 4.188 in |
Product Width (in.) | 1.625 in |
Details
Amperage (A) | 20 A |
|---|---|
Circuit Connection | 3-Way |
Color Family | White |
Color/Finish | White |
Compatible Bulb Type | CFL, Halogen, Incandescent, LED |
Control Function | Light |
Control Style | Toggle |
Features | No Additional Features |
Finish Type | Matte |
Material | Nylon |
Package Quantity | 1 |
Returnable | 90-Day |
Voltage (V) | 277 V |
Wall Plate Included | No Wall Plate |
Warranty / Certifications
Manufacturer Warranty | 10-Year Limited |
|---|
Questions & Answers
how to wire a tree way switch
1 3 way switch would need to have the line hot / incoming power connected to the black terminal, then 1 traveler to each of the brass terminals. Other switch would connect the load wire (wire going to what the switch is controlling, ex: light) to the 2nd 3 way switch's black terminal, then 1 traveler to each of the brass terminals.
What is the max wattage for this switch?
It’s rated at 12 amps at 120 volts. Based on its rating you should be good up to 2400 watts.
120
The switch in the picture is labeled 15 Amp. So to get the wattage you multiply 15 times the voltage (probably 120 volt) 15 x 120 = 1,800 Watts. If it's rated 20 Amp it would be 20 x 120 Volts or 2,400 Watts. Never use the maximum rating the life of the device is shortened considerably. 80% or rated wattage is safe.
Does this switch have "On" and "Off" embossed on it?
No. This is a "three way" switch. The switch works with another of the same type so either of two switches, like top and bottom of the stairs, can turn the lights on or off. Either position can be on or off depending on position of the other switch.
Will the Leviton Model #R62-0CSB3-2WS 20 Amp 3-Way Commercial Toggle Switch accommodate AWG 10/3 copper wire?
No
No, it's only rated for 20 amps or less. Typically 10 gauge wire is for a higher amp rating.
You may, if you work really hard, manage to cram the bare wire under the clamp in the screws. These are 20 amp switches and designed for 14 or 12 gauge wire. The switch itself, as mentioned and clearly marked on the box and on the HD webpage, is designed for up to 20 amps. 10 gauge is designed for 30 amps. I think you would be well advised to either hire an electrician or at least buy a switch that is appropriate to the wire size.
Looking for 3way 20amp / 220v switches
Home depot carry's them or or a wholesale electrician supply vendor in your area. Internet search for your town.
Electrician supply in your town or on line
What store sells EATON 15A 120V AC ONLY 3 way switch
How to insert the wire, the holes look very small
they seemed to be to me also. I used the screw lugs.
I recommend using the screw terminal and avoiding the strip and poke option.
There are no "holes" to insert a wire into on this switch. You can feed it straight under the clamp and tighten down the screw (back-wire), Or you can side-wire loop the wire around the screw terminal itself and tighten down. Please refer to the included instructions or call 800-824-3005 for further assistance.
Cut and strip 1/2 inch from the end. Insert the wire behind the screw. Tighten down the screw and the wire will he secure. This switch will handle 12 or 14 gauge solid copper wire really easy.
Because I have 12 gauge wire throughout a new addition, my local hardware stores seem to have no 20 amp 3-way toggle switches I can use, because the insertion holes on the backs of the switches are only large enough for 14 gauge wire. Without this information in the Office Depot specifications, I can't tell whether these switches will work for me. Can you tell me whether 12 gauge wire will fit through the insertion holes on this switch? (12 gauge wire is heavy enough that bending it for use with the screw connectors on the sides of the switch is not practical.)
12AWG should not be a problem for back wiring.
Yes, 12 gauge will work easily with this switch. There are actually no insertion hole. The straight end of the wire lays under the brass seat used for the side mount attachment. Then you just tighten the screw, same as with the side mount. Hope this helps you.
12 or 14 gauge wire will work fine. It has to be solid copper
Viewing 1-8 of 9
Customer Reviews
4.7 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Great for electricians and contractors in commercial buildings, schools, offices, and homes needing reliable 3-way switching. | Ideal for controlling lights from two locations, this 3-way switch ensures convenient and versatile lighting control. | Great for homeowners looking for a simple switch, making light control easier and more efficient. | Built for heavy-duty use, this 20A locking toggle switch ensures tamper-proof operation in demanding environments. |
Smart Home Compatibility | |||
Multi-way Switching | |||
Voice Control | |||
Load Capacity | |||
20 A | 20 A | 20 A | 20 A |
Design and Aesthetics | |||
White, toggle switch | White finish, toggle style | White, rocker style | Ivory, toggle style, lockable |
Related Products
15 Amp 3-Way Toggle Switch, White (6-Pack) 1453-2WM
Leviton 15 Amp 3-Way Quiet Switches (6-Pack) are made of durable thermoplastic and are intended for demanding residential applications. They are quiet, reliable mechanical AC switches. They feature a combination of side wiring and Quick wire push-in wiring for fast installation. They are UL listed.

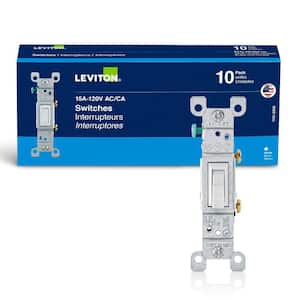

15 Amp Single-Pole Switch, White (10-Pack) 1451-2WM
