$17.99
  • Scribe notches from 25mm - 145mm allow for easy lumber ripping
  • 25mm cutout props pipe for easy cuts
  • High-visibility laser etched markings are easy to read
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

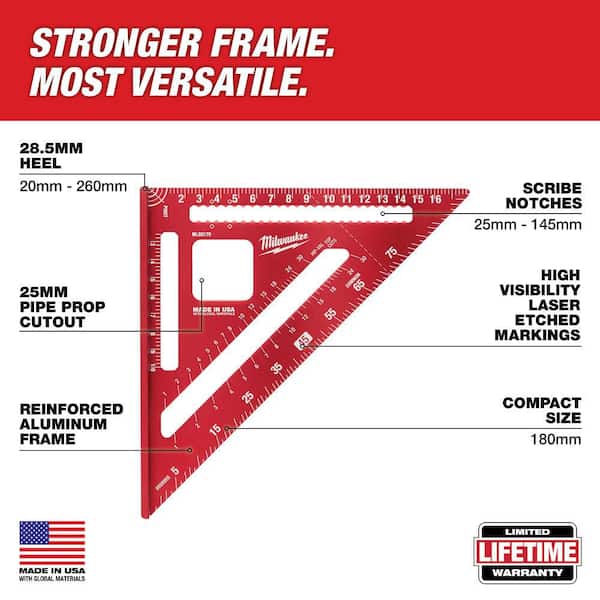

The Milwaukee 180 mm Metric Rafter Square has a stronger frame and is the most versatile rafter square. The Rafter Layout Square has scribe notches from 25 mm to 145 mm that enable users to easily and accurately rip lumber. A 25 mm cutout in the rafter square provides users with a way to prop pipe to cut it more easily on the job site. A reinforced frame provides users with more durability on the job site while high visibility laser etched markings make the square easier to read.

Highlights

  • Scribe notches from 25 mm to 145 mm allow for easy lumber ripping
  • 25 mm cutout props pipe for easy cuts
  • High-visibility laser etched markings are easy to read
  • 28.5 mm heel
  • Precision machined extruded aluminum
  • Includes: 180 mm metric rafter square
  • Shop All Milwaukee Tools
  • Return Policy

Product Information

Internet # 308644846

Model # MLSQ170

Store SKU # 1004111446

Store SO SKU #1004111446

Additional Resources

Shop All Milwaukee
From the Manufacturer

Specifications

Dimensions: H 7.25 in, W 1.125 in, D 7.25 in

Dimensions

Product Depth (in.)

7.25 in

Product Height (in.)

7.25 in

Product Width (in.)

1.125 in

Details

Angle capacity (degrees)

90

Condition

New

Features

Magnetic

Graduations / Resolution

1/8

Hand Tool Type

Square

Material

Steel

Package Quantity

1

Returnable

90-Day

Square Length

7 in.

Square Type

Rafter Square

Tools Product Type

Hand Tool

Warranty / Certifications

Manufacturer Warranty

Lifetime warranty

Questions & Answers

2Questions
caret
Q:Does this item have inches on one side and cm on the other?
by|Dec 19, 2022
1 Answer
Answer This Question

A:  Hi Hayden- The Rafter Layout Square has scribe notches from 25 mm to 145 mm that enable users to easily and accurately rip lumber.

by|Dec 23, 2022
    caret
    Q:Does this model come with the earth magnets?
    by|Jul 25, 2019
    4 Answers
    Answer This Question

    A:  No, not that I can find.

    by|Jul 25, 2019

    A:  There are no magnets with this square.

    by|Aug 2, 2020

    A:  No

    by|Jul 31, 2019
    1 found this answer helpful

    A:  Yes.

    by|Jan 22, 2021
      Showing 1-2 of 2

      Customer Reviews

      4.4 out of 5

      • 4.4 out of 22 reviews
      • 67% recommend this product
      Filter by:
      Showing 1-10 of 22 reviews
      Great little square to have on hand. Excellent quality, the construction is hard coated anodized ...
      Great little square to have on hand. Excellent quality, the construction is hard coated anodized aluminum so the graduations and lettering will not wear off and become unreadable with heavy use. All of the graduations, except for the degrees of angle, are in metric which now days sometimes come in handy as more and more things are becoming metric. The edges of the square are machined not cast for accuracy. It's compact size makes it easy to slip into your tool bag and that's just one less thing you have to carry around separately.
      by
      • Recommended
      This is a metric version of a rafter square. So make sure that is what you want before buying it...
      This is a metric version of a rafter square. So make sure that is what you want before buying it. The gradations are etched into the device so they won’t wear off after use. The color is red which provides a good contrast so the numbers are easier to read. It is made of a thick metal which should make for a long life.
      by
        • Recommended
        Basically, this has a lot of nice features, and looks extremely handsome. It’s very rugged alumin...
        Basically, this has a lot of nice features, and looks extremely handsome. It’s very rugged aluminum frame, with web thickness of 5 mm (approximately 0.2”). I definitely like the high visibility the white laser etched markings on the red background. Very attractive. If you never used a rafter square before, it’s definitely worth watching some of the instruction ideas on U-tube. Note that this is a metric unit, so the markings to scribe parallel cuts along a board are in metric. It has a square hole which they suggest you can use it to support a pipe. I think this is kind of a joke, but the hole makes a handy finger hole for carrying the tool. The "squareness" appears to be off by a couple thousands of an inch over the full length of the square. The 90 and 45 degree surfaces are machined, but what is unusual is that some of the machined surfaces have very smooth machining marks, but then right beside it, the machine markings are more course (see photo). I’m guessing their machining practices during their manufacturing processes is an accurate belt sander. These machining marks really doesn’t affect the function ability of the tool, and probably not even noticed by most workers. Certainly would not be a big enough issue to keep from buying it.
        by
        • Recommended
        2 found this review helpful
        As a DIY wood worker I am finding it more and more easier to work with the metric system, so gett...
        As a DIY wood worker I am finding it more and more easier to work with the metric system, so getting a good metric square was high on my “get new tool” list. Milwaukee has always been a name associated with quality tools. So When I got a chance to get this, I knew it was going to be good. The square is true, edges flat and markings are clear and not going anywhere soon (laser etched). I think for most people this square it going to exceed your needs.
        by
        • Recommended
        5 found this review helpful
        High quality machined outer edges and surfaces with rounded points so you don’t stab ya self. The detents for parallel scribing could be a little better but pree good for framing. Easy to read as well. I will buy this or style variations over and over. The price is low compared to the quality. I’m
        by
        • Verified Purchase
        Awesome to have a high quality square in metric. So...
        Awesome to have a high quality square in metric. So much easier than imperial!
        by
        • Verified Purchase
        Beautifully machined with highly visible markings
        Purchased for making furniture. The milled edges sit flush to wood surface allowing for smooth straight lines with a fine point pencil. The rounded corners will help avoid marring wood.
        by
          • Recommended
          by
          • Verified Purchase
          Awesome Square
          Easy to Read. Metric. Passes the Square Test - Draw a line, flip it, draw over that line and their is no deviation from the first line.
          by
            Rating provided by a verified purchaser...
            Rating provided by a verified purchaser
            by
            • Verified Purchase
            Showing 1-10 of 22 reviews
