- Very rope friendly with rounded edges ½ in. rigging line capacity
- Precision CNC machined aluminum sheaves with wide bend radii
- MBS: 22,480 lbs. (100kN) WLL: 4,496 lbs. (20 kN)
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

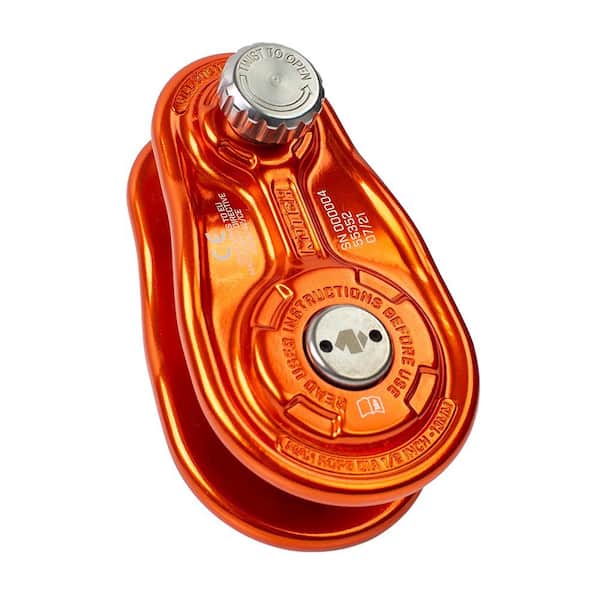

The Notch 1/in. Rigging Block is a small sized light-weight arborist block accepts working lines up to 1/in. (13 mm) diameter. Hot forged aluminum side plates with rope friendly rounded cheeks. Precision CNC machined aluminum sheaves with wide bend radii. Stainless steel axle. Low profile, secure, easy to-open captive screw pin lock. High wall, full diameter, improved anchor sling protection. Wide, concave upper sheave accepts 5/8 in. anchor slings. Flared side-plates reduce twisting in complex rigging scenarios. Upper sheave diameter: . 75 in. (19mm), lower sheave diameter: 1. 5 in. (38 mm). Working Load Limit: (WLL) 20 kN (4,496 lbs ), MBS: 100 kN 22,480 lbs
Highlights
- Hot forged aluminum side plates with rope friendly rounded cheeks and precision CNC machined aluminum sheaves with wide bend radii
- Small sized light-weight arborist block accepts working lines up to 1/in. (13mm) diameter
- Low profile, secure, easy-to-open captive screw pin lock with a high wall, a full diameter and improved anchor sling protection
- Wide concave upper sheave accepts 5/8 in. anchor slings while flared sideplates reduce twisting in complex rigging scenarios
- Working load limit: (WLL) 25 kN (5,620 lbs.)
- MBS: 100 kN (22,480 lbs.)
- Return Policy
Product Information
Specifications
Dimensions
Product Depth (in.) | 4.7 in |
|---|---|
Product Width (in.) | 2.7 in |
Details
Garden Tool Accessory Type | Other Accessory |
|---|---|
Material | Aluminum |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Limited lifetime warranty against defects in materials and workmanship |
|---|
