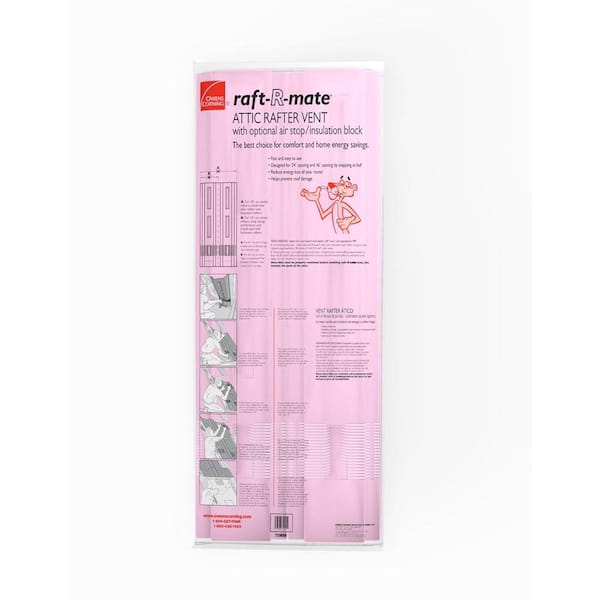

Raft-R-Mate 22-1/2 in. x 4 ft. Attic Insulation Rafter Baffle Proper Vents (10-Pieces)

$2184
  • Break resistant and lightweight rigidity for ease of installation
  • Will not rot, stays in place over time, and meets building code
  • Constant flow of fresh air from soffit vent to the ridge
Store
0 in stock
Text to Me
caret

Product Details

Owens Corning 's Raft-R-Mate attic vent is an extruded polystyrene foam vent designed to assure unrestricted airflow from the soffit to the ridge vent. Additionally, Raft-R-Mate attic vent has an optional bend down air stop or insulation block at the top plate of the wall in 1 easy-to-install product. The optional air stop or insulation block prevents loose fill insulation from filling the eave space during installation of cathedral ceiling or attic floors, by closing off the opening below the Raft-R-Mate attic vent to the soffit. The Raft-R-Mate attic vents install quick and easily and are sized to fit 24 in. 16 in. and 12 in. on center framing. Utilize in both new and retrofit construction.

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
caret

Specifications

caret

Questions & Answers

67Questions
caret
Q:What is the R value for these baffle vents?
by|Jan 19, 2023
4 Answers
Answer This Question

A:  Polystyrene has an R value of 1 per inch. I would give these about a .1 ish in themselves. What is harder to measure is the airflow and air gap benefit. I am using these in a cathedral ceiling to allow air flow from open eaves all the way to the ridge.

by|Jan 28, 2023

    A:  Hello Aaron, Owens Corning Raft-R-Mate is an extruded polystyrene foam vent designed to assure unrestricted airflow from the soffit to the ridge vent. It is not considered insulation and does not have an R-value. Thank you for your inquiry!

    by|Jan 20, 2023

      A:  Poly Styrene has an R Factor of 1 per inch of thickness. There is some R in these, but not much. I would give it overall .1 ish.

      by|Jan 28, 2023

        A:  Think of it this way, a really hot cup of tea of coffee in a Styrofoam or cardboard cup. Wrap another layer of each around them. Not much different! perhaps 0.001 R value. The baffles are meant to draw air unobstructed from the soffit vents outside to the attic allowing for a good flow. This of course presuming you have good ridge-gable end or roof vents!

        by|Jan 22, 2023
          caret
          Q:My rafters are 19.5? center to center. Can I use this product?
          by|Jan 3, 2023
          1 Answer
          Answer This Question

          A:  Hello West, the Raft-R-Mate is perforated in the middle so it can be split into two pieces. The half piece is 11.25" wide and will provide 11.15 square inches of net free vent area. Thank you for your inquiry!

          by|Jan 4, 2023
            caret
            Q:Can I used this for 16? on center
            by|Dec 26, 2022
            4 Answers
            Answer This Question

            A:  These are designed for either. The full piece fits 24” oc bays, but they can be separated down the center perforation if you need a smaller channel for 16 OC bays.

            by|Dec 29, 2022

              A:  No its for 24" center

              by|Dec 29, 2022

                A:  They’re made out of a styrofoam type material and can be cut with a utility knife.

                by|Dec 29, 2022

                  A:  Hello Raul, Due to its symmetrical design, Raft-R-Mate® attic vent can be split in half for 16-inch o.c. rafter spacing. Thank you for your inquiry!

                  by|Jan 3, 2023
                    caret
                    Q:I have a 2x6 rafter. If I use the baffles the space will be reduced. I?m thinking R19 won?t fit. Should I use the baffles and a R13 in that space so that it will fit ?
                    by|Oct 17, 2022
                    5 Answers
                    Answer This Question

                    A:  Hello Pete, installing the Raft-R-Mate into a 2x6 cavity will create a cavity that is approximately 4" thick. Compressing a R-19 into a a 4" cavity will reduce its R-value to approximately R-14. Owens Corning manufactures a R-15 at 3.5" that will not be compressed. Thank you for your inquiry!

                    by|Oct 18, 2022

                      A:  The baffles/spacers are typically used along the eaves to ensure the ventilation gap is maintained underneath the decking, but can be installed along the entire length of the decking. With 2x6" rafters, you will lose approximately 1" of space. R13 is designed to fill a 3 1/2" space, meaning there would be some uninsulated space if used in the 2x6 rafters with the baffles installed. Might be better to use R19, R21 or R23 insulation designed for 5 1/2" spaces and just let it compress slightly. You may lose a little R factor, but it would probably be better than having uninsulated space between the batts/blankets and baffles. Here is a reference chart on what is available from Owens Corning, https://dcpd6wotaa0mb.cloudfront.net/mdms/dms/Residential%20Insulation/10024567/10024567-PINK-Next-Gen-Fiberglas-Insulation-Product-Data-Sheet.pdf?v=1647850967000

                      by|Feb 4, 2023
                      1 found this answer helpful

                      A:  The baffles and R-13 are the way to go. Otherwise you might compress and collapse the baffles.

                      by|Oct 20, 2022

                        A:  The baffles are to keep blown insulation from blocking the bird blocks in the soffit vents so shouldn't affect R value of insulation used in the attic. If using batts you shouldn't have the air blockage issue.

                        by|Oct 20, 2022

                          A:  These baffles are about an inch thick. I used them with R19 in my rafters which are also 2x6, perfect fit.

                          by|Oct 20, 2022
