#1 Home Improvement Retailer

Internet #205880885

Model #R7284U1004

Store SKU #1001304203

$8223
  • Easy to set up with no additional tools required
  • Inbuilt LCD screen displays clear data to identify failure causes
  • Universal oil control usable with hydronic and forced air systems
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$8223

Product Overview

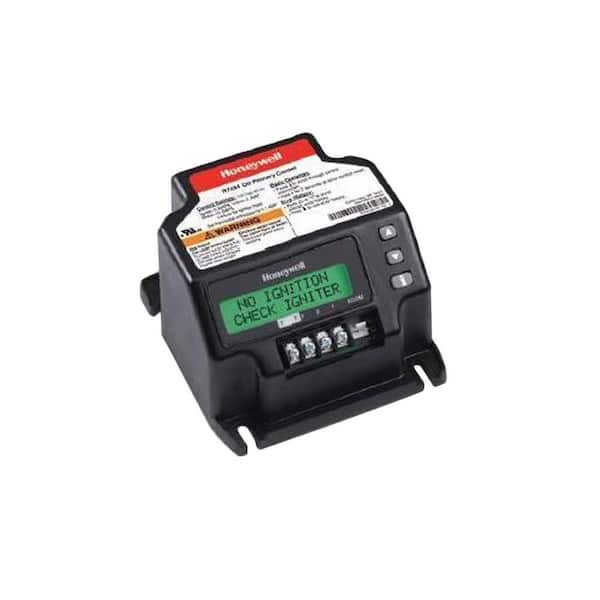

This Universal Electronic Oil Primary Control is a line voltage, safety rated, primary control for residential oil fired burners used in boilers, forced air furnaces and water heaters. It is used with a cad cell flame sensor, operates an oil burner and optional oil valve. Applicable for use with both hydronic and forced air systems.
  • Diagnostics with actionable information: igniter spark detection, cad cell high during run, cad cell adjustment/cleaning, flame proven late in trial and low voltage alarms
  • Error logging for deep dive troubleshooting when needed: logs last 10 errors, what the error was and how many cycles ago it occurred
  • Universal and configurable
  • No external tool required, points the technician towards the cause of failure
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
2.5
Product Height (in.)
4.125
Product Width (in.)
4.75

Details

Accessory Type
BOILER
Pack Size
1
Product Weight (lb.)
1.75
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 YEAR

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.2
    out of 18 reviews
  • 86% recommend this product
Filter by:
Showing 1-10 of 18 reviews
I just installed one of these to replace my Honeywell R8184G 4009, which it will replace and it w...
I just installed one of these to replace my Honeywell R8184G 4009, which it will replace and it works great. Was also cheaper than the simple electro-mechanical old one. Its universal so it will work with any cad cell setup. My only complaint was the directions that didnt give clear instructions for my particular setup. One noteworthy thing is that the limit connection must be connected to Line 1 on a direct thermostat setup like mine. The only other issue I had was that in the installer setup the setting for using "TT" seems to be reversed, no means yes and yes means no, so basically if you enable using the TT terminals it will run forever until it triggers thermal protection, but if you dont it works fine and listens to the thermostat. Someone should fix that or clarify it in the manual, the definitions of some of the settings are pretty lacking. A simple, this does this, and that does that, this connection is for this.... that type of thing would be great for more amateur installers and would probably help more than a few professionals. Besides the manual, its good! My furnace is up and running again and now I've got a neat real time OHM meter for my CAD sensor, this will enable me to monitor sensor degradation over time.
by Apollo
    • Recommended Product
    2 people found this helpful
    Easy setup works great wired right into my furnace...
    Easy setup works great wired right into my furnace
    by HomeDepotCustomer
    • Verified Purchase
    The cross reference that the showed online did not match...
    The cross reference that the showed online did not match the ones on box. Very little information to go on as far as replacing old red popup/push button unit. If anyone needs helo using on an oil fired forced air unit, I figure the wiring out.
    by HK
    • Verified Purchase
    Easy to wire up and great feature being able to...
    Easy to wire up and great feature being able to see the parameters and lock outs.
    by HomeDepotCustomer
    • Verified Purchase
    Perfect upgrade from the original .
    Perfect upgrade from the original .
    by Milzak
    • Verified Purchase
    • Recommended Product
    Rating provided by a verified purchaser...
    Rating provided by a verified purchaser
    by HomeDepotCustomer
    • Verified Purchase
    Installed easily replacing Becket control....
    Installed easily replacing Becket control.
    by ElectricChainsawKiwi
    • Verified Purchase
    Fit perfectly and came with jumper wires to make connections....
    Fit perfectly and came with jumper wires to make connections.
    by Sparky
    • Verified Purchase
    What a pain in the butt. I finally got this thing wired properly and then it went into a hard loc...
    What a pain in the butt. I finally got this thing wired properly and then it went into a hard lockout mode. Troubleshooting guide sucks. I ended up returning it.
    by disappopinted
    • Verified Purchase
    Great if you want some clues as to why your furnace isn't acting as it should.
    Great if you want some clues as to why your furnace isn't acting as it should.
    by totjason
    • Verified Purchase
    • Recommended Product
