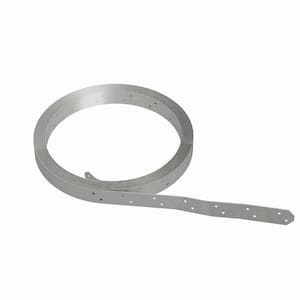

CS 25 ft. 16-Gauge Galvanized Coiled Strap

$63.07
Apply Now
Pay $38.07 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The CS is a continuous utility strap designed to resist tension and uplift loads. This coiled strap can be cut to length on the job site and used in a single 2x stud or post application. The CS is ideal for many applications including resisting uplift in a floor-to-floor application and also resisting tension in a horizontal application.

Highlights

  • Used for roof uplift and shear wall overturning resistance
  • A cost-effective alternative to pre-cut straps
  • Sized to fit nominal 2x lumber
  • Packaged in lightweight cartons
  • Length: 25-ft
  • Made from 16-Gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 8d or 10d common nails
  • Shop all Simpson Strong-Tie here.
  • Return Policy

Product Information

Internet # 100375320

Model # CS16-R

Store SKU # 250078

Store SO SKU #592854

Specifications

Dimensions

Product Depth (in.)

10.44 in

Product Length (in.)

10.4375 in

Product Width (in.)

1.25 in

Details

Color Family

Silver

Connector Finish

G90 Galvanized

Connector recommendation

Coiled Strap

Fasteners Included

Fasteners Not Included

Features

No Additional Features

Gauge

16

Material

Steel

Number of Pieces

1

Package Quantity

1

Product Weight (lb.)

6.5 lb

Returnable

90-Day

Staggered Nail Pattern

Not Staggered

Strap Type

Coiled

Warranty / Certifications

Manufacturer Warranty

Limited Warranty

Questions & Answers

14Questions
caret
Q:The structural engineer wants this over the roof sheathing. Would this poke holes in the roof underlayment?
by|Mar 2, 2023
1 Answer
Answer This Question

A:  ​Hi Anon, thank you for your message. This Ricardo with Simpson Strong-Tie. In regard to your inquiry, it would depend how it's being used and what you are fastening over, but using the minimum 2.5" nail required over standard sheathing would penetrate through the roof underlayment. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​

by|Mar 2, 2023
    caret
    Q:Can this be used to protect 15 foot of 14/2 electrical wires that are routed into the subfloor ?
    by|Jan 25, 2022
    4 Answers
    Answer This Question

    A:  Electrical codes vary by jurisdiction, contact a local electrician or electrical inspector.

    by|Jan 26, 2022

      A:  No. You need electrical nail plates for that

      by|Jan 28, 2022

        A:  That would not do well.  Use metallic conduit instead.

        by|Jan 26, 2022

          A:  ​Hi Dick, thank you for your message. We want to make sure we address your question regarding protection for electrical wires. CS Coiled Strap is not intended to be used as a nail stop, we do offer our NS Nail Stoppers but they are not long enough to cover a 15' section. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​ -Stacy

          by|Jan 26, 2022
            caret
            Q:If I wish to use simpson screws to attach which one is the right diameter, a simpson #9 or simpson #10 screw in this hole size?
            by|Oct 6, 2021
            1 Answer
            Answer This Question

            A:  Hi Bubba, thank you for your message. We want to make sure we address your question regarding SD Connector Screws for CS Coiled Strap. The #9 x 1-1/2" SD Connector Screw can be used as the replacement for the .148" x 2-1/2" nail for the CS Strap. If you can installing the CS Strap over sheathing, you will want to use the #9 x 2-1/2" long screw instead. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​ -Stacy

            by|Oct 6, 2021
              caret
              Q:Are 8d 2.5” nails used on studs and top/bottom plates when using this as shear wall bracing on a 2x4 load bearing / exterior wall?
              by|Dec 23, 2020
              1 Answer
              Answer This Question

              A:  CS16 needs to be installed with 8d(0.131")x2 1/2" common wire nails. However, we do not have information on its performance as a wall bracing mechanism. You would need to refer to the current Building Code for prescribed wall bracing solutions.

              by|Dec 29, 2020
                Showing 1-4 of 14

                Customer Reviews

                4.3 out of 5

                • 4.3 out of 53 reviews
                • 100% recommend this product
                Filter by:
                Showing 1-10 of 53 reviews
                As advertised. packaged nicely.
                by
                • Verified Purchase
                I wish there were larger holes at regular intervals for screws, when it is necessary to tie one e...
                I wish there were larger holes at regular intervals for screws, when it is necessary to tie one end to a concrete foundation.
                by
                • Verified Purchase
                • Recommended
                President of BAG Remodelers Inc.
                Strap was easy to install. I use a nail gun that is made just for this product. I use the straps on all my room add-ons
                by
                • Pro
                • Recommended
                This was a really strong and thick gauge of strapping. Way overkill for my project and ended up returning it. Return was easy and quick.
                by
                • Verified Purchase
                The cost is up over 25% in the last three years but this material is great for building custom brackets. There are much more holes for screws than the material we purchased years ago. The 14 gauge is almost $78 while this material is 43 for 16 gauge. 16 gauge works well for the uses. We have such as building fence brackets or rigging scaffold to walls and many other uses just cut and bend.
                by
                • Verified Purchase
                A little difficult to work with due to thickness.
                by
                • Verified Purchase
                by
                • Verified Purchase
                Rating was just OK. I had difficulty finding the product due to the shelf being so disorganized.
                by
                Response from Simpson Strong-TieOct 11, 2023
                ​Hi 2745HammerMan, this is Ricardo from Simpson Strong-Tie. We apologize that you had to go through this. Please call Customer Service at The Home Depot at 1-800-466-3337 so that they can resolve this matter. SimpsonStrongTie
                • Verified Purchase
                by
                • Verified Purchase
                Good quality strap Heavy duty I used it on a deck
                by
                • Verified Purchase
