Internet #202519116

Model # 20497450

Store SKU #188804

0032886874499

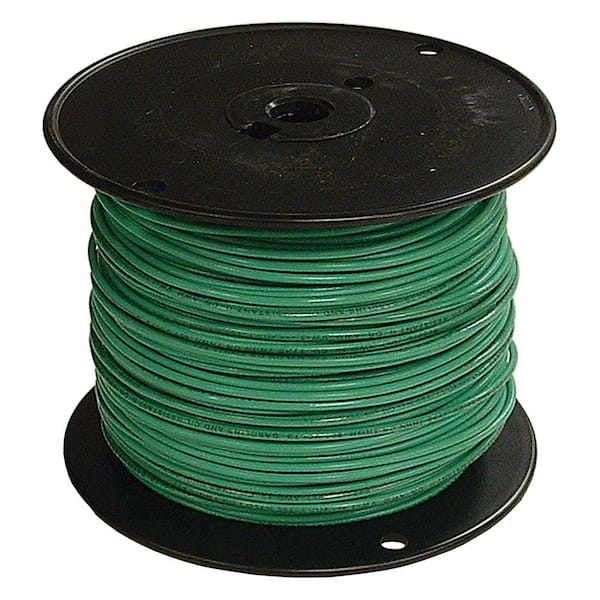

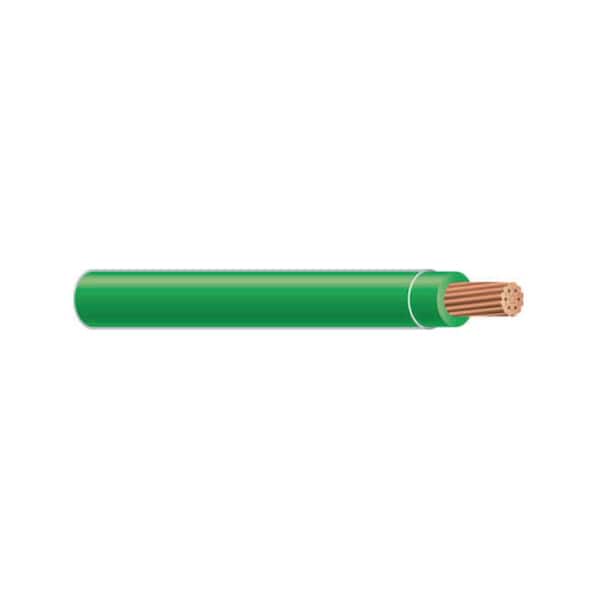

100 ft. 6 Green Stranded CU SIMpull THHN Wire

  • #6 AWG commercial wiring for outlets, switches and other loads
  • 6 Gauge THHN wire contains Copper (CU) Conductors
  • #6 THHN comes stranded with variety of colors and lengths
Covers 100 ft.  (61 ¢  /ft.)
$61.47
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • #6 AWG commercial wiring for outlets, switches and other loads
  • 6 Gauge THHN wire contains Copper (CU) Conductors
  • #6 THHN comes stranded with variety of colors and lengths
Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600-Volt. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.
  • These conductors have multiple ratings
  • THHN or T90 nylon-dry locations not to exceed 90°C
  • THWN-2 - wet or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil
  • MTW- wet locations or when exposed to oil at temperatures not to exceed 60°C or dry locations not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
  • AWM - dry locations not to exceed 105°C only when rated and used as appliance wiring material
  • Made with soft drawn copper
  • Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding
  • Note: product may vary by store

Product Overview

  • #6 AWG commercial wiring for outlets, switches and other loads
  • 6 Gauge THHN wire contains Copper (CU) Conductors
  • #6 THHN comes stranded with variety of colors and lengths
Model #: 20497450
Sku #: 188804
Internet #: 202519116

Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600-Volt. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.

  • These conductors have multiple ratings
  • THHN or T90 nylon-dry locations not to exceed 90°C
  • THWN-2 - wet or dry locations not to exceed 90°C or locations not to exceed 75°C when exposed to oil
  • MTW- wet locations or when exposed to oil at temperatures not to exceed 60°C or dry locations not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
  • AWM - dry locations not to exceed 105°C only when rated and used as appliance wiring material
  • Made with soft drawn copper
  • Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Southwire Southwire Southwire Southwire
Name 50 ft. 6 Green Stranded CU SIMpull THHN Wire 100 ft. 6 Green Stranded CU SIMpull THHN Wire 100 ft. 6 Black Stranded CU SIMpull THHN Wire 50 ft. 6/3 Stranded Romex SIMpull CU NM-B W/G Wire
Price
$36.37
$61.47
$66.47
$140.00
Ratings (77) (77) (77) (223)
Total Wire Length (ft.) 50 100 100 50
Stranded or Solid Stranded Stranded Stranded Stranded
Max Amps Not Specified Not Specified 55 55
Wire Cut Type Pre-Cut Length Pre-Cut Length Pre-Cut Length Pre-Cut Length
Cable/Wire Type THHN THHN THHN NM-B
Number of Conductors 1 1 1 3
View Product View Product View Product View Product

Specifications

Dimensions

Product Height (in.)
2.5 in
Product Width (in.)
9 in
Total Wire Length (ft.)
100

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
6
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
Green
Max Amps
Not Specified
Number of Conductors
1
Returnable
90-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
NA

Specifications

Dimensions

Product Height (in.)
2.5 in
Product Width (in.)
9 in
Total Wire Length (ft.)
100

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
6
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
Green
Max Amps
Not Specified
Number of Conductors
1
Returnable
90-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
NA

Questions & Answers

do they sell this item by the foot

do they sell this item by the foot
Asked by: jr
Yes
Answered by: Rado
Date published: 2019-04-02

Can I use this wire with a 70 amp breaker

It appears that this wire is good for 75 amps when all connection components are rated at 90 degrees and I do not have more than three current carrying conductors in my conduit. Is that correct?
Asked by: frdohmen
It depends on the temp rating of this particular cable, 75c or 90c, it's not stated. Also how and where it is installed and distance. 80% derate is not a code as such.
Answered by: Kiwifornian
Date published: 2020-01-22

can you put this wire in metal conduit

Wiring a hot tube approximately 125 ft to panel. Hot tube rated 240v 40 amps. I believe code calls for 6 gauge in this situation. I want to run the wire along the soffits in metal conduit is this possible?
Asked by: shopguy
You want #6 wire, not 6 AWG...
Answered by: nothanks
Date published: 2019-02-27

Can this be used as an outdoor grounding wire to a grounding rod? (Solar panels to grounding rod)

Can this be used as an outdoor grounding wire to a grounding rod? (Solar panels to grounding rod)
Asked by: Phil
yes, it can be used for 100 amp servers as an outdoor grounding wire to a grounding rod.
Answered by: Jianfeng
Date published: 2018-09-29
