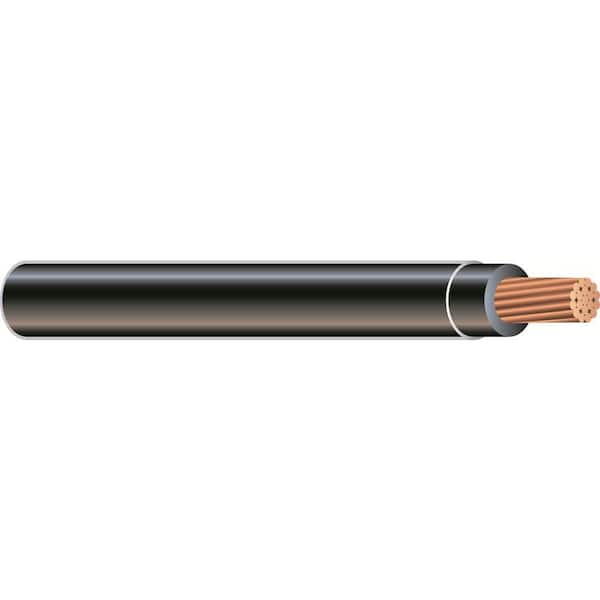

250 ft. 2/0 Black Stranded CU SIMpull THHN Wire

  • 2/0 AWG commercial wiring for outlets, switches and other loads
  • 2/0 Gauge THHN wire contains Copper (CU) Conductors
  • 2/0 THHN comes stranded with variety of colors and lengths
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Southwire SIMpull THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600-Volt. SIMpull THHN conductors are designed to be used without application of pulling lubricant.
  • THWN-2- can be used in wet or dry locations
  • Made with annealed (soft) copper, compressed
  • Insulation is high heat and moisture resistant polyvinyl chloride (PVC)
  • Jacket is abrasion, moisture, gasoline and oil resistant nylon
  • These conductors have multiple ratings, THHN, THWN and AWM
  • UL Listed, CSA certified, RoHS compliant

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Building Wires

current product
250 ft. 2/0 Black Stranded CU SIMpull THHN Wire
500 ft. 2 Black Stranded CU SIMpull THHN Wire500 ft. 2/0 Black Stranded XHHW Wire500 ft. 2/0 Black Stranded CU SIMpull THHN Wire
BrandSouthwireSouthwireSouthwireSouthwire
Name250 ft. 2/0 Black Stranded CU SIMpull THHN Wire500 ft. 2 Black Stranded CU SIMpull THHN Wire500 ft. 2/0 Black Stranded XHHW Wire500 ft. 2/0 Black Stranded CU SIMpull THHN Wire
Price
Ratings
(15)
(22)
(3)
(15)
Number of Conductors1111
Total Wire Length (ft.)250500500500
Cable/Wire TypeTHHNTHHNXHHWTHHN
Stranded or SolidStrandedStrandedStrandedStranded
Max Amps195Not Specified170Not Specified
FeaturesHeat Resistant,UV Resistant,WaterproofHeat Resistant,UV Resistant,WaterproofHeat Resistant,UV Resistant,WaterproofHeat Resistant,UV Resistant,Waterproof
GroundedNon-GroundedNon-GroundedNon-GroundedNon-Grounded
Conductor MaterialCopperCopperCopperCopper
Conductor Gauge 2/0
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Height (in.)
16
Product Width (in.)
15.75
Total Wire Length (ft.)
250

Details

Cable/Wire Type
THHN
Commercial/Residential
Commercial,Residential
Conductor Material
Copper
Electrical Product Type
Single Conductor Electrical Wire
Features
Heat Resistant,UV Resistant,Waterproof
Gauge
2
Grounded
Non-Grounded
Indoor/Outdoor
Indoor,Outdoor
Jacket Color
Black
Max Amps
195
Number of Conductors
1
Returnable
90-Day
Stranded or Solid
Stranded
Wet Location Use
Dry,Wet
Wire Cut Type
Pre-Cut Length

Warranty / Certifications

Certifications and Listings
CSA Certified,UL Listed
Manufacturer Warranty
N/A

Questions & Answers

20Questions11Answers

this is the wire I need to run from the meterloop to the breaker box?

Asked by tomballray July 21, 2020
1
Answer

We are happy to help! Please consult with our team at cabletechsupport@southwire.com for further assistance.

what size neutral wire for a 200 amp sub panel fed underground?

Asked by KJ March 18, 2020
1
Answer

Please consult with cabletechsupport@southwire.com for further assistance.

Is this rated for outdoor use? THWN?

Asked by Paul March 5, 2019
1
Answer

THHN carries a THWN-2 rating on sizes 8 gauge and larger, which is moisture resistant. However, THHN must be ran through a watertight conduit for outdoor use. It cannot be used for direct burial. If being used as THWN-2, in wet or dry locations operating temperatures cannot exceed 90 ° or 75° when exposed to oil. If being used as THWN, wet locations cannot exceed 75° and cannot exceed 90° in dry locations.

What gauge do i need for neutral wire? For a 200 amp service

Asked by E1497 December 4, 2018
1
Answer

Please consult your local electrician. The above advice is based upon the current edition of the National Electric Code (NEC). Free access to the latest version of the NEC is available online at www.nfpa.org/freeaccess. The NEC and local building codes regulate the types of wire and cable that can be used in specific electrical applications, as well as the manner of installation. Check your local building codes before you start any wiring and cable electrical project and be sure to obtain required permits. When your work is complete, always have it inspected for compliance with local codes to ensure that it has been safely installed.

What gauge do I need for a ground wire for 200 amp service...

Asked by Chris June 10, 2018
2
Answers

cooper # 6 and aluminum # 4

Is this conductor dual rated?

Asked by Jallen June 10, 2018
1
Answer

Yes, this wire is dual rated THHN/THWN.

Can I return the left over wire?

Asked by Cbg April 17, 2018
1
Answer

If it were up to me the answer would be ,"NO!" However, it isn't up to me. I'd suggest you contact the Home Depot store where you want to return it and ask the store manager.

Is this wire acceptable for running a Lincoln AC 225 arc welder on?

Asked by Jon September 20, 2017
1
Answer

The Lincoln 225 amp arc welders I remember only required a maximum input circuit of 50 amps at 240 volts, a requirement which you can easily meet with a #6 AWG circuit. In a residential installation I would use 6-2 NM-B cable (aka Romex). Check the data plate on the welder for input current requirements. I suspect you are looking at the 225 amp rating which is the maximum rated output current.

Need to run power from main down 275 ft to a shed for lights,power plugs, and outside yard lights.

Asked by Juarez July 17, 2017
1
Answer

First you need to do a load calculation to determine how many amps the feeder must provide. Then you need to do a voltage drop calculation to determine what size feeder you need to keep voltage drop under 5%. Voltage drop calculators are available online and require you provide length of feeder, wire size and calculated load. Once you install a subpanel, following all subpanel rules, you can used 12-2 NM-B cable as long as the shed is weathertight.

i need 80' of this

Asked by joe June 4, 2017
1
Answer

You can purchase this online by-the-foot using OMSID 204632782.
