- #6 AWG residential wiring for outlets, switches and other loads
- Copper (CU) Conductors

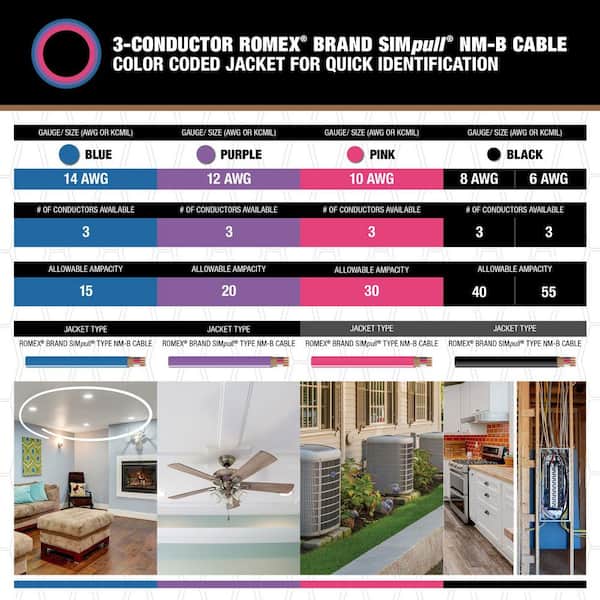

- 6 gauge has Black color-coded jacket for size identification
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
Wire residential indoor branch circuits for outlets, switches and other loads with Southwire Romex SIMpull 50 ft. Yellow 12-3-Gauge Type NM-B Cable. SlikQuik jacket allows for 50% reduction in pulling force for easier installation. NM has a heat capacity of 90˚C.
Highlights
- Brand received (Cerrowire or Southwire) varies by zip code
- Placed where space is available and free of excess moisture and dampness
- May be used for both exposed and concealed work in normally dry locations
- May be run in air voids of masonry block or tile walls not subject to excessive moisture
- 600-Volt maximum
- Conductors are annealed (soft) copper
- UL listed and CSA certified
- Click here to shop for more Southwire products
- Note: product may vary by store
- Click to learn the factors you must consider when wiring your home
- Return Policy
Product Information
Specifications
Total Wire Length (ft.): 500 ft
Dimensions
Total Wire Length (ft.) | 500 ft |
|---|
Details
Commercial/Residential | Residential |
|---|---|
Conductor Material | Copper |
Features | Heat Resistant, Jacketed |
Gauge | 6 |
Grounded | Grounded |
Indoor/Outdoor | Indoor |
Jacket Color | Black |
Max Amps | 55 |
Number of Conductors | 3 |
Returnable | 90-Day |
Stranded or Solid | Stranded |
Voltage (v) | 600v |
Wet Location Use | Dry |
Wire Cut Type | Pre-Cut Length |
Warranty / Certifications
Certifications and Listings | UL Listed |
|---|
Questions & Answers
Is this wire rated for 1 jigawatt ?
Hello! Your inquiry is best handled by our specialized staff. Please email us at consumersupport@southwire.com, and we'll be happy to assist.
what is the correct wire to use to run a short distance 6' from a breaker box 50 amp breaker to a 50 amp inlet box.
#6 THHN
What size PVC would 6/3 conduit fit inside of
Hi there, and thanks for reaching out! We'd like to hear more about your question, so that we can ensure that we're providing the most accurate answer. Please reach out to our dedicated team at consumersupport@southwire.com and we'll be happy to help.
Based on NEC standards, using 3/4" Schedule 40 PVC conduit for 6-3 NM-B cable is not allowed for most installations, as the cable's oval shape exceeds the 40% fill limit. A minimum 1-inch conduit is required for 6-3 NM-B. While #6 THHN/THWN conductors fit
Can u direct bury this cable
Hello, and thank you for your question. The 125 ft. 6/3 Black Stranded Romex SIMpull CU NM-B W/G Wire is suitable exclusively for above-ground installation within dry environments, and is not rated for direct bury. If you have any additional questions or feedback, please reach out to us at consumersupport@southwire.com.
6-3 nm-b is not permitted in a damp location [outside] and is not suitable for direct burial. Look for 6-3 UF or #6 THWN in conduit for direct burial applications.
What size ground is in this 6/3 and is the ground size rated for 50 amps
Hello! Your inquiry is best handled by our specialized staff. Please email us at consumersupport@southwire.com, and we'll be happy to assist.
The ground wire in 6/3 w/G nm-b is a # 10 bare copper, which is the standard, NEC-compliant ground wire size for a 50-amp circuit. You can confirm this as it is printed on the cable.
Can I use for range
Yes- this is normal for a range with a 50 amp double pole breaker.
Hello, thank you for your question. This answer will require a more technical response. Please reach out to our technical team at cableteachsupport@southwire.com for a detailed explanation of your question.
Is this good for underground in a conduit
No. Conduit is a wet location. Not rated for wet locations
No. No.
Is this good for underground in a conduit
No: 6-3 NM-B is not permitted in damp locations.
