#1 Home Improvement Retailer

Internet #100126421

Model #HOM4RK2LA

Store SKU #658312

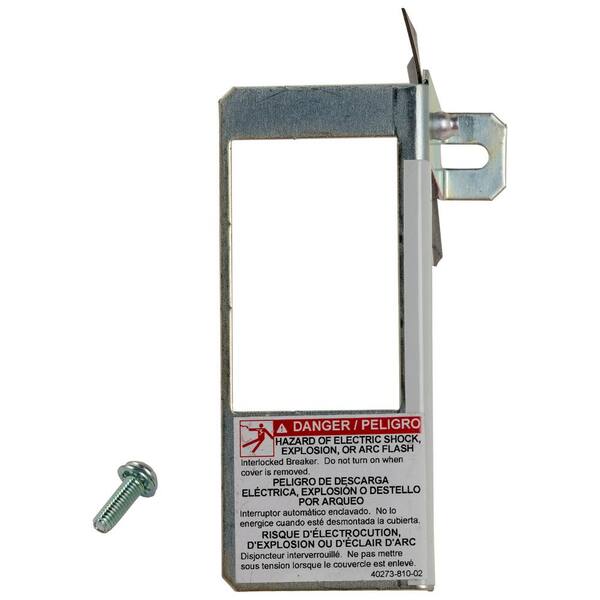

Homeline Right Side Main Load Center Breaker Retaining Kit

  • Retains a back-fed breaker to secure another to panel interior
  • Compatible with Square D Homeline electrical panels
  • UL listed and ANSI Certified
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The Square D Back-Fed Main Circuit Breaker Retaining Kits provide a cost-effective way to back feed a two-pole 10-125 Amp circuit breaker on 8-40 circuit HomeLine convertible main load centers. This kit mounts on the right side of HOMELINE single-phase convertible main load center Series S01 and S02. No one does more with electricity than Square D by Schneider Electric.
  • This retaining kit secures a circuit breaker to a load center interior when used as a back-fed main
  • Retain one 2-pole, 10 to125 Ampere Homeline circuit breaker, to allow lower amperage mains ratings on single-phase convertible main load centers
  • Provides a wider range of options for lower ampacity main breakers
  • UL Listed Accessory Kit

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
2.8
Product Height (in.)
2.6
Product Width (in.)
4.5

Details

Electrical Product Type
Retaining Kits
Mounting Type
Bolt On
Product Weight (lb.)
0.16
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
lifetime; call (888)778 2733 for further details

Questions & Answers

1Questions1Answers

Will this fit on a HOM270CP breaker in a HOM1224L125PGCVP panel?

Asked by QG November 19, 2018
1
Answer

Yes this retaining kit will fit this load center. The HOM4RK2LA retaining kit secures one Homeline 2-pole branch circuit breaker to the Right side of the interior when used as a Back-Fed Main Breaker. This retaining kit can ONLY be used for the Homeline, 100-125amp, Convertible main load centers, Series S01 and S02 and Plug-On Neutral Series S04 load centers. . The retaining bracket will mount over the face of the back-fed branch breaker and get secured using the single interior mounting screw included with the kit. Regards, Customer care

Customer Reviews

  • 3
    out of 2 reviews
  • 50% recommend this product
Filter by:
Showing 1-2 of 2 reviews
Great Fit
Worked as described. It fit perfect. Allows to use a back feed for the power source for the panel. All necessary hardware was included. Easier to install than read directions.
by mikec
Which side?
The product name says 'left side'; the product description says 'right side.' This works great if you don't know the difference.
by klo1
Response from THD Customer ServiceSep 4, 2013
Hi Kl01, I apologize for your experience with this product. I did reach out to the MFG and here is their response to you. We understand your concern about the incorrect information posted on our page. The product description has been corrected and our webpage has been updated. Should you in the future have any thing else for us, we welcome your feedback. We are sorry for the inconvenience and appreciate your business. Thank you.
1 person found this helpful
Showing 1-2 of 2 reviews
