Model #90636

Vertical Stainless Steel Cable Railing Kit for 36 in. High Railings

  • Constructed with durable stainless steel components
  • Perfectly suited for new and existing wood decks
  • Easy to install using basic tools and included instructions
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

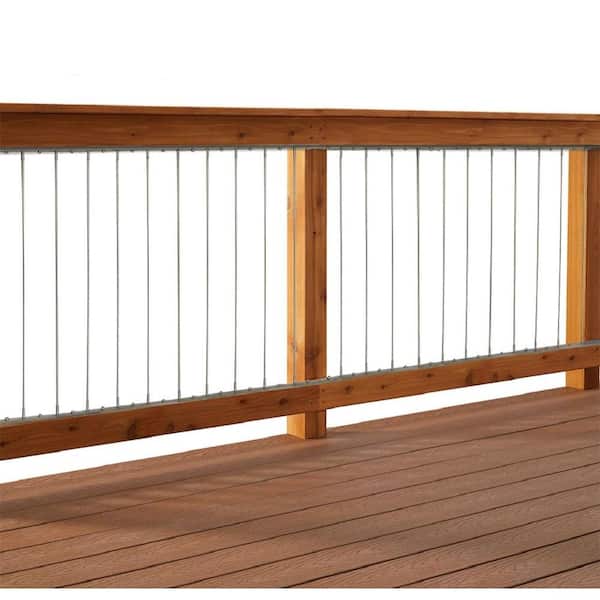

Insta-Rail Vertical Cable Railing systems are an affordable and convenient way to upgrade your current deck railing. If you are looking for high quality deck remodeling ideas, the Insta-Rail Cable Railing Kit is the perfect solution. Made with premium stainless steel 1/8 inch diameter cables each Insta-Rail kit will complete a railing area 72 inches long and is designed for railings 36 inches in total height. Insta-Rail Kits can be combined or cut down to fit any railing length necessary. Insta-Rail can be installed on both wood and composite decking materials to replace existing pickets or spindles. Comprised of grade 304 stainless steel, not suited for ocean spray contact. Bending tool is provided for use down stairs
  • Designed to work on deck railing that is 36 in overall height
  • Can be combined or cut down to fit any length run
  • Requires 24-½ in opening between top and bottom rails
  • Each kit covers six linear feet (72 in)
  • Cable balusters are 22-1/4 in long and 1/8 in diameter
  • 4 in spacing between vertical cables
  • 304 stainless steel components - not recommended for direct salt water spray situations
  • Installation is DIY friendly and can be completed with common, basic tools
  • Dependent on installation method and condition of existing framing, slight flex in cable may result in code failure, for 100% code compliance we recommend using our Insta-Rail Tube railing kit

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Cable Railings

Top Rated50 ft. Stainless Steel Cable Assembly Kit for Cable Railing System
current product
Best SellerVertical Stainless Steel Cable Railing Kit for 36 in. High Railings
36 in. H x 72 in. W Insta Tube Vertical Stainless Steel Tube In-Fill Kit for Railings42 in. H x 72 in. W Insta Tube Vertical Stainless Steel Tube In-Fill Kit for Deck Railings
Brand Insta-RailInsta-Rail
Name50 ft. Stainless Steel Cable Assembly Kit for Cable Railing SystemVertical Stainless Steel Cable Railing Kit for 36 in. High Railings36 in. H x 72 in. W Insta Tube Vertical Stainless Steel Tube In-Fill Kit for Railings42 in. H x 72 in. W Insta Tube Vertical Stainless Steel Tube In-Fill Kit for Deck Railings
Price
Ratings
(85)
(76)
(24)
(20)
MaterialStainless SteelStainless Steel
Railing TypeRailing KitRailing KitRailing KitRailing Kit
IncludesNuts and boltsBalusters,Brackets,Hardware,No Additional Items IncludedBalusters,Brackets,Hardware,RailsBalusters,Brackets,Hardware,Rails
Product Length (ft.)50 ft6 ft
Stair Part TypeKitBalusterBalusterBaluster
Interior/ExteriorExterior,InteriorExterior,InteriorExterior,InteriorExterior,Interior
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Length (ft.)
6 ft
Product Thickness (in.)
1/8

Details

Cable Rail Application
Wood Frames
Cable Rail Type
Assembly Cable Kits
Includes
Balusters,Brackets,Hardware,No Additional Items Included
Interior/Exterior
Exterior,Interior
Material
Stainless Steel
Product Weight (lb.)
6
Railing Type
Railing Kit
Returnable
90-Day
Stair Part Type
Baluster

Warranty / Certifications

Manufacturer Warranty
1 Year

Questions & Answers

92Questions17Answers

i just need to buy the hardware for the cable that works with wood rails

Asked by CALVIN May 3, 2021
1
Answer

Please contact Dolle USA directly for any individual spare part needs and we would be happy to assist

I previously ordered this produce for a 24 1/2" railing. Is that style still available?

Asked by Chris January 8, 2021
2
Answers

Hello Chris - Our 36" kits are designed to be installed into an infill area measuring 24-1/2" tall. The 36" measurement is in reference to the overall handrail height of your deck railing.

Is it possible to purchase top and bottom rails separately? Have left over pickets with lots of...

Asked by BB December 8, 2020
2
Answers

Hello BB - please contact Dolle USA at info@dolleusa.com or 855.365.5387 for any individual spare part needs.

The opening between the top and bottom rails is 25 1/4 - 25 1/2. Will the cables be too short or...

Asked by Beth July 22, 2020
2
Answers

The cables will not be too short but maybe too long. I went with 25 5/8" and had no problem. There are springs in the cable ends and need to pull a little to make them tight. That was much better than being too loose.

Can your post be 6' apart or does it have to be in 3' sections?

Asked by Joann July 7, 2020
1
Answer

Ultimately posts spacing is up to the customer's preference however, the manufacturer's guidelines for Prova does recommend 39" post spacing to maintain maximum structural integrity and code compliance.

Do you offer a Horizontal Stainless Steel Cable kit?

Asked by bsac June 28, 2020
2
Answers

Very nice looking with redwood!!

can you mount the railing on a concrete porch

Asked by chef June 28, 2020
2
Answers

I would not do that because of installing the metal strips. I'm not sure how to hold it in the concrete. If you first secure at least a 1" board to the concrete first you might be able to use this.

can a 50 pound dog get through the rails?

Asked by Medic29 May 22, 2020
2
Answers

Depends on how tight you make the balusters.

How wide are the rail strips? Would I need 1x4 railings or 2x4" to attach the metal strips?

Asked by Dan May 17, 2020
2
Answers

The Insta-Rail stainless steel channels measure 1" wide

Did you use these and pass or fail inspection that required <=4" spacing?

Asked by Fleen May 2, 2020
1
Answer

Insta-Rail cable spacing is 4" center on center. This leaves little margin for error and can result in code failures for cable kits. For projects requiring inspection we recommend going with our Insta-Rail tube kits for 100% code compliance.

Vertical Stainless Steel Cable Railing Kit for 36 in. High Railings - page 2

Customer Reviews

  • 4.3
    out of 76 reviews
  • 70% recommend this product
Filter by:
Showing 1-10 of 76 reviews
Fairly easy to install. Looks great. We have a 60 foot long deck so it took a little while but w...
Fairly easy to install. Looks great. We have a 60 foot long deck so it took a little while but worth it
by Jjt
Response from DolleJun 3, 2020
Thank you for the kind review we are happy you are satisfied with the Prova system
2 people found this helpful
Loved the way it looks.
Loved the way it looks.
by Happycamper
2 people found this helpful
Straight forward install. Doesn’t allow to be tightened to be in compliance to code; cables shoul...
Straight forward install. Doesn’t allow to be tightened to be in compliance to code; cables should be closer together or the tracks should be more stout to allow it to tighten more. Looks good and does the job; but would not pass the 4” sphere rule.
by girdwood
8 people found this helpful
Love it easy to install
Love it easy to install
by Cccri
Well designed and looks great. I don't agree with other reviewers that the spacing should be 30 ...
Well designed and looks great. I don't agree with other reviewers that the spacing should be 30 3/4. I did 30 1/2 as the instructions say and it is just right. I recommend using a spacer stick to get it just right though. You will have some odd size spaces left at either end beside your posts - getting these equal takes careful planning and cutting of the steel rails. Hold the wire as you tighten the threaded barrel nuts, or else one end will unscrew while you tighten the other one. The screws are quite fat - at least #10 - so I pre-drilled and had no problem with stripping screw heads. The one big issue is that I'm pretty sure it won't meet code if you have a picky inspector. The wires are spaced 4 inches on center, which means they will deflect mid span to be worse. If only the manufacturer had spaced them at about 3.75 inches, it would all be perfect. Unsupervised crawling infants with heads smaller than 4.5 inches are rare at my house, so I don't think it's much of a REAL hazard.
by Ian
As a contractor I installed these for the first time on a custom deck with stairs. The installati...
As a contractor I installed these for the first time on a custom deck with stairs. The installation went well and I found the kits to work well. For the money, these are very good.
by HopefulOne
1 person found this helpful
Bought several kits to redo my deck railing. had to make some adjustments to my deck rails to all...
Bought several kits to redo my deck railing. had to make some adjustments to my deck rails to allow for the proper distance to fit the system. I recommend going a good 1/4" bigger space than instruction - it will give more tolerance for tighter cables. Easy enough to cut down to fit odd spaces at each end of deck run. Very easy to install and quick once you do the first one. Much better price compared to doing a horizontal cable and a fraction of the effort to install. Overall I really like the look and the price cant be beat. DIY level is easy - there is a video on youtube under insta-rail. I called manufacturer prior to install to get some questions answered and they directed me to video and answered my questions.
by jlev
4 people found this helpful
Product was easy to work with and to install. Have installed 14 sections, with another 24 to go....
Product was easy to work with and to install. Have installed 14 sections, with another 24 to go. Like other posts have stated, the variance of 1/16" is not realistic. This went into a new deck railing, so I had the benefit of setting the lengths to exactly 24.5" and 30.5" (for the 42" kits). I found that after installing the first few, I could not tension the cables enough to keep within local building codes. So I expanded the openings to 24.75" and 30.75". Problem solved. This product would've gotten a perfect 5, except that two of the cable end fittings were stripped and could not be used. Because I measured and cut exactly, I had no leftover product. I have emailed the company twice to request how to get replacement cables, with no response from them. It has been over two weeks. Home Depot will not work with a "partial return" and get only two cables for me. And I don't feel like spending another $80 for only two cables (I have no further need for any more 36" sections...using all 42" from here on out). So I have a 12" gap in my railing still!!
by KGedco
17 people found this helpful
This is a very nice quality product for the value and easy to install. It looks great. Watch the ...
This is a very nice quality product for the value and easy to install. It looks great. Watch the installation video prior to installing. The distance between your top and bottom rails must be precise. I strongly recommend that you add 1/4" inch to the instruction's stated distance between the rails. For the 42" railing system the instructions state the distance between the upper and lower rails is 30.5"(30 1/2"). I suggest you make this distance 30.75 (30 3/4") in order to put sufficient tension on the cables when tightening them. Otherwise at 30.5" the cables snug up and bottom out but are not taut. The extra space give you extra tightening capacity on the threaded studs. Also the recommended 7mm open end adjusting wrench will not fit on the wire's barrel (female) threaded end, is slightly too small, and 8mm is too large. You will need to file down the wrench's 7mm opening and I also had to file down the wrench end depth to fit into the groove on the wire barrel. This wrench is a must for adjusting the wire's tension. I also suggest a small needle nose visegrip wrench to hold the threaded studs from turning when adjusting the barrels. You would think Dolle would supply a proper sized adjusting wrench with the product as you can't find one in the USA. Otherwise I like it very much, looks great with many compliments and meets my expectations. I used it to replace a plexiglass interior balcony railing so that there is still an unobstructed view to the room below and it also provides a contemporary style. I used 5/4" X 4" wood rails.
by Jim
20 people found this helpful
Wood Balusters Goodbye
Wanted to improve our backyard view but other horizontal systems were much more costly. Removed wood balusters, added horizontal 2x4s to attach lower cable base. Project was 60 linear feet that consisted of runs as small as 27" up to runs of 90". Removal of old and installation of new took about 20 hours. Using wood clamps, was able to complete the job by myself. Only weakness in the materials were the phillip screws for upper and lower cable bases. I purchased several new titanium bits and still had problems "rounding out " the head of screws. Love the final results. See picture
by SassaPerfect
9 people found this helpful
