- Internal breaking mechanism effectively stops a fall
- Easily move within 11ft. radius while keeping consistent tautness
- Durable steel carabiner for easy connectivity
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
When professionals need the ability to move around freely in worksites with fall hazards, the self-retracting lifeline is a great solution to your fall protection system. Useful for a variety of applications, these vertical connectors offer both flexibility and security. With the right care and use, self-retracting lifelines can empower pros to do excellent work without threatening their safety. Self-retracting lifelines (SRL) are designed using webbing, wire rope or a cable that automatically retracts into a housing unit, never allowing for any slack in the line. SRLs are longer than lanyards and permit a larger working radius, even when using a fixed anchor point. The lifeline, much like the seat and shoulder belt in a car, also pulls out and retracts easily. In the case of a fall or quick tug, an internal braking mechanism engages, effectively stopping the fall. The lifeline moves freely again after the tension releases. During a fall event, the SRL's internal braking system disperses the energy of the fall over a short distance, which limits the force applied to a user's body. Self-retracting lifelines are an instrumental part of keeping workers safe from falls.
Highlights
- SRLs are longer than lanyards and permit a larger working radius, even when using a fixed anchor point.
- Case of a fall or quick tug, an internal braking mechanism engages, effectively stopping the fall
- During a fall event, the SRL's internal braking system disperses the energy of the fall over a short distance, which limits the force applied to a user's body
- 11 ft. baseline self-retracting lifeline is a class 1 device that provides durable performance in a compact size
- Includes durable steel carabiner for easy connection to anchorage points
- Includes heavy-duty steel snap hook that easily connects to fall protection harnesses
- Rugged aluminum housing protects an internal braking mechanism
- Constructed from ultra-high molecular weight polyethylene webbing
- Compliant with ANSI z359.14-2021 class 1, OSHA compliant
- Engraved serial number and date of manufacture aids inspection
- Return Policy
Product Information
Specifications
Dimensions
Cable length (ft.) | 11 |
|---|---|
Maximum Arresting Distance (in.) | 24 |
Product Height (in.) | 4.33 in |
Product Width (in.) | 3.20 in |
Details
Average Locking Speed (ft/sec) | 5 |
|---|---|
Connection Type | Karabiner, Snap Hook |
Hardware Color Family | Blue |
Material | Aluminum |
Maximum Arresting Force (lb.) | 1800 |
Maximum Weight Capacity (lb.) | 400 |
Returnable | 90-Day |
Warranty / Certifications
Certifications and Listings | ANSI Certified, OSHA Compliant |
|---|---|
Manufacturer Warranty | 1 Year |
Questions & Answers
Can this device be reused after a fall event?
You are not to use any Fall Protection product after a fall event. Please take it out of service.
You are not to use any Fall Protection product after a fall event. Please take it out of service.
IS this for overhead/waist mount only? Or is this okay for footlevel mount?
R530011W: Cannot anchor it any lower than the back D-ring. The Blue Housing connects to the anchor (structure) and that has to be higher than the back d-ring. The Gold hook attaches to the back D-ring of the harness.
R530011W: Cannot anchor it any lower than the back D-ring. The Blue Housing connects to the anchor (structure) and that has to be higher than the back d-ring. The Gold hook attaches to the back D-ring of the harness.
SRL LE certified?
Model # R530011W Certifications ANSI z359.14-2021-Class 1,OSHA 29 CFR 1910.140 & 1926.502 To see the information and User Instructions, please go to the following link. https://www.wernerco.com/us/products/fall-protection/retractables/R5300Series/R530011W
Model # R530011W Certifications ANSI z359.14-2021-Class 1,OSHA 29 CFR 1910.140 & 1926.502 To see the information and User Instructions, please go to the following link. https://www.wernerco.com/us/products/fall-protection/retractables/R5300Series/R530011W
Viewing 1-3 of 3
Customer Reviews
4.9 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | ||
|---|---|---|
Built for pros, the 11 ft. Baseline SRL ensures safety with a durable design and 400 lb. capacity. Ideal for fall protection. | Built for pros, the 23 ft. self-retracting lifeline ensures reliable fall protection in tough environments. | Built for tough jobsites, this 6 ft. steel SRL offers 310 lb. capacity and enhances jobsite safety. |
Lifeline Length | ||
11 ft. | 23 ft. | 6 ft. |
Weight Capacity | ||
400 lb. | 310 lb. | 310 lb. |
Fall Indicator | ||
Locking Speed | ||
5 ft/sec | 3.3 ft./sec | 0 ft/sec |
Material | ||
Aluminum, Ultra-high molecular weight polyethylene webbing | Steel | Steel |
Related Products
6 ft. Personal Self Retracting Lifeline - Single - Steel Snaphook
The DEWALT 6' single personal Self Retracting Lifeline with steel snap hook at anchor end provides users with a lightweight, versatile and rugged fall protection connector for a wide variety of applications. Maximum weight capacity of 310 lbs. 2 year limited warranty.

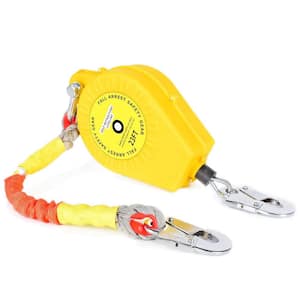

23 ft. Self Retracting Lifeline with Dual Alloy Steel Hook Heavy Duty Steel Wire Rope Quick Brake Fall Protection
