12V Off-Grid 100-Watt RV Boat Polycrystalline Solar Panel.

  • Suitable for boats, RVs and cabins
  • 100-watt, 12-volt energy output
  • Includes pre-drilled mounting holes
$ 87 47

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Suitable for boats, RVs and cabins
  • 100-watt, 12-volt energy output
  • Includes pre-drilled mounting holes

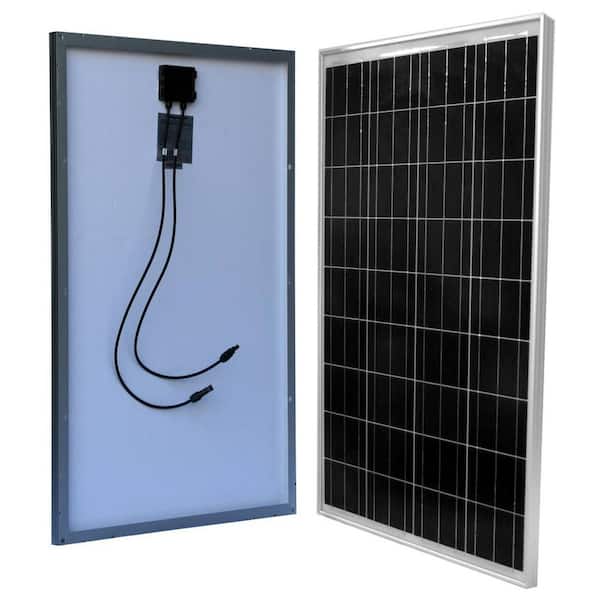

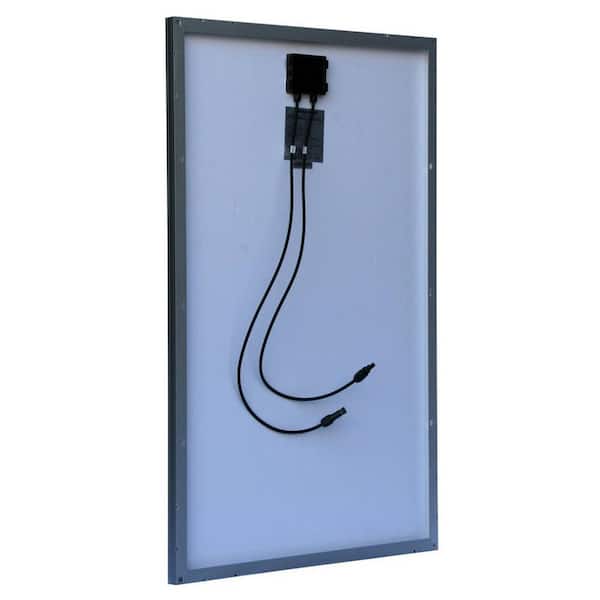

The Windy Nation 100-Watt Solar Panel allows you to start producing free, clean power from the sun. Perfect for RV's, boats, cabins and back-up power. Multiple WindyNation 100-Watt Solar Panels can be wired in parallel to increase charging current (amps) to a 12-Volt battery. Or multiple WindyNation 100-Watt Solar Panels can be wired in series to increase voltage for 24-Volt or 48-Volt battery charging. Panel arrives ready for connection. SEE PICTURES IN PHOTO GALLERY ABOVE FOR ALL TECHNICAL INFORMATION.
  • Creates 100-Watt of clean, renewable energy to power your 12-Volt appliances
  • 156 mm square polycrystalline silicon solar cells with 13.6% module conversion efficiency
  • 100-Watt solar panel can provide 300 to 600-Watt hours of power per day (depends on sunlight availability)
  • Heavy duty anodized aluminum frame with pre-drilled mounting holes
  • UL certified

Product Overview

  • Suitable for boats, RVs and cabins
  • 100-watt, 12-volt energy output
  • Includes pre-drilled mounting holes
Model #: SOL-100P-01
Internet #: 302852070

The Windy Nation 100-Watt Solar Panel allows you to start producing free, clean power from the sun. Perfect for RV's, boats, cabins and back-up power. Multiple WindyNation 100-Watt Solar Panels can be wired in parallel to increase charging current (amps) to a 12-Volt battery. Or multiple WindyNation 100-Watt Solar Panels can be wired in series to increase voltage for 24-Volt or 48-Volt battery charging. Panel arrives ready for connection. SEE PICTURES IN PHOTO GALLERY ABOVE FOR ALL TECHNICAL INFORMATION.

  • Creates 100-Watt of clean, renewable energy to power your 12-Volt appliances
  • 156 mm square polycrystalline silicon solar cells with 13.6% module conversion efficiency
  • 100-Watt solar panel can provide 300 to 600-Watt hours of power per day (depends on sunlight availability)
  • Heavy duty anodized aluminum frame with pre-drilled mounting holes
  • UL certified

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Ring WindyNation Renogy WindyNation
Name Solar Panel 12V Off-Grid 100-Watt RV Boat Polycrystalline Solar Panel. 100-Watt 12-Volt Monocrystalline Solar Panel Compact Design 100-Watt Bendable Flexible Thin Lightweight Monocrystalline Solar Panel
Price
$58.99
$87.47
$121.17
$123.58
Ratings (70) (45) (85) (11)
Included No Additional Items Included No Additional Items Included No Additional Items Included No Additional Items Included
Features Corrosion resistant,Outdoor,Weatherproof Weatherproof Corrosion resistant,Flexible,Indoor/Outdoor,Portable Flexible,Outdoor,Weatherproof
Application Residential Boat,Cabin,Camping,RV,Shed Boat,Camping,Hiking,RV,Shed,Vehicle Boat,Cabin,Camping,RV,Shed,Vehicle
View Product View Product View Product View Product

Specifications

Dimensions

Panel Height (in.)
40.0
Panel Width (in.)
1.2
Panel length (in.)
26.4

Details

Amperage (amps)
5.75
Application
Boat,Cabin,Camping,RV,Shed
Features
Weatherproof
Included
No Additional Items Included
Indoor/Outdoor
Outdoor
Number of Panels
1
Panel Material
Polycrystalline Silicon
Panel weight (lb.)
17.6
Returnable
180-Day
Solar panel type
Polycrystalline
Voltage (v)
12 v
Wattage (watts)
100

Warranty / Certifications

Manufacturer Warranty
*See document for full warranty details.

Specifications

Dimensions

Panel Height (in.)
40.0
Panel Width (in.)
1.2
Panel length (in.)
26.4

Details

Amperage (amps)
5.75
Application
Boat,Cabin,Camping,RV,Shed
Features
Weatherproof
Included
No Additional Items Included
Indoor/Outdoor
Outdoor
Number of Panels
1
Panel Material
Polycrystalline Silicon
Panel weight (lb.)
17.6
Returnable
180-Day
Solar panel type
Polycrystalline
Voltage (v)
12 v
Wattage (watts)
100

Warranty / Certifications

Manufacturer Warranty
*See document for full warranty details.

Questions & Answers

Do you have to have a controller ? CAn you hook a solor panal to a barrier without a controller ?

Asked by: Bill
No the voltage and current varies with the sun's intensity. The controller prevents battery damage. A battery is general required between the charge controller and your load.
Answered by: Paga
Date published: 2020-05-19

Do u need anything else with this to caharge 12 v camper Batteries like a regulator or anything

Asked by: Jason
you need a charge controler. An 6-8 amp unit will handle a single panel.
Answered by: Paga
Date published: 2020-05-19

Tell me more about the connectors and wire. I need to run the wires around 30 feet. Do I need t...

Tell me more about the connectors and wire. I need to run the wires around 30 feet. Do I need to purchase two Female MC4 connectors and what gauge wire is the panel wire?
Asked by: jim
Jim, I have installed a total of 3, 800 to 1600W systems using these panels in Puerto Rico. The panels come with either 14 AWG or 12 AWG. You will need 1 male and 1 female MC4 connector. If pairing these with 2 to 4 panels, recommend getting the MC4 branch (Y) connectors. They make installation much easier and reduce the numbers of cables you have to use. I used 8 AWG for all my runs which are 20 to 50 feet long (you can purchase 8 AWG wire directly from WindyNation or at your local HD store). You will have to slightly open the internal metal connectors to make them fit. You may experience a 1Volt drop from the panels to the controllers. Using the WindyNation 30Amp controller you can expect 1200Watts out of 4 panels on a sunny day.
Answered by: Anomalous009
Date published: 2018-08-10

What would be the best controller for solar panels for a small 16 ft travel trailer?

What would be the best controller for solar panels for a small 16 ft travel trailer?
Asked by: Russell
As I found out, I need more than two of these panels to deliver enough power to my trailer which is about 16 feet long. My refrigerator alone uses 1 KWh per day and two panels delivers about that each day leaving no power for anything else. I need four panels, in which case the 30 Amp controller will still work fine.
Answered by: SamSloan
Date published: 2019-05-20
