Zircon MultiScanner HD900 1 Step Multi-Function Wall Scanner
0042186662597

Zircon

MultiScanner HD900 1 Step Multi-Function Wall Scanner

  • Locates the center edges and direction of wood or metal studs
  • DeepScan mode doubles the scanning depth
  • WireWarning detection
$ 49 97
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Locates the center edges and direction of wood or metal studs
  • DeepScan mode doubles the scanning depth
  • WireWarning detection

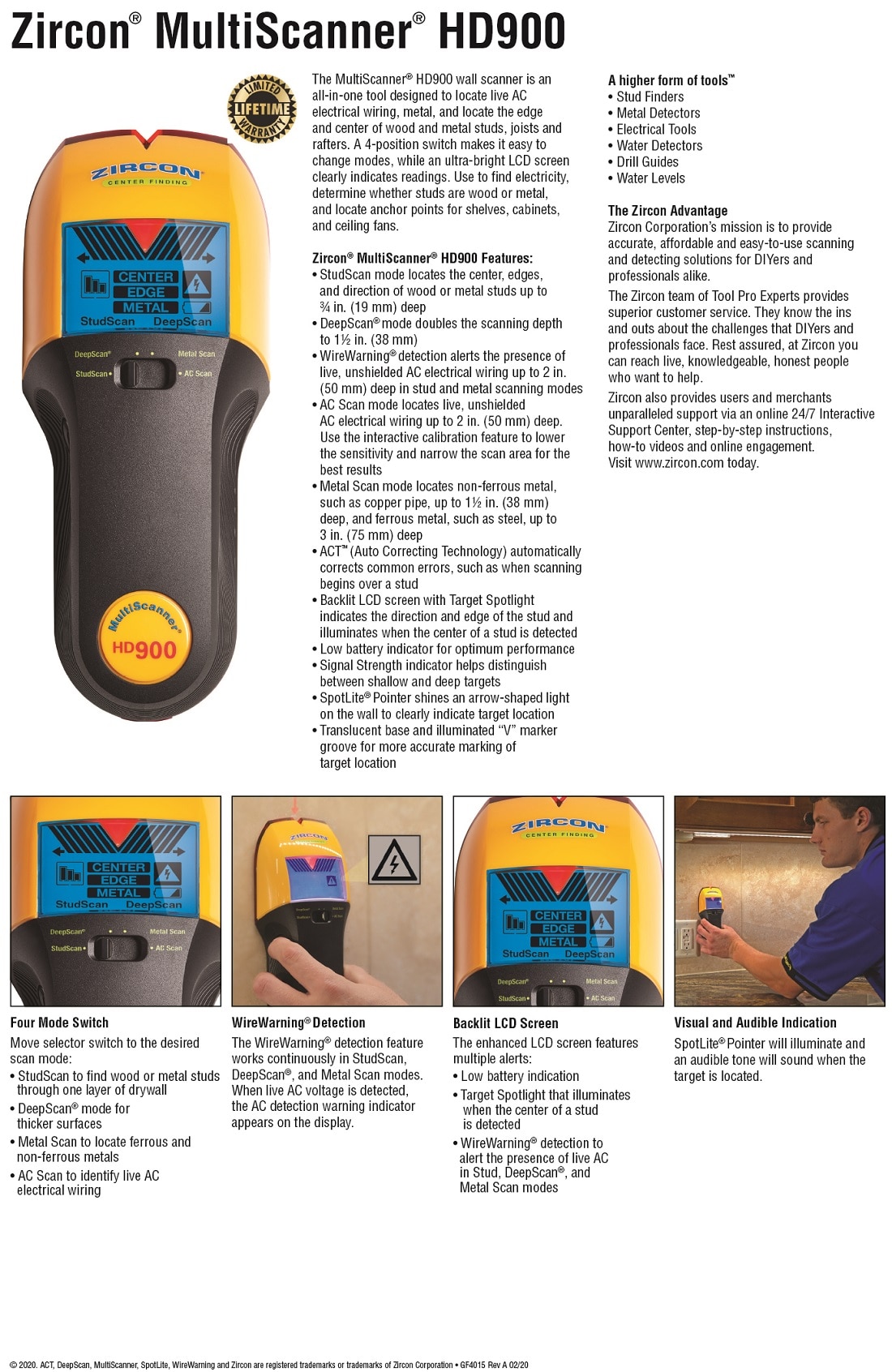

MultiScanner HD900 1 Step multi-function stud finder quickly and easily locates studs and joists behind walls, floors, and ceilings. It also locates metal as well as live AC electrical wiring. A 4-mode switch makes it easy to change functions, while the ultra-bright display screen, SpotLite Pointer, and audio tone all indicate the location of the target. The signal strength indicator helps to distinguish between shallow and deep targets.
  • StudScan mode locates the center, edges, and direction of wood or metal studs up to 3/4 in. (19 mm) D
  • DeepScan mode doubles the scanning depth to 1-1/2 in. (38 mm)
  • WireWarning detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) D in stud and metal scanning modes
  • Metal scan mode locates non-ferrous metal, such as copper pipe, up to 1-1/2 in. (38 mm) D, and ferrous metal, such as steel pipe, up to 3 in. (76 mm) D
  • AC scan mode locates live, unshielded AC electrical wiring up to 2 in. (51 mm) D
  • ACT (Auto Correcting technology) automatically corrects common errors, such as when scanning begins over a stud
  • Backlit LCD display with target spotlight indicates the direction and edge of the stud and illuminates when the center of the stud is detected
  • SpotLite pointer shines an arrow-shaped light on the wall to clearly indicate the center of the stud
  • Zircon recommends the use of a brand new 9-Volt battery (sold separately), check the battery expiration date upon battery installation and replace battery periodically due to the LCD power requirements
  • Translucent base and illuminated V-marker groove for more accurate marking of target location
  • Signal strength indicator helps to distinguish between shallow and deep targets
  • Great solution for all your detection need


  • Click here for more information on Electronic Recycling Programs

Product Overview

  • Locates the center edges and direction of wood or metal studs
  • DeepScan mode doubles the scanning depth
  • WireWarning detection
Model #: 66232
Sku #: 1000055370
Internet #: 205224991

MultiScanner HD900 1 Step multi-function stud finder quickly and easily locates studs and joists behind walls, floors, and ceilings. It also locates metal as well as live AC electrical wiring. A 4-mode switch makes it easy to change functions, while the ultra-bright display screen, SpotLite Pointer, and audio tone all indicate the location of the target. The signal strength indicator helps to distinguish between shallow and deep targets.

  • StudScan mode locates the center, edges, and direction of wood or metal studs up to 3/4 in. (19 mm) D
  • DeepScan mode doubles the scanning depth to 1-1/2 in. (38 mm)
  • WireWarning detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) D in stud and metal scanning modes
  • Metal scan mode locates non-ferrous metal, such as copper pipe, up to 1-1/2 in. (38 mm) D, and ferrous metal, such as steel pipe, up to 3 in. (76 mm) D
  • AC scan mode locates live, unshielded AC electrical wiring up to 2 in. (51 mm) D
  • ACT (Auto Correcting technology) automatically corrects common errors, such as when scanning begins over a stud
  • Backlit LCD display with target spotlight indicates the direction and edge of the stud and illuminates when the center of the stud is detected
  • SpotLite pointer shines an arrow-shaped light on the wall to clearly indicate the center of the stud
  • Zircon recommends the use of a brand new 9-Volt battery (sold separately), check the battery expiration date upon battery installation and replace battery periodically due to the LCD power requirements
  • Translucent base and illuminated V-marker groove for more accurate marking of target location
  • Signal strength indicator helps to distinguish between shallow and deep targets
  • Great solution for all your detection need


  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Compare Similar Products
Brand Zircon Zircon Zircon Zircon
Name StudSensor HD70 Stud Finder MultiScanner HD800 1 Step Multi-Function Wall Scanner MultiScanner HD900 1 Step Multi-Function Wall Scanner MultiScanner HD900c Multi-Function Stud Finder
Price
$29.97
$39.97
$49.97
$59.97
Ratings (426) (181) (218) (106)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
1.4
Product Height (in.)
7.25
Product Width (in.)
3.2

Details

Audio alert
Yes
Batteries Included
No
Battery Type Required
9-volt
Detects metal
Yes
Detects voltage
Yes
Digital Display
Yes
Hand Tool Type
Stud Sensor
Laser level included
No
Maximum wall thickness (in.)
1.5
Number of Batteries Required
1
Reconditioned
No
Returnable
90-Day
Tools Product Type
Hand Tool

Warranty / Certifications

Manufacturer Warranty
Zircon Corporation, ("Zircon") warrants this product to be free from defects in materials and workmanship for one year from the date of purchase.

Specifications

Dimensions

Product Depth (in.)
1.4
Product Height (in.)
7.25
Product Width (in.)
3.2

Details

Audio alert
Yes
Batteries Included
No
Battery Type Required
9-volt
Detects metal
Yes
Detects voltage
Yes
Digital Display
Yes
Hand Tool Type
Stud Sensor
Laser level included
No
Maximum wall thickness (in.)
1.5
Number of Batteries Required
1
Reconditioned
No
Returnable
90-Day
Tools Product Type
Hand Tool

Warranty / Certifications

Manufacturer Warranty
Zircon Corporation, ("Zircon") warrants this product to be free from defects in materials and workmanship for one year from the date of purchase.

Questions & Answers

Is it worth the extra $10 to have the AC mode?

Is it worth the extra $10 to have the AC mode?
Asked by: Robert
Absolutely. I always make sure to check the scanner against other models. I even went online to make sure it did everything it was supposed to. It works great for our apartment complex maintenance team and the guys love it. It is better to know everything behind the drywall than to cut into an electrical pipe and have to fix the wiring.
Answered by: dave
Date published: 2018-08-16

Will it detect aluminum studs?

Asked by: Tom
No, it will not detect any material with consistency.
Answered by: KnucklesWorkBetter
Date published: 2019-04-08

What is the difference between Wire Warning and Live AC Detect? I'm not seeing there is really an...

What is the difference between Wire Warning and Live AC Detect? I'm not seeing there is really any difference.
Asked by: JGarcia
No, it will not detect any material with consistency.
Answered by: KnucklesWorkBetter
Date published: 2019-04-08

will this locate an electrical outlet behnind sheetrock? Worker forgot to cut it out before hangi...

will this locate an electrical outlet behnind sheetrock? Worker forgot to cut it out before hanging sheetrock
Asked by: EB
It will locate live wires, if the box is metal should pick that up as well.
Answered by: rbess
Date published: 2017-11-18
  • y_2019, m_4, d_21, h_7CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_24
  • loc_, sid_205224991, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 85ms
  • QUESTIONS, PRODUCT

Customer Reviews

MultiScanner HD900 1 Step Multi-Function Wall Scanner is rated 3.6 out of 5 by 216.
Rated 3 out of 5 by from I normally use a Franklin Sensors Professional Stud (I highly reccomend, which works pretty well ... I normally use a Franklin Sensors Professional Stud (I highly reccomend, which works pretty well on most drywall situations. But, I needed to find studs behind a layer of ceramic tile & backer board (approx. 1" total). I purchased the HD900 because of the "deep scan" setting. After repeated tries, I really couldn't get consistent enough readings to make me feel good about drilling a hole in my new tile! I ended up doing a lot of measuring from the other side of the wall where there were elec. outlets attached to the studs & transferred them to the shower side of the wall (more complicated than it sounds). Even after knowing where the studs were, I still couldn't get consistent readings with the "deep scan" mode. I did use the "metal" mode & while that did locate screws in the studs, it doesn't narrow it down enough to determine the 1.5" wide stud. It is an okay stud finder, but didn't do what I needed it to do based on their description. For a normal stud finder with drywall, check out the Franklin Sensors Professional Stud finder. It operates a lot differently than most. I like it a lot.
Date published: 2019-03-17
Rated 1 out of 5 by from Going back... I bought this a week ago for a small project hanging lights, but needed to find ceiling studs. Thought it was a simple task as I've owned one before, (dif brand but left batteries in it and it corroded - my mistake) but it worked well. So went for one of the higher end models as one never knows what you will use if for in the future. Anyways, I read the instructions as I've seen some of the reviews here. Well it was definitely less than successful. Kept giving false reading and low and behold, no stud! So I tried some walls in an area of unfumished basement where I know the studs are... hit and miss. It picked up some, but not others. Then it would not register on the next slow swipe through... In short I gave it every chance and ended up measuring the studs in the unfinished section and found them that way. I'm actually shocked at its lack of performance! It's going back to home depot and I'll probably buy another of a different brand and see if that's better...
Date published: 2018-12-12
Rated 5 out of 5 by from The scanner worked very well. I live in an old... The scanner worked very well. I live in an old Sears and Robuck house and nothing is on center. The scanner is a blessing no more tapping on the wall or trying to pick out covered drywall screws. Made quick work of hanging shelves in a room. Played with it on other walls to see it functions and it worked very well tracing electrical and pipes. Dont know why I havent purchased one in the past. No more drawing out the studs when I remodel.
Date published: 2019-02-26
Rated 5 out of 5 by from Great Upgrade from Older Zircon (Triscanner Pro) Stud Finder I have been using a Zircon Triscanner Pro for more than the last 10 years, and that old unit has been a venerable and go-to tool. As the newer versions of stud finders came out many years ago, I soldiered on with my old unit thinking it was "good enough". Until I started playing with the HD series at my local HD a few years back. I'd love to say it's the best thing since sliced bread, but I'm sure that would be going too far. Okay - it's close. The increase in accuracy and ease of use have been very welcome. I don't do work that requires stud finding that often (the occasional DIY project guy), so I'd think $50 or so might be a steep price for the amount of use this gets. But try it out - one pass from an empty section straight onto a stud, and this bad boy tells you exactly where to put the mark. Very much recommended - sure, there may be other "values" out there, and you can spend less. But if this tool is in your price range, and you'll keep it for the next 10 years or so, go for it!
Date published: 2016-10-10
Rated 2 out of 5 by from not reliable does not work well in older homes. tried using to install rail on wall as well as grab bars in shower. did not work well on lath and plaster or tile. I put two new batteries in to see if first was faulty do to false readings and multiple holes drilled through the wall which missed the mark. maybe would work well in newer construction but I can't confirm that. very disappointed.
Date published: 2019-02-23
Rated 4 out of 5 by from Stud finders are what they are. With enough practice you... Stud finders are what they are. With enough practice you can learn what the beeps are telling you. Similar to a cable locator, they are confusing at first but with practice,they can be a handy tool. I was trying to find steel studs with a steel pan over it. Not really it’s intended use. Worked.
Date published: 2019-02-06
Rated 4 out of 5 by from This does a really good job on locating items, depending on the setting you have it on. My only ... This does a really good job on locating items, depending on the setting you have it on. My only complaint and it is a small one, is that it does not move real smooth over certain surfaces. For that I place a sheet of wax paper on the item to scan and it does really well. Well worth it.
Date published: 2019-02-05
Rated 5 out of 5 by from Purchased this to keep from drilling into studs in the... Purchased this to keep from drilling into studs in the walls while installing a Home Theatre. Worked perfectly and ID's the Center of the stud for accuracy. Great Device and I would recommend to anyone needing to purchase.
Date published: 2019-03-26
