Model #2204

Store SKU #114551

2-Speed 1/2 HP Evaporative Cooler Motor

  • Replacement motor for a new or existing evaporative cooler
  • Two-speed design lets you optimize cooling comfort
  • Durable steel construction ensures lasting use
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Bring cool air where you need it with this DIAL 1/2 HP evaporative cooler motor. Built for 115-volt evaporative coolers, it can be used in a new cooler or as a replacement motor for an existing unit. It's made with durable steel and has a thermal overload feature that protects it from overheating. The two-speed design lets you choose the best level of cooling for maximum comfort. Always follow the cooler manufacturer’s recommendation when selecting the hp for an evaporative cooler motor.
  • 2 speeds (1140 and 1725 RPM) allow you to control the comfort level
  • 115-Volt 1/2 HP motor provides reliable power for cost-efficient cooling
  • Resilient end rings ensure a secure fit into the cooler's mounting bracket
  • Can be automatically controlled with a cooler thermostat or with manual wall switch (both sold separately)
  • Permanently lubricated ball bearings ensure against over-oiling
  • Motor terminals are easily accessible for connecting the motor cord
  • Corrosion-resistant steel construction for durability and long life
  • Automatic thermal overload feature protects against overheating
  • UL-recognized components for safety
  • Includes one-year warranty
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Evaporative Cooler Motors

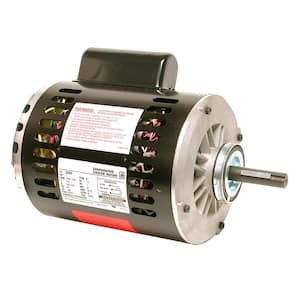

1-Speed 1/2 HP Evaporative Cooler Motor
current product
2-Speed 1/2 HP Evaporative Cooler Motor

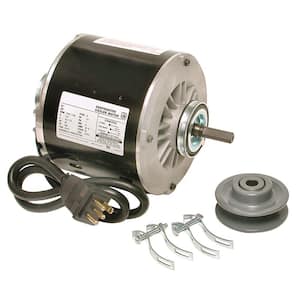

2-Speed 1/2 HP Evaporative Cooler Motor Kit2-Speed 1/3 HP Evaporative Cooler Motor Kit
BrandDIAL DIALDIAL
Name1-Speed 1/2 HP Evaporative Cooler Motor2-Speed 1/2 HP Evaporative Cooler Motor2-Speed 1/2 HP Evaporative Cooler Motor Kit2-Speed 1/3 HP Evaporative Cooler Motor Kit
Price
Ratings
(14)
(320)
(51)
(51)
Horsepower (hp).5 hp.5 hp.5 hp.333 hp
Part/Accessory TypeMotorMotorMotorMotor
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
9.25
Product Height (in.)
6.25
Product Width (in.)
6.25
Ring diameter (in.)
2.5
Shaft diameter (in.)
.5
Shaft Length (in.)
1.675

Details

Amperage (amps)
8.4
Horsepower (hp)
.5 hp
Material
Metal
Number of Speed Settings
2
Pack Size
1
Part/Accessory Type
Motor
Product Weight (lb.)
17.8
Returnable
90-Day
Voltage (volts)
115

Warranty / Certifications

Manufacturer Warranty
1 year from date of sale

Questions & Answers

61Questions16Answers

Does this motor require an external capacitor for the start cycle ?

Asked by Jeff February 8, 2021
1
Answer

No it does not. Only the 1 hp motors require the start capacitor.

What size of pulley do I need for my evaporator cooler motor 2204

Asked by Choche February 2, 2021
1
Answer

3-1/2 x 1/2

Need 1/3 hp 115 v with low high speed

Asked by Brown November 3, 2020
1
Answer

The 1/3hp 2-speed motor is part number 2202, also found on Homedepot.com.

What type of power cord is needed from motor to cooler outlet?

Asked by Jane September 29, 2020
1
Answer

Dial part number 7545, also found on homedepot.com is the compatible motor cord.

One of my vents does not blow air on my evaporative cooler

Asked by Olivia August 31, 2020
1
Answer

You will need to call an HVAC professional.

How do i lubricate the bearings on the motor? The one i had before had a plastic cover so i could lubricate it.

Asked by Serg July 15, 2020
3
Answers

that motor has sealed bearings the bearings u can rotate are on fan shaft use light no detergent oil a cap covers hole lubricate any leather rings on shaft too and do it twice a year if you want to keep your cooler running forever. those motors work perfectly till oil inside sealed bearing dries out then u need a new motor i go back to old days when u could lubricate all bearing. sealed bearings are in favor of the manufacturer to sell u new motor every five years. by the time they dry out the stress wil cause wiring to overheat and so its not really poss to open bearing and oil them unless your me, and i do that cause i hate tings u cant fix.

What type of fan motor do i need for a master cool evaporative cooler, MCP44E

Asked by Lorenso July 11, 2020
2
Answers

Dial motors are too large for this unit. You will need to contact Champion @ 800-643-8341.

what size breaker should I use with 3/4 up motor

Asked by Hammerman July 6, 2020
1
Answer

We recommend at least a 20 amp breaker because the start-up amperage is higher than the posted running amperage.

can you oil the bearings on the motor?

Asked by NeePay June 22, 2020
3
Answers

not required on this motor

Can the pulley and power cord from the original motor be removed and put into service on this mot...

Asked by BW June 10, 2020
2
Answers

Yes, there are two set screws on the shaft, only loosen the inner one when you take the pulley off the old motor. You need to check pulley alignment and maybe need to slide the pulley in or out on the shaft of the new motor. You will need to re-tighten the set screw real tight for it to stay. The power cord is super easy to replace, less than an hour.

2-Speed 1/2 HP Evaporative Cooler Motor - page 2

Customer Reviews

  • 3.9
    out of 320 reviews
  • 69% recommend this product
Filter by:
Showing 1-10 of 320 reviews
Terrible quality!
This motor is terrible! I have a brand new cooler, and this is my first summer season running it. From the very start the noise was LOUD and the cooler rumbled the house like there was train tracks running over my roof. I've been stressing over it for 2-3 months, thinking it was something wrong with the blower fan or the cooler housing, and thinking this would be something I would just have to live with. It turns out the motor was the problem this whole time! The bearings recently developed a very loud high pitched squeal upon startup and stop, and today the motor just gave out and wouldn't run, right in the middle of a 96 degree day. Fortunately I had held on to my old AO Smith motor from the previous cooler, so I was able to swap it and get the cooler up and running again before it got too hot in the house. So, the new cooler is back to running again with the old motor, and guess what, the noise and the rumble from before are virtually gone. I've been pulling my hair out this whole time over the stupid piece of junk Dial motor! I really wish I could get my money back on this garbage. I do not recommend this Dial motor at all. To anybody reading this, please do yourself a favor and look online for an AO Smith or a Century brand motor. It will cost you a little bit more money, but it will save you a lot of trouble and frustration.
by JG
2 people found this helpful
Very happy with the powerful motor definitely buy it again
Very happy with the powerful motor definitely buy it again
by HerculesB52
2 people found this helpful
Bolted/clamped right in ... easy R&R ... works just fine, as expected ...
Bolted/clamped right in ... easy R&R ... works just fine, as expected ...
by Repent
2 people found this helpful
This motor works just fine. I've read other reviews talking about some kind of "noise" it makes. ...
This motor works just fine. I've read other reviews talking about some kind of "noise" it makes. I didn't have that issue at all. Make sure you use the correct size of pulley AND that the new pulley is adjusted properly to accommodate the belt. A larger motor requires a different sized pulley. I've never had to replace a motor before but viewed plenty of videos on youtube to learn what I was in for. It was super easy! One thing I came across was the that the old brackets that hold the motor were badly rusted and a little hard to remove. After I replaced them, I lightly sprayed with oil to protect them. I went with the same size motor that was came with it 6yrs ago since I run the cooler on "Low" speed anyway. Evap's are more efficient at this speed so no need for a more powerful motor. The motor has absolutely no noises of any kind!
by lasvegastony
2 people found this helpful
by HomeDepotCustomer
Entire cooler was poorly constucted with cheap, low quality materials....
Entire cooler was poorly constucted with cheap, low quality materials. . In addition, I had to return the NEW DEFECTIVE MOTOR. I'll NEVER buy another cooler product at Home Depot!! It cost me an additional $90.00 to have a professionall electrician come out and test the problem-----Bad motor.
by HomeDepotCustomer
Powerful and competitive price...
Powerful and competitive price
by NGHIA
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
So far this motor has worked good, I’ve used it...
So far this motor has worked good, I’ve used it for about a week and a half. Installation was easy, and everything fit good.
by Fred
1 person found this helpful
