Model # UKXV3680L

Internet #302588038

0711805230539

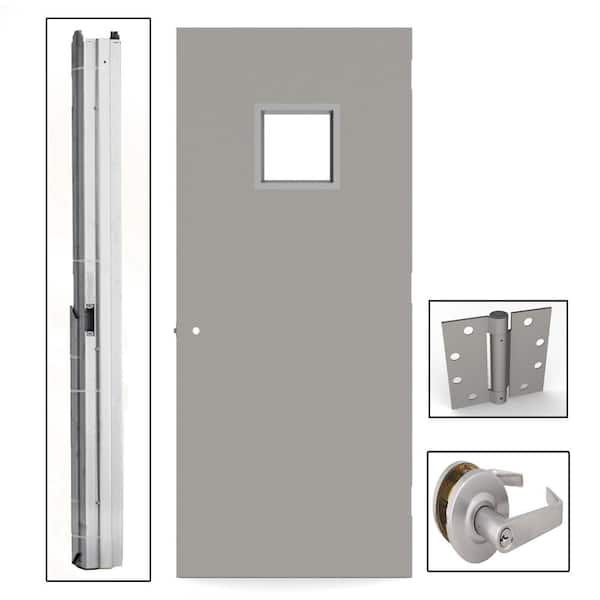

36 in. x 80 in. Gray Flush Exit with 10x10 VL Left-Hand Fireproof Steel Commercial Door with Knockdown Frame

$ 792 30

Overview

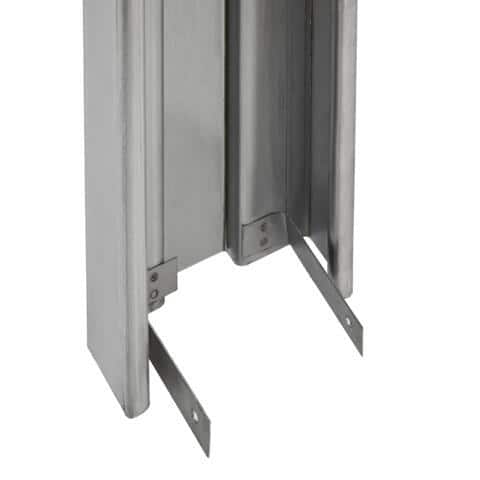

Heavy Duty Steel unit with 10x10 Vision Light(Polished Wire Glass) Exit Device and Commercial grade Lever Entrance trim installed with Knock-down frame. Complete with 3x Commercial spring hinges in a satin chrome finish. Equipped with a 90 min Fire and Smoke label. Manufactured with the highest quality galvanneal steel which is READY to PAINT once the steel is completely cleaned. Even though it appears to be RAW Steel it is not. Frame can be used with 2x4 steel or wood studs with a single layer of 5/8 drywall on both sides of the wall for a total wall thickness of 4-7/8. Frame is installed after the wall is built in Drywall applications. Frame comes complete with top pressure clamps and bottom strap anchors and sharp mitered corners for fast and easy installation and assembly for a clean uniform appearance. Installation Guideline, finish painting guidelines and warranty information are included with your order or can be downloaded for your convenience.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

Heavy Duty Steel unit with 10x10 Vision Light(Polished Wire Glass) Exit Device and Commercial grade Lever Entrance trim installed with Knock-down frame. Complete with 3x Commercial spring hinges in a satin chrome finish. Equipped with a 90 min Fire and Smoke label. Manufactured with the highest quality galvanneal steel which is READY to PAINT once the steel is completely cleaned. Even though it appears to be RAW Steel it is not. Frame can be used with 2x4 steel or wood studs with a single layer of 5/8 drywall on both sides of the wall for a total wall thickness of 4-7/8. Frame is installed after the wall is built in Drywall applications. Frame comes complete with top pressure clamps and bottom strap anchors and sharp mitered corners for fast and easy installation and assembly for a clean uniform appearance. Installation Guideline, finish painting guidelines and warranty information are included with your order or can be downloaded for your convenience.
  • Heavy duty steel to secure and protect your business or building
  • Nationally recognized fire label
  • Ready to install
  • Heavy duty steel door and frame provides long lasting durability and carefree use
  • Can be used in both interior and exterior walls
  • Steel frame provides superior protection compared to normal wood jambs
  • Commercial grade weather-stripping sold separately provides a weather tight seal (enter part # WSP3684 in the search bar)
  • Commercial grade locking device and hinges for additional security and long lasting durability
  • Satin smooth steel surface allows for easy painting for any color match
  • Ships in 10 days or less

Product Overview

Model #: UKXV3680L
Internet #: 302588038

Heavy Duty Steel unit with 10x10 Vision Light(Polished Wire Glass) Exit Device and Commercial grade Lever Entrance trim installed with Knock-down frame. Complete with 3x Commercial spring hinges in a satin chrome finish. Equipped with a 90 min Fire and Smoke label. Manufactured with the highest quality galvanneal steel which is READY to PAINT once the steel is completely cleaned. Even though it appears to be RAW Steel it is not. Frame can be used with 2x4 steel or wood studs with a single layer of 5/8 drywall on both sides of the wall for a total wall thickness of 4-7/8. Frame is installed after the wall is built in Drywall applications. Frame comes complete with top pressure clamps and bottom strap anchors and sharp mitered corners for fast and easy installation and assembly for a clean uniform appearance. Installation Guideline, finish painting guidelines and warranty information are included with your order or can be downloaded for your convenience.

  • Heavy duty steel to secure and protect your business or building
  • Nationally recognized fire label
  • Ready to install
  • Heavy duty steel door and frame provides long lasting durability and carefree use
  • Can be used in both interior and exterior walls
  • Steel frame provides superior protection compared to normal wood jambs
  • Commercial grade weather-stripping sold separately provides a weather tight seal (enter part # WSP3684 in the search bar)
  • Commercial grade locking device and hinges for additional security and long lasting durability
  • Satin smooth steel surface allows for easy painting for any color match
  • Ships in 10 days or less

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Door Height (in.)
80
Door Thickness (in.)
1-3/4
Door Width (in.)
36
Rough Opening Height (In.)
81
Rough Opening Width (In.)
38

Details

Bore Type
Single Bore
Color Family
Steel
Color/Finish
GRAY
Commercial
Yes
Door Configuration
Single Door
Door Handing
Left Hand/Outswing
Door Type
Interior Prehung
Features
No Additional Features
Finish Type
Primed
Frame Material
Steel
Hinge Finish
Chrome
Hinge Type
Spring
Included
Lockset
Material
Steel
Number of Hinges
3
Product Weight (lb.)
125lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
Not Qualified
Fire rating
90 minute
Manufacturer Warranty
1 YEAR LIMITED

Specifications

Dimensions

Door Height (in.)
80
Door Thickness (in.)
1-3/4
Door Width (in.)
36
Rough Opening Height (In.)
81
Rough Opening Width (In.)
38

Details

Bore Type
Single Bore
Color Family
Steel
Color/Finish
GRAY
Commercial
Yes
Door Configuration
Single Door
Door Handing
Left Hand/Outswing
Door Type
Interior Prehung
Features
No Additional Features
Finish Type
Primed
Frame Material
Steel
Hinge Finish
Chrome
Hinge Type
Spring
Included
Lockset
Material
Steel
Number of Hinges
3
Product Weight (lb.)
125lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
Not Qualified
Fire rating
90 minute
Manufacturer Warranty
1 YEAR LIMITED

Questions & Answers

Can someone please tell me if the glass used in this window is "tempered" glass? Thanks.

Can someone please tell me if the glass used in this window is "tempered" glass? Thanks.
Asked by: TS
No the glass is not tempered. Its a 1/4" polished wire glass that is used in 90 min Rated Doors
Answered by: LIF Industries
Date published: 2019-02-25

Will Home Depot install it? And what would the charge be to do so?

Will Home Depot install it? And what would the charge be to do so?
Asked by: Northminster
Home Depot would have to answer those questions- I know some stores do install our doors and some don't.
Answered by: LIF Industries
Date published: 2019-04-29
