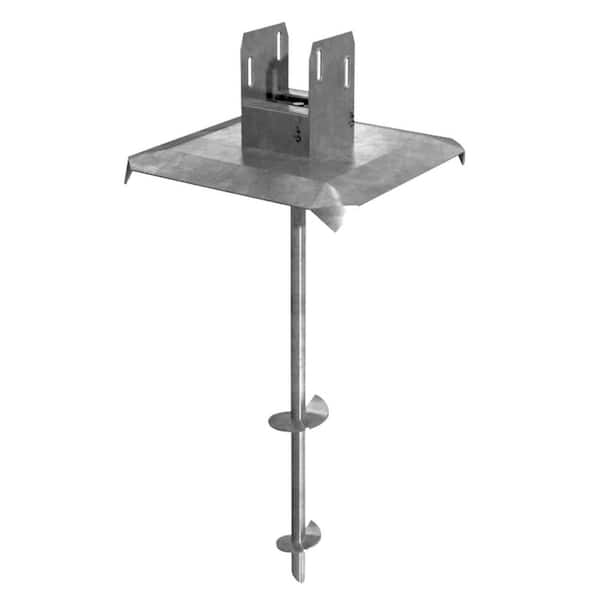

4 in. x 4 in. to 36 in. Steel Deck Foot Anchor

$72.00
Apply Now
Pay $47.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Designed to install ground anchored footings for sheds
  • Ideal for creating low or high elevation decks from ground level
  • Features a minimum weight capacity of 19,000 lbs.
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Designed to install ground anchored footings for sheds
  • Ideal for creating low or high elevation decks from ground level
  • Features a minimum weight capacity of 19,000 lbs.
About This Product

Ground Anchored Footings in minutes are a reality. The Deck Foot Anchor gives you strength and security similar to a poured concrete footing without the labor, time and cost. Quickly and easily install ground anchored footings for freestanding decks, pergolas, sheds, ramps and more in minutes.

  • How does frost affect the anchor the Deck Foot Anchor does not heave up from the ground like a fence post that is literally popped out of the ground a little bit each year, the Deck Foot Anchor remains anchored to the ground and moves with the soil as it expands up or settles down during freeze or thaw cycles, use only with freestanding decks, unless the soil does not freeze in your area
  • Tested to a minimum of 19,000 lbs. independent compression load testing has confirmed that each Deck Foot Anchor can support a minimum of 19,000 lbs. this is far more than your soil will ever support, so the Deck Foot Anchor is not the weakest link. your soil bearing capacity is the limiting factor
  • Low or high elevation decks, ground level: you can build your deck with joists as low as 2 in. to 3 in. above grade if you wish, simply hang the joists from the perimeter joist if you want to extend the deck beyond the footing, extend the side perimeter joists 6 in. to 10 in. and fill with blocking joists along the length
  • Easilly up to 6 ft. with proper bracing in both directions from 6 in. x 6 in. posts to beams, you can make a 6 ft. H freestanding deck as solid as a rock, it's possible to go even higher but it is not intended to support decks at a second-floor elevation
  • Securely anchored: ready for high wind, decks supported by concrete blocks that rest on the surface are susceptible to uplift in high winds and have to be secured to the ground with a webbing of cables and ground spikess the titan deck foot anchor holds your footings securely to the ground, almost 2/3 of the United States and parts of Canada are in high wind zones, for maximum uplift resistance, consider using the 36 in. auger
  • Contains: 1 TIDKP, 1 TIDP442, 1 TIGA900
  • Return Policy
Product ID #: 315703232Internet #: 040232549779Model #: TIDF442900

Additional Resources

caret

Specifications

Dimensions: H 5 in, W 4 in, D 38 in

Dimensions

Product Depth (in.)38 inProduct Height (in.)5 in
Product Width (in.)4 in

Details

Builders Hardware Product TypeAccessoryFasteners includedYes
FinishSteelHub RequiredNo hub connection available
MaterialSteelPackage Quantity1
Remote AccessNo Remote AccessRequires Hub?No Hub Required
Returnable90-DayWorks WithNo additional compatibility

Warranty / Certifications

Manufacturer WarrantyLimited
caret

Questions & Answers

3Questions
caret
Q:Will these drilll through frozen ground? Or struggle with rocky ground
by|Dec 12, 2023
0 Answer
Answer This Question
caret
Q:Can these anchors be used for fence posts for a wooden fence?
by|May 29, 2022
1 Answer
Answer This Question

A:  No, they're not meant for lateral loads.

by|Mar 30, 2023
    caret
    Q:Will this item pass the Massachusetts Building code for a new deck construction?
    by|May 13, 2022
    0 Answer
    Answer This Question
    Showing 1-3 of 3
    caret

    Customer Reviews

    4.5 out of 5
    • 4.5 out of 10 reviews
    • 100% recommend this product
    Filter by:
    Showing 1-10 of 10 reviews
    by
    • Verified Purchase
    Impressive
    I successfully installed both the 24" and 36" footings to achieve what appears to be an incredibly solid foundation for a 10' X 28' floating deck. Time will tell how seasonal movement will affect these footings, as well as their uplift strength because I will have an open sided roof as well, but as far as ease of installation and solidity goes for something meant to be floating, I am very impressed.
    by
    • Verified Purchase
    • Recommended
    Great product!
    Works great! Easy to install in the ground and seems very sturdy. I used 3 of these to extend the length of a free standing deck.
    by
    • Verified Purchase
    • Recommended
    FORGET FOOTERS!
    These are robust anchors, heavy gauge galvanized components coupled with an incredibly easy simple installation. Exceeds expectation.
    by
    • Verified Purchase
    I drilled these through ten inches of crushed stone and...
    I drilled these through ten inches of crushed stone and then dirt to anchor in a grilling gazebo. It was much easier than pouring concrete footings. Would buy again.
    by
    • Verified Purchase
    by
    • Verified Purchase
    They are very flimsy once the post is in. Do...
    They are very flimsy once the post is in. Do not use for high structure.
    by
    • Verified Purchase
    Saw this online and I have to say it met/exceeded...
    Saw this online and I have to say it met/exceeded my expectations. A little pricey but for someone working alone it was simply the fastest way to continue with the project without being labor intensive (digging holes and mixing concrete). I set 2 of these in less than 5 minutes and was able to keep going and I have very hard to dig dense clay for soil. The deck feels very solid, and we’ll see how well they hold up over winter but I feel good about that too! I will add to make sure your impact has enough torque to meet the spec requirements.
    by
    • Verified Purchase
    Used them on a paver brick patio. Removed only one...
    Used them on a paver brick patio. Removed only one to three bricks. Drove poles in and replaced bricks having to notch out only one. Nearly no tear-up. Used the square plates after grinding off downturned corners. Looks nice! Extremely stable and solid rigidity securing a 14x12 wood pergola. Perfect for a variatiion of their intended purpose. Extremely satisfied and confident with the result!!
    by
    • Verified Purchase
    1 found this review helpful
    Used to support Dock Post. Docks nice and sturdy....
    Used to support Dock Post. Docks nice and sturdy.
    by
    • Verified Purchase
    Showing 1-10 of 10 reviews
