- Helps prevent electrical shutdowns extend beyond failed circuit
- Ideal for use with panel boards, combination starters, and more
- UL listed for optimum safety and reliability
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

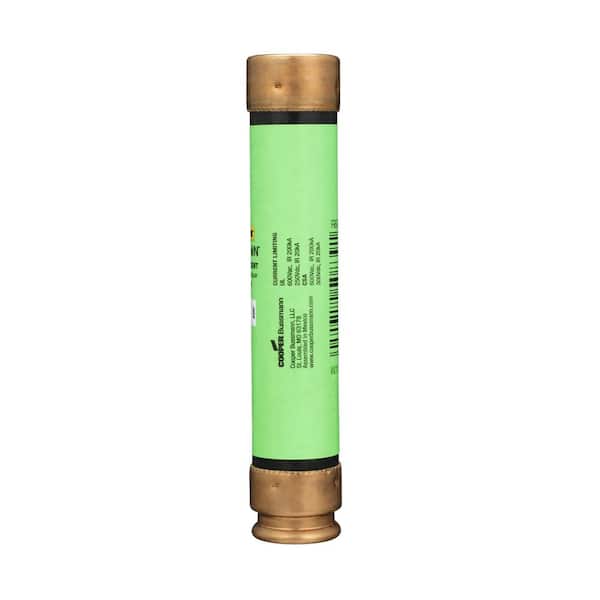

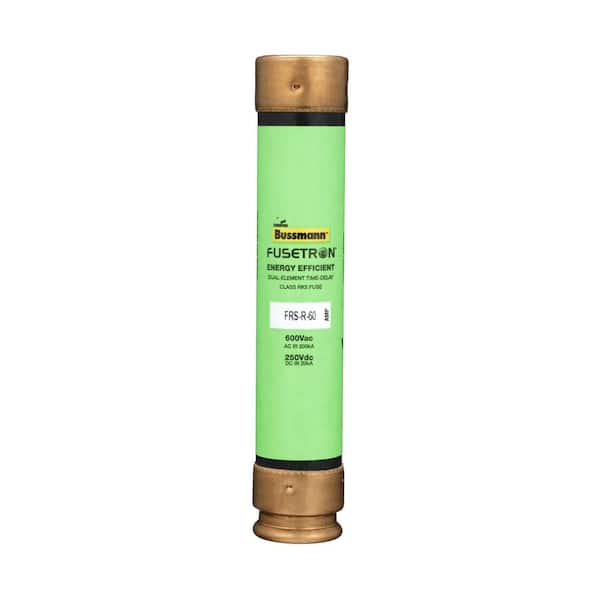

The Bussmann FRS-R-60 is an energy-efficient, dual-element, time-delay Class RK5 fuse pack from the FUSETRON line. Its design offers excellent time-delay protection for equipment like power panelboards, motor control centers, and safety switches. Dual-element fuses have separate overload and short-circuit parts, allowing inrush currents without blowing the fuse. This time-delay feature helps equipment handle short-term surges, such as motor startups, while still protecting against prolonged overloads and short circuits.
Highlights
- Operating maximum of 60 Amps and 600 Volts
- UL- and CSA Listed
- Closer sizing allows for smaller fuses and less costly switches
- Simplifies and improves blackout prevention (selective coordination)
- Helps protect motors against burnout from overloads and single-phasing on three-phase systems
- Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection
- Provides current limitation to help protect downstream components from high fault currents
- Return Policy
Product Information
Specifications
Dimensions
Product Depth (in.) | 1.5 in |
|---|---|
Product Width (in.) | 3.6 in |
Details
Class | R |
|---|---|
Element | Dual Element |
Fuse Type | Cartridge |
Material | Brass |
Maximum Amperage (A) | 60 |
Pack Size | 1 |
Power Distribution Features | Time Delay |
Returnable | 90-Day |
Series Type | Not Specified |
Speed | Time Delay |
Visual Indication | Non-Indicating |
Voltage (V) | 600 |
Warranty / Certifications
Certifications and Listings | CSA Listed, UL Listed |
|---|
Questions & Answers
whoooo does your measurements?
This item measures 10" x .75" diameter.
HOW LONG . AND WHAT IS DIA.
This item measures 10" x .75" diameter.
1.06" Dia x 5.5" L (26.92x139.7mm)
