Model # ASW-H12U3/JIR1D1-US-A

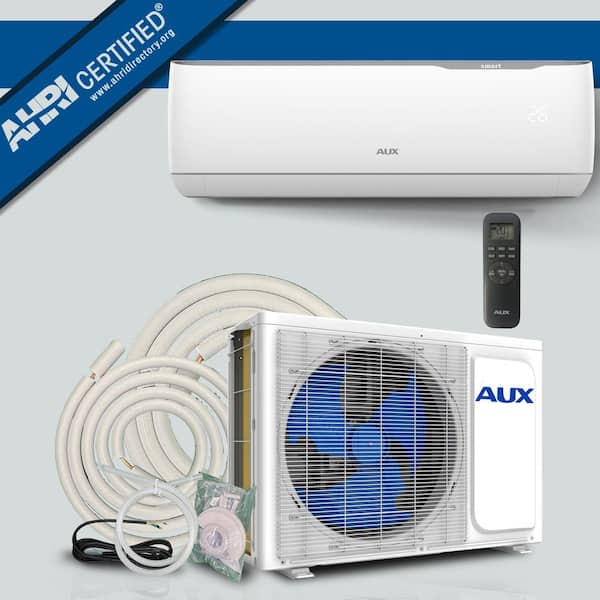

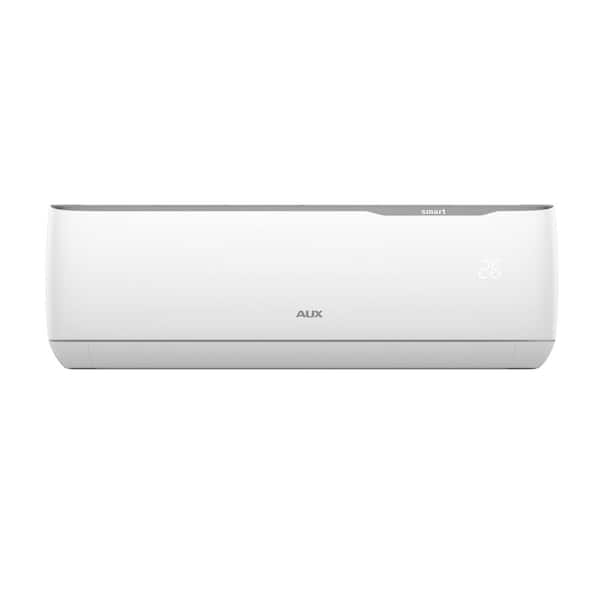

12,000 BTU Ductless Mini Split Air Conditioner with Heat Pump 17 SEER 115-Volt 1 Ton, 12 ft. Line Set, Wall Mount

Limit 10 per order
$642.86
Apply Now
Pay $592.86 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Comes pre-charged with an eco-friendly R410 refrigerant
  • Includes an anti-fungus bacterial filter for better environment
  • Features cross-flow technology to minimize noise output
  • View More Details

Free & Easy Returns In Store or Online

Return this item within 90 days of purchase.

Read Return Policy

Get an answer now with AI

AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.

Product Details

About This Product

The AUX 12,000 BTU Mini Split Ductless AC Heat Pump, is a Cost Effective comfort system that can maintain any home cool and comfortable for as long as desired. This High Quality ductless heat pump is energy efficient, packed with great features and priced to meet most household budgets. Whether you need targeted air comfort for a single zone, or need more general air conditioning in the home, the energy efficient performance of the AUX Inverter variable speed compressor will ensure affordability and effectiveness.

Highlights

  • 12,000 btu ductless mini split air conditioner and heat pump
  • 17 seer
  • Included indoor unit and outdoor unit
  • Remote control included
  • Sleep mode offers energy savings and keeps you cool or heat all day and night
  • Anti-fungus bacterial filter
  • 3-speed and auto-speed blower
  • Energy savings of up to 20% compared to conventional mini-splits
  • Automatic air swing, 2-direction air vane evenly distributes air
  • Cross flow technology reduces noise output
  • Easy maintenance - panel removes for access, washable filters
  • Pre-charged with eco-friendly R410 refrigerant
  • 1 ton ductless split can cool or heat a room up to ~600 sq. ft.
  • 12 ft. line set
  • Installation kits included
  • 5 year compressor, 1 year parts (warranty)
  • 115-Volts
  • Not included power cable
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 313267770

Model # ASW-H12U3/JIR1D1-US-A

Specifications

Dimensions

Air handler depth (in.)

8

Air handler height (in.)

12

Air handler width (in.)

34

Condenser depth (in.)

22

Condenser height (in.)

29

Condenser width (in.)

11

Details

Air Handler BTU

12000 BTU

Air handler weight (lb.)

26

Amperage (A)

15 A

BTU Cooling Rating

12000 BTU

BTU Heat Rating

12000 BTU

Condenser weight (lb.)

60

Coverage Area (sq. ft.)

600

Decibel (Sound) Rating

53 dBA

Decibel Rating

53 dBA

Filter Type

Washable

Included

Heater, Remote Control

Line Set Length (Ft.)

12 ft

Mini Split Features

Sleep setting, Timer

Minimum Outdoor Temperature (F)

2

Mount Location

Wall Mount

Number of Tons

1 ton

Refrigerant Compatibility

R-410A

Returnable

90-Day

Voltage (v)

115v

Wattage (watts)

1500

Zone Capacity

1 Zone

Warranty / Certifications

Manufacturer Warranty

1 Year Parts / 5 Years Limited Manufacturer

Seasonal Energy Efficiency Ratio (SEER)

17

Seasonal Energy Efficiency Ratio 2 (SEER 2)

N/A

Questions & Answers

Does the AUTO function alternate between Heat and Cooling to the set temperature ? In other words if the TEMP is set to 80* and the AUTO setting is selected will it heat and/or cool to maintain that teperature ?
ByOct 16, 2025
0 Answer |
Answer This Question

What equipment is needed to install the unit? Can a highly experienced DIY successfully install the system?
ByJun 16, 2025
0 Answer |
Answer This Question

Does the line set need vacuumed???
ByJun 2, 2025
1 Answer |
Answer This Question

The lineset is not required to be vacuumed. But the unit need to be vacuumed.

By|Jun 2, 2025
    0/0


    Can this unit be set on a concrete platform on the ground?
    ByMay 27, 2025
    1 Answer |
    Answer This Question

    The outdoor unit can be placed on the ground. Although the indoor unit can also operate when placed on the ground, we recommend mounting it in a suspended position.

    By|Jun 29, 2025
      0/0

      (2)

      Is this a plug in unit or does it require it’s own electrical circuit
      ByMay 10, 2025
      1 Answer |
      Answer This Question

      It needs to be connect to breaker.

      By|May 14, 2025
        0/0


        Is this DYI?
        ByApr 28, 2025
        1 Answer |
        Answer This Question

        Hi, We highly recommend to hire professional technician to install the unit.

        By|May 2, 2025
          0/0


          square foot coverage
          ByMar 27, 2025
          1 Answer |
          Answer This Question

          Hi, It can cover up to 600 sqft

          By|Apr 3, 2025
            0/0


            Can it be mounted on sun room wall 6” above floor?
            ByMar 24, 2025
            1 Answer |
            Answer This Question

            It can be mounted 6 inches above the floor, but please note this low position may affect airflow and cooling performance. We recommend consulting a professional for the best placement.

            By|Mar 24, 2025
              0/0


              Viewing 1-8 of 227

              Customer Reviews

              4.1 out of 5

              • 4.1 out of 220 reviews
              • 65% recommend this product
              Filter by:
              Showing 1-10 of 220 reviews
              Horrible Warranty Support - No response
              I have purchased several of these units and they don't seem to hold freon. The most recent was in Feb this year and the unit is bad. It is putting moisture in the room and have mildew/mold growing in it. We have cleaned what is reachable but it does not stop the moisture. We had to buy a de-humidifier as well and finally shut off the unit and installed a window unit temporarily. I contacted warranty support, provided receipt and pictures and it's going on near a month with no response from the tech. Angel has said to look for an email which has never came. I have called three days in a row including today and still no response. I am now taking this issue to social media. Run from this brand if you expect warranty support. We had another unit they would not cover because the parts were from China which was why we purchsed a replacement unit. Horrible Customer Service. Also our other units have issue with freezing up when low freon and it costs close to $200 to recharge.
              by
                Will not defrost.
                Nice Unit, However it will not defrost and the inside louver has quit working this all within the first 6 months.
                by
                  Easy install. Heats garage easily
                  by
                  • Verified Purchase
                  The system never worked. I spent more money and have argued with the manufacturer about the warranty. I’m very dissatisfied with the product
                  by
                  • Verified Purchase
                  3 found this review helpful
                  Fairly easy install, works great, i highly recommend it.
                  Great price , looks good and works
                  by
                  • Verified Purchase
                  • Recommended
                  2 found this review helpful
                  We installed it ourselves but failed to check for leaks. We had an HVAC tech torque the line fitt...
                  We installed it ourselves but failed to check for leaks. We had an HVAC tech torque the line fittings to spec and fill with refrigerant. This unit works fantastic! It is the best investment that we have made for our small office. We look forward to winter to see how well it heats. When you install it be sure to torque the fittings to spec and check all connections for refrigerant leaks.
                  by
                  • Verified Purchase
                  • Recommended
                  14 found this review helpful
                  The supplied lineset was too short for my needs, but also had the black foam insulation which degrades fast. The unit is installed and working great. Only 4 stars because the condensing unit has a large dent in the side, I unboxed it the morning of the install and was not about to return it for another. Cosmetic, but does not interfere with function.
                  by
                  • Verified Purchase
                  Easy install and cools nicely
                  by
                  • Verified Purchase
                  This customer chose to rate the product and not provide text.
                  by
                  • Verified Purchase
                  This customer chose to rate the product and not provide text.
                  by
                  • Verified Purchase
