Internet #307753774

Model #4ALF105A2F

Store SKU #1003912697

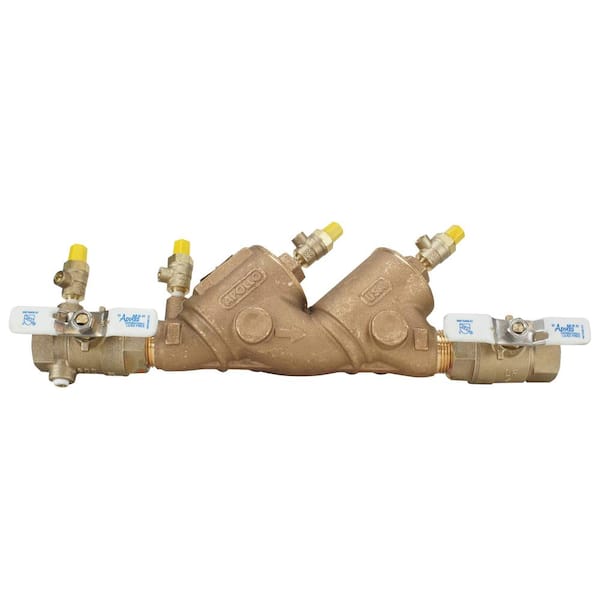

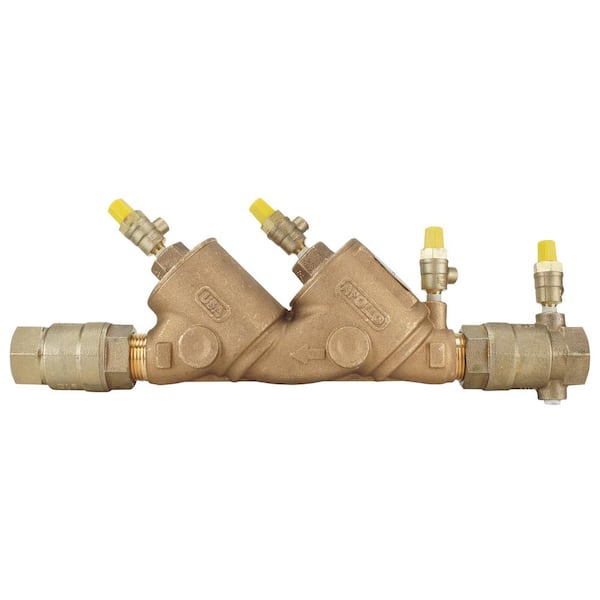

1 in. Lead Free Bronze FIP Double Check Backflow Preventer

$20483
Apply Now
Save up to $100 on your qualifying purchase.
Apply for a Home Depot Consumer Card
  • Standard with full port shutoff valves
  • Valve cartridge is easily removable for repairs
  • 5 year warranty
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
Price:
$20483

Product Overview

This item with threaded connections is designed to prevent the back flow of polluted water from entering into the potable water supply due to back siphon-age and or backpressure. It has top mounted test cocks for easy testing. Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
  • Shut off valve have stainless steel handles for superior corrosion resistance
  • Low pressure loss documented by an independent approval agencies
  • Captured stainless steel springs
  • Top mounted test cocks for easy testing
  • Chloramine resistant elastomers
  • Stainless steel internal spring for superior corrosion resistance and longevity
  • USC approved
  • Can be installed in the vertical or horizontal position
  • Designed, cast, manufactured, assembled and tested in south Carolina
  • Female pipe thread connections for ease of installation in any application
  • Maximum working pressure: 175 psi/temperature range: 33°F to 180°F
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Backflow Preventers

Top Rated1 in. Backflow Preventer
current product
1 in. Lead Free Bronze FIP Double Check Backflow Preventer
1 in. FPT x FPT Bronze Reduce Pressure Zone Assembly Backflow Preventer3/4 in. Lead Free Bronze FIP Reduced Pressure Backflow Preventer
BrandWattsApolloWattsApollo
Name1 in. Backflow Preventer1 in. Lead Free Bronze FIP Double Check Backflow Preventer1 in. FPT x FPT Bronze Reduce Pressure Zone Assembly Backflow Preventer3/4 in. Lead Free Bronze FIP Reduced Pressure Backflow Preventer
Price
$17373
$20483
$29399
$38250
Ratings
(66)
(2)
(17)
(7)
ConnectionFIP x FIPFIP x FIPFIP x FIPFIP x FIP
MaterialBronzeBronzeBronzeBronze
Compatible Pipe MaterialMulti-PurposeMulti-PurposeBrassMulti-Purpose
Maximum Pressure (psi)175 PSI175175175
Maximum Working Temperature (F)180180180180
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorOutdoorIndoor,Outdoor
Inlet Diameter (In.)1113/4
Outlet Diameter (In.)1113/4
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1
Outlet Diameter (In.)
1
Product Depth (in.)
14.75 in
Product Height (in.)
3.25 in
Product Length (in.)
14.75 in
Product Width (in.)
4 in

Details

Application
Potable Water
Compatible Pipe Material
Multi-Purpose
Connection
FIP x FIP
Features
Corrosion Resistant,Lead Free
Indoor/Outdoor
Indoor,Outdoor
Material
Bronze
Maximum Pressure (psi)
175
Maximum Working Temperature (F)
180
Pack Size
1
Product Weight (lb.)
10 lb
Returnable
90-Day
Valve Type
Backflow Prevention

Warranty / Certifications

Manufacturer Warranty
5 Years: Must be installed per published installation instructions.
