SmartKey Security features re-key technology, which allows you to re-key your locks yourself in seconds, because we realize the person who has your key today may not be the same person you want to have your key tomorrow.
Prestige's SmartKey Security is designed to protect against common types of break-ins to keep your family safe. SmartKey Security is kick-in resistant, bump proof, pick resistant, drill resistant, and saw resistant.

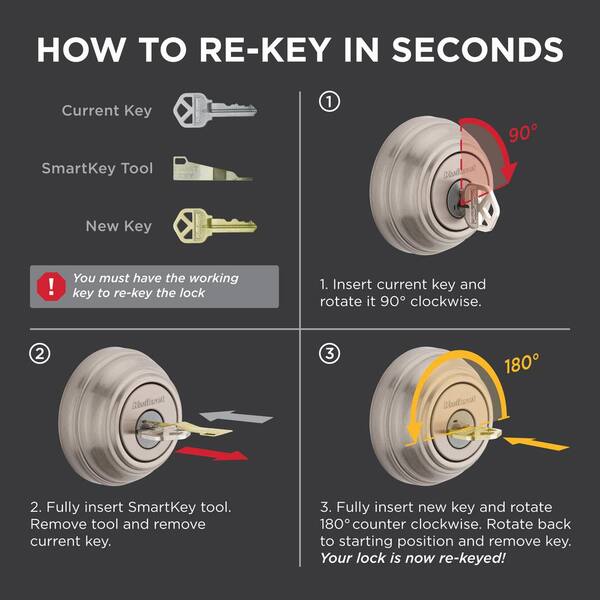

Before you start re-keying, you must have your functioning key, your new key, and the SmartKey Learn tool.
Insert the key that currently operates your lock, and rotate it 90 degrees clockwise.
A) Insert the SmartKey tool fully and firmly into the SmartKey hole.
B) Remove the SmartKey tool and the current key.
A) Fully insert your new key into the lock and rotate it 180 degrees.
B) Rotate the new key 90 degrees back to the starting position, and remove it. Your lock is now re-keyed to your new key, and your old key will no longer operate the lock.
Provides strong resistance against sophisticated forced entry techniques.
The patented design of SmartKey Security provides enhanced protection against drilled entry.
Advanced SmartKey Security protects against undetectable entry methods such as lock picking.
The BumpGuard component of a SmartKey Security lock incorporates a side locking bar to provide protection against lock bumping techniques.
|Assembled Depth (in.)||2.4 in||Assembled Height (in.)||2.8 in|
|Assembled Width (in.)||2.3 in||Backset Size (in.)||Adjustable|
|Bore hole diameter (in.)||1.0||Knob cross bore diameter (in.)||2.125|
|Knob Diameter (in.)||2.25 in||Knob housing height (in.)||2.625|
|Knob housing width (in.)||2.625||Maximum Door Thickness (in.)||1.75 in|
|Minimum Door Thickness (in.)||1.375||Projection (in.)||2.5|
|Strike Height (in.)||2.25 in||Strike Width (in.)||1 in|
|Throw length (in.)||0.5|
|Application Type||Entry||Combo Pack||Non-Combo|
|Commercial/Residential||Residential||Door Lock Style||Classic|
|Door Locks & Knobs Product Type||Keyed Knobs||Electronic/Mechanical||Mechanical|
|Features||Adjustable Backset, Easy Installation, Kwikset SmartKey, Rekeying Lock||Finish||Satin Nickel|
|Hardware Color Family||Nickel||Hardware Finish Family||Nickel|
|Included||Hardware, Installation Instructions||Interior/Exterior||Exterior|
|Knob style||Flat ball||Lock Type||Keyed|
|Material||Metal||Number of Pins||0.0|
|Product Weight (lb.)||2 lb||Returnable||90-Day|
|Security/ANSI Grade||N/A||Strike||Round corner|
|Tools/Hardware Collections||Kwikset SmartKey||Total Number of Keys Included||2|
|Certifications and Listings||No Certifications or Listings||Manufacturer Warranty||Lifetime mechanical and finish warranty|
A: Thank you for contacting us. Our Prestige product also uses a Smart Key cylinder, which will work with a Kwikset product as well.
A: Hello. Unfortunately the polished brass finish in the Prestige product was discountinued in 2021.
A: Yes, this can be installed on either a left-hand or right-hand door.
A: Yes, as long as the door has a borehole drilled through it and is 1-3/8 in. to 1-3/4 in. thick.
