#1 Home Improvement Retailer

Internet # 301390263

Model # 91800-036

Store SKU # 640064

Prestige Nautica Single Cylinder Satin Nickel Door Handleset with Tobin Door Handle Featuring SmartKey Security

$173.25
Apply Now
Pay $148.25 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • For use on exterior doors where secure keyed entry is needed
  • Features a fully adjustable latch to fit all standard doors

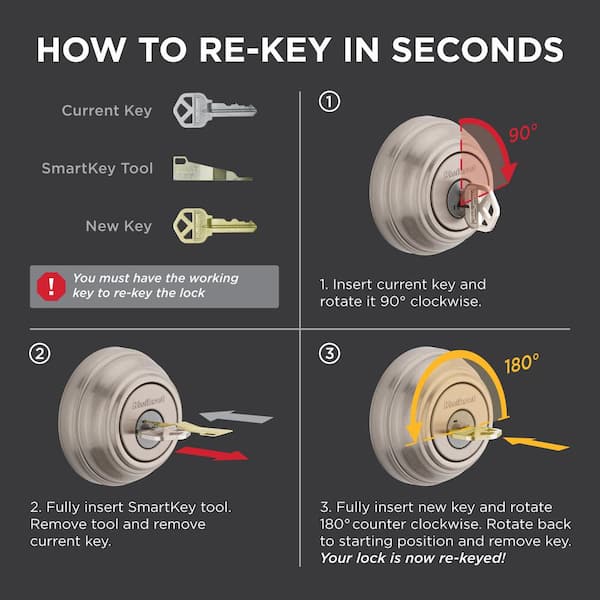

  • SmartKey Security re-keying allows you to re-key lock yourself
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The Prestige is a way to bring the legendary excellence of Baldwin into more homes and more hands. With the Prestige Series, any homeowner can instantly create an atmosphere of confidence from the moment someone knocks on the door. Prestige features the innovative SmartKey Security re-key technology, allowing you to re-key your lock as often as you wish without replacing the entire lock. The flexibility to re-key your locks any time you desire increases home security, allows for 1-key convenience, and facilitates home remodeling and hardware updates.

Highlights

  • Solid forged brass
  • Elegant low profile cylinder
  • Architecturally inspired design
  • Easy to install; adjustable backset latch fits 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm)
  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • Accommodates door thickness of 1-3/4 in. (44 mm) conversion kit available for 2-1/4 in. thick doors
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks
  • SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
  • SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
  • Not sure what type of lock you need? Check out our helpful buying guide here.
  • Not sure what type of lock you need? Check out our helpful buying guide here.
  • Return Policy

Product Information

Internet # 301390263

Model # 91800-036

Store SKU # 640064

Specifications

Dimensions: H 12.78 in, W 2.78 in, D 3.06 in

Dimensions

Assembled Depth (in.)3.06 inAssembled Height (in.)12.78 in
Assembled Width (in.)2.78 inBackset Size (in.)Adjustable
Deadbolt Bore Hole Diameter (in.)1 inDeadbolt Cross Bore Diameter (in.)2.125 in
Deadbolt Strike Height (in.)2.25 inDeadbolt Strike Width (in.)1.125 in
Deadbolt Throw Length (in.)1 inDeadbolt Trim Ring Diameter (in.)2.8 in
Handle grip length (in.)3.06Inside top plate length (in.)2.80
Inside top plate width (in.)2.63Knob/lever bore hole diameter (in.)1
Knob/lever cross bore diameter (in.)2.13Knob/lever housing height (in.)2.67
Knob/lever housing width (in.)1Knob/lever strike height (in.)2.25
Knob/lever strike width (in.)1Knob/lever throw length (in.).5
Lever Grip Length (in.)4.2 inMaximum Door Thickness (in.)2.25 in
Minimum Door Thickness (in.)1.75Outside bottom handle plate length (in.)12.78
Outside bottom handle plate width (in.)2.78Outside key plate length (in.)4.00
Outside key plate width (in.)2.78Outside top handle plate length (in.)4.00
Outside top handle plate width (in.)2.78Projection (in.)3.06

Details

Application TypeEntryCommercial/ResidentialResidential
Deadbolt strikeRound cornerDeadbolt TypeSingle Cylinder Deadbolt
Door HandingUniversalDoor Lock StyleClassic
Door Locks & Knobs Product TypeKeyed HandlesetsElectronic/MechanicalMechanical
FeaturesAdjustable Backset, Kwikset SmartKeyFinishSatin Nickel
Handleset Product Type2 Piece Front & BackHardware Color FamilyNickel
Hardware Finish FamilyNickelIncludedHardware, Installation Instructions
Keying TypeKeyed DifferentKeywayKW1
Knob/lever strikeRound cornerLever styleWave
Lock TypeKeyedMaterialSolid Brass
Product Weight (lb.)8.45 lbReturnable90-Day
Security/ANSI GradeN/ATotal Number of Keys Included2

Warranty / Certifications

Certifications and ListingsNo Certifications or ListingsManufacturer WarrantyLimited lifetime warranty

Questions & Answers

6Questions
caret
Q:What are the measurements for this lock? Will these work for a double door?
by|Jul 5, 2023
1 Answer
Answer This Question

A:  Thank you for reaching out to us and the following link will take you to the information you requested. chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://images.baldwinhardware.com/is/content/Baldwin/Prestige-Price-Catalog-Update-2022

by|Sep 26, 2023
    caret
    Q:My set is missing the 1 bolt that secures the lower end off the exterior handle to the door from the inside. I noticed after installing the entire set. How do I obtain a replacement bolt without dismantling and returning everything ?
    by|Nov 30, 2022
    1 Answer
    Answer This Question

    A:  For assistance with a missing part, please contact Baldwin Customer Service Representative at 1-800-566-1986 for further assistance.

    by|Nov 30, 2022
      caret
      Q:I looking for entry door pewter in color
      by|Feb 6, 2021
      1 Answer
      Answer This Question

      A:  Prestige Nautica Single Cylinder Slate Door Handleset with Tobin Door Lever Featuring SmartKey Security in the Slate Finish is Model #: 180NAHXTBL 16B SMT which is the second finish option closest to a pewter color.

      by|Feb 8, 2021
        caret
        Q:Is the deadbolt included the model 380 (or equivalent)?
        by|Aug 11, 2019
        2 Answers
        Answer This Question

        A:  The included deadbolt for Baldwin model # 91800-036 would be equivalent to the model 380 deadbolt.

        by|Aug 10, 2022
          1 found this answer helpful

          A:  Yes, the deadbolt is included. Arrived on time, functions well, and looks great!

          by|Aug 10, 2022
            1 found this answer helpful
            Showing 1-4 of 6

            Customer Reviews

            4.5 out of 5
            • 4.5 out of 110 reviews
            • 85% recommend this product
            Filter by:
            Showing 1-10 of 110 reviews
            Great Design!
            [This review was collected as part of a promotion.] Love the Satin Nickle Finish. The Nautica Handleset has a great Design. It comes with Smartkey, re- key your own lock. The Interior Handleset comes with a Tobin Lever. I can't wait until this product gets installed on my door. Highly recommend this Handelset.
            by
              • Recommended
              Not durable, Baldwin is ruining their reputation with this product
              The bottom doorknob in this product pulls back the latch with a very flimsy and thin metal plate rubbing against an equally flimsy half cylinder. It will wear out in 5-10 years and then the door will not open. Home depot does not sell a repair part.
              by
              Response from BaldwinNov 23, 2022
              Hello Bill,

              Thank you for your feedback and we place tremendous value on your experience. We are happy to assist you with troubleshooting support and replacements under warranty. For further assistance, please call our Support Team at 1-800-566-1986. We hope to hear from you soon!

              Thank you,
              Baldwin Hardware BaldwinHardware
                1 found this review helpful
                Attractive
                [This review was collected as part of a promotion.] The Baldwin Prestige Series “Nautica” handset, with its satin Nicole finish, is very attractive. It is very substantially constructed and would compliment any architectural style. The two part handset made for a very easy installation as a replacement handset. I would definitely recommend this product for both new and existing construction.
                by
                  • Recommended
                  Prestige Series
                  [This review was collected as part of a promotion.] The Baldwin Prestige Series door handle has a brushed nickel finish and really makes my front door look more inviting. The smart key technology makes it fast and easy to rekey this lock when needed. Installation was not complicated. The longer screws provided with the handleset provides added security.
                  by
                    • Recommended
                    Solid well-built handleset. The color looks great and I simply love it.
                    Solid well-built handleset. The color looks great and I simply love it.
                    by
                    • Verified Purchase
                    • Recommended
                    Poor durability. Had two of these fail within two years.
                    The insides of the handle latch mechanism are made from poor/soft metals. The first failure was on a cast piece that had a portion break off causing the thumb lever to stop working. The second failure was an internal casting with gear teeth that broke in half after 8 months, again causing the thumb lever to stop working. I replaced it wth another brand.
                    by
                    Response from BaldwinJun 7, 2017
                    Hello Mike,
                    We're very sorry to read that you have replaced your Prestige handleset. We do support our products for life under our lifetime warranty and would be happy to continue to support you. Please give our team a call at (800)566-1986 if there is anything we can do to help.
                    Thank you,
                    Baldwin Hardware BaldwinHardware
                      4 found this review helpful
                      Very secure
                      My Prestige single cylinder slate handset with Tobin lever features Smart key. This would have been a very easy change over project on a regular door latch replacement. Mine was a little tougher since I had to replace an old mortised door latch system. But no problem, the enclosed step by step instructions made this an easy install. It made my door secure, while looking great. I like the stylish look and it gives my whole door a very much needed upgrade.At the time of the photos, I hadn't finished the door patching from the old lock set.
                      by
                      • Recommended
                      1 found this review helpful
                      Prestigious indeed - looks great and well built
                      The Baldwin Prestige handle set and lever is exactly what I wanted on my front door. Go to the store and pick up a few of the boxes and you will find this one to be substantial. The internal mechanism for the handle button is well designed with metal gears and springs to insure it returns to the closed position. The lock features a kwikset rekeying capability which means you don't have to get a locksmith. The lock itself is solid, and the brass deadbolt extends an inch. Install was simple, the instructions were only decent in my mind. I had to re read a few of them to make sure I got it right. Such as the handle on the back has a screw to tighten but it should tell you that it doesn't need to be removed and go through the hole in the handle. I knocked a point on quality due to some of the fit and finish being less than perfect. A small ding on the lock and the base plate on the front handle was askew. (Fixed but loosening the bolt on the back and tightening it after you make it straight). Overall it is a great looking handle that makes my front door look excellent. I could only find one plastic part, a washer holding the bottom of the handle bolt, and it is hidden by a metal cover. Highly recommend and already had a few compliments from friends used to the old door handle.
                      by
                      • Recommended
                      2 found this review helpful
                      PRESTIGE NAUTICA SINGLE CYLINDER SATIN NICKEL HANDLESET WITH TOBIN LEVER FEATURING SMARTKEY
                      We just had the house painted, inside and out. We have been in our house for 22-years and it was time to replace all door hardware throughout the house, including the front door. We wanted quality hardware and found it at Home Depot.. The Baldwin Satin-NIckel handlesets (need 2 of them) are attractive, soild and they look great. The interior handles also matched the other indoor handles replaced with our renovations. -- My wife loves them... JR''' Oviedo, FL
                      by
                      • Pro
                      • Verified Purchase
                      • Recommended
                      4 found this review helpful
                      Baldwin's warranty covers thumb latch
                      I bought this handleset in 2015. Nine years later, thumb latch became floppy and stopped fully retracting the latch. Baldwin has a limited lifetime warranty. So, I called Baldwin. They gave me a reference number and email to reply to with pictures of front, back and side of handleset. A few weeks later, I received a new thumb latch and inner guts to replace the worn parts. Works perfectly again.
                      by
                        • Recommended
                        Showing 1-10 of 110 reviews
