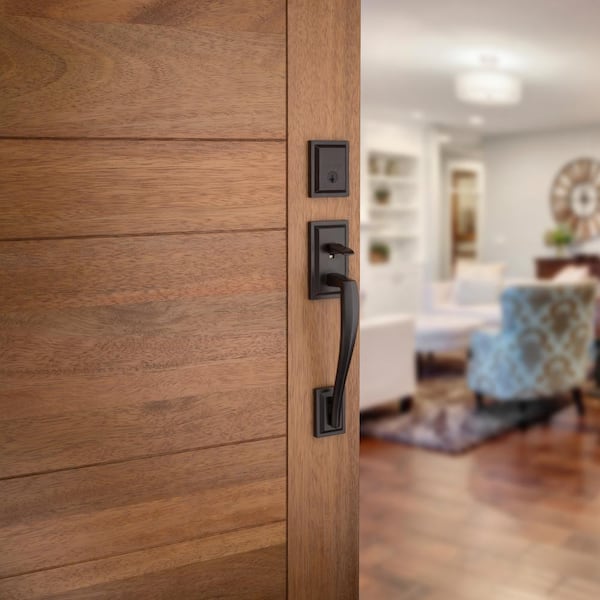

Torrey Pines Venetian Bronze Low Profile Single Cylinder Entry Door Handleset w/ Torrey Door Handle ft SmartKey Security

$194.00
Apply Now
Pay $169.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • SmartKey Security re-keying allows you to re-key lock yourself
  • Universal lever design suitable for right- and left-handed doors
  • Designed to work with the Kwikset (KW1) keyway
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details
Baldwin SmartKey

Security Made Convenient

SmartKey Security features re-key technology, which allows you to re-key your locks yourself in seconds, because we realize the person who has your key today may not be the same person you want to have your key tomorrow.

Lock on the door

Baldwin SmartKey Security

Prestige's SmartKey Security is designed to protect against common types of break-ins to keep your family safe. SmartKey Security is kick-in resistant, bump proof, pick resistant, drill resistant, and saw resistant.

Easily re-key your locks

Re-Key as Easy
as 1-2-3

Before you start re-keying, you must have your functioning key, your new key, and the SmartKey Learn tool.

Step 1 Key in door

Step 1

Insert the key that currently operates your lock, and rotate it 90 degrees clockwise.

Step 2 Key in door

Step 2

A) Insert the SmartKey tool fully and firmly into the SmartKey hole.
B) Remove the SmartKey tool and the current key.

Step 3 Key in door

Step 3

A) Fully insert your new key into the lock and rotate it 180 degrees.
B) Rotate the new key 90 degrees back to the starting position, and remove it. Your lock is now re-keyed to your new key, and your old key will no longer operate the lock.

Saw

Saw Proof

Provides strong resistance against sophisticated forced entry techniques.

Drill

Drill Protection

The patented design of SmartKey Security provides enhanced protection against drilled entry.

Pick

Pick Proof

Advanced SmartKey Security protects against undetectable entry methods such as lock picking.

Boot

Bump Proof

The BumpGuard component of a SmartKey Security lock incorporates a side locking bar to provide protection against lock bumping techniques.

About This Product

The Prestige Series offers affordable luxury. It is our most accessible option available in retail stores across the nation; we know that just good isn't good enough to carry the Baldwin name. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style.

Highlights

  • Baldwin Prestige offers effortless, accessible style and luxury with superior security
  • Traditional inspired - low profile lock design shown in a venetian bronze finish
  • Lifetime mechanical and finish warranty
  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • Fits standard door preparations: 1-3/8 in. to 1-3/4 in. T
  • Universal lever fits both right handed and left handed doors
  • SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
  • Return Policy

Product Information

Internet # 305051209

Model # 180TPHXTOL11PSL

Store SKU # 1004697085

Additional Resources

Shop All Baldwin

Specifications

Dimensions: H 17.75 in, W 2.66 in, D 2.91 in

Dimensions

Assembled Depth (in.)

2.91 in

Assembled Height (in.)

17.75 in

Assembled Width (in.)

2.66 in

Backset Size (in.)

Adjustable

Deadbolt Bore Hole Diameter (in.)

1 in

Deadbolt Cross Bore Diameter (in.)

2.125 in

Deadbolt Strike Height (in.)

2.25 in

Deadbolt Strike Width (in.)

1 in

Deadbolt Throw Length (in.)

1 in

Deadbolt Trim Ring Diameter (in.)

2.75 in

Handle grip length (in.)

1

Inside top plate length (in.)

1

Inside top plate width (in.)

1

Knob/lever bore hole diameter (in.)

1

Knob/lever cross bore diameter (in.)

2.125

Knob/lever housing height (in.)

2.75

Knob/lever housing width (in.)

2.75

Knob/lever strike height (in.)

2.25

Knob/lever strike width (in.)

1

Knob/lever throw length (in.)

.5

Lever Grip Length (in.)

4.28 in

Maximum Door Thickness (in.)

2.25 in

Minimum Door Thickness (in.)

1.75 in

Outside bottom handle plate length (in.)

13.09

Outside bottom handle plate width (in.)

2.66

Outside key plate length (in.)

3.41

Outside key plate width (in.)

2.66

Outside top handle plate length (in.)

3.41

Outside top handle plate width (in.)

2.66

Projection (in.)

2.91 in

Details

Application Type

Entry

Commercial/Residential

Residential

Deadbolt strike

Round corner

Deadbolt Type

Single Cylinder Deadbolt

Door Handing

Universal

Door Lock Style

Classic

Door Locks & Knobs Product Type

Keyed Handlesets

Electronic/Mechanical

Mechanical

Features

Adjustable Backset, Kwikset SmartKey

Finish

Venetian Bronze

Handleset Product Type

2 Piece Front & Back

Hardware Color Family

Bronze

Hardware Finish Family

Bronze

Included

Hardware, Installation Instructions

Keying Type

Keyed Different

Keyway

KW1

Knob/lever strike

Round corner

Lever style

Straight

Lock Type

Keyed

Material

Metal

Product Weight (lb.)

10.6 lb

Returnable

90-Day

Security/ANSI Grade

N/A

Total Number of Keys Included

2

Warranty / Certifications

Certifications and Listings

No Certifications or Listings

Manufacturer Warranty

Lifetime mechanical and finish warranty

Questions & Answers

22Questions
caret
Q:Will this handle set work on a 2 inch thick iron door without a thick door extension kit?
by|Dec 20, 2023
1 Answer
Answer This Question

A:  Thank you for contacting us. Since your door is 2" thick you need the additional thick door to install the product you have. Please contact Baldwin Hardware at 800.566.1986 and they will be able to help you with your inquiry.

by|Dec 20, 2023
    caret
    Q:Is this an ANSI level 2 lockset?
    by|Jul 23, 2023
    1 Answer
    Answer This Question

    A:  Thank you for contacting us. The Torrey Pines Deadbolt offers a Grade 2 rating.

    by|Jul 24, 2023
      caret
      Q:What is the measurement from center knob to hole for bottom of handle? Trying to replace existing handle and don?t want to drill new hole and have open hole
      by|May 9, 2023
      1 Answer
      Answer This Question

      A:  Thank you for reaching out to us. The lower thru-bolt is adjustable from 8-3/8" to 9-7/8" from the center of the latch to the decorative screw cover.

      by|May 9, 2023
        caret
        Q:I have 44mm thick door.I should buy or not?
        by|May 6, 2023
        1 Answer
        Answer This Question

        A:  Thank you for contacting us. Yes the product will work with your door thickness.

        by|May 9, 2023
          Showing 1-4 of 22

          Customer Reviews

          4.8 out of 5

          • 4.8 out of 103 reviews
          • 96% recommend this product
          Filter by:
          Showing 1-10 of 103 reviews
          Fantastic quality. Instructions were well-written and easy....
          Fantastic quality. Instructions were well-written and easy.
          by
          • Verified Purchase
          This lockset was the perfect completion for my new front door installation. The hardware is heavy...
          This lockset was the perfect completion for my new front door installation. The hardware is heavy duty and feels well made. Installation and finish are great. It was also easy to "rekey" with the program feature. I really like the look and feel of this lock and do recommend it.
          by
          • DIY
          • Verified Purchase
          • Recommended
          1 found this review helpful
          Great looking product that can be keyed alike to other kwikset locks.
          Great looking product that can be keyed alike to other kwikset locks.
          by
          • DIY
          • Verified Purchase
          • Recommended
          2 found this review helpful
          by
          • Verified Purchase
          by
          • Verified Purchase
          Handyman had a difficult time installing this one.
          by
          • Verified Purchase
          Beautiful addition to my door. It is durable and has a nice weight and feel.
          by
          • Verified Purchase
          Easy to install. Looks good. Works well.
          by
          • Verified Purchase
          • Verified Purchase
          Replaced old Kwikset. Easy to follow instructions and only one extra hole needed at bottom to anchor handle. Baldwin made it easy for the added hole to match up if is existing ( or not exactly centered) since the hardware easily adjusts to compensate.. Great look and solid feel. Lock itself seems a bit tricky when pulling the key out but will try to reset locking mechanism with reset key..
          by
          • Verified Purchase
