Haiku L - Smart Indoor Ceiling Fan, 52" Diameter, Cocoa/Black, Integrated LED (2700K), Universal Mount with 5" Downrod

$75000
Apply Now
Pay $700.00 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Control with remote, mobile app, or voice via Alexa or Google
  • 10 fan settings include 7 speeds, timer, sleep and Whoosh modes
  • 16 LED brightness settings
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

Bid farewell to drooping paddle fans with their pull chains and constant rattling-there's a calmer, cooler, more convenient way to stay comfortable. Haiku L delivers powerful airflow without the noise and features a minimalist modern design for luxury that looks great and feels even better Haiku L's whisper-quiet EC motor and three-bladed design are incredibly efficient, providing cooling comfort at a fraction of the cost of A/C. In the mid-afternoon heat, Haiku L's airflow makes people feel up to 10 °F (6 °C) cooler, allowing users to raise their thermostat setpoints and reduce A/C usage while maintaining personal comfort within their spaces. Stylish and efficient, the Haiku L by Big Ass Fans adds a touch of modern sophistication to any space.
  • Provides coverage for spaces 15 ft. x 15 ft. with flat or sloped ceilings up to 33 degree pitch 8 ft. - 11 ft. tall
  • Control with included handheld remote, free mobile app or with voice control through Amazon Alexa or Google Assistant
  • Every Haiku L features precision-balanced airfoils and is sound tested to make sure your fan will never wobble, rattle or click
  • Silent EC motor
  • 11 settings - 7 speeds, sleep mode, whoosh mode (which simulates natural breezes), eco mode (which optimizes performance and efficiency) and timer
  • No bulbs required; the integrated LED light emits a warm white color and is brighter than a 60-Watt bulb
  • 16 dimmable LED light settings
  • 2 LED lens covers included: frosted and smokey
  • Light life expectancy: 50,000 hours
  • Universal mount and 2 extension options included (6 in. and 12 in.)
  • Operating voltage and frequency: 100-120 VAC, 1-phase, 60Hz
  • Easy installation with step-by-step instructions included - no balancing necessary
  • Indoor use only
  • 5 year manufacturer warranty
  • Return Policy
  • California residents
caret

Specifications

Dimensions: H 11.4 in, W 52 in, D 52 in

Dimensions

Assembled Depth (in.)52 inAssembled Height (in.)11.4 in
Assembled Width (in.)52 inDownrod Length (in.)6
Fan Blade Length (in.)24.6 inFan Blade Span (in.)52 in
Fan Blade Width (in.)8.7 in

Details

Blade ColorCocoa BambooBlade Color FamilyDark Brown, Medium Brown, Other
Ceiling Fan SizeMediumCeiling Fan TypeBasic
Color FamilyWoodColor TemperatureAmber, Bright White, Cool White, Daylight, Soft White, Warm White
Commercial/ResidentialCommercial, ResidentialCompatible Bulb TypeIntegrated LED
Control TypeRemote IncludedDamp/Wet RatingDry Rated (Indoor)
Fan Blade MaterialPlasticFeaturesDC Motor, Frosted Glass, Light Kit Compatible, Reversible Motor, Timer
Fixture Color FamilyBlackFixture Color/FinishCocoa/Black
IncludedAdjustable Height, Angle Mount Hardware, Conversion Kit Included, Downrod Included, Hardware Included, Light Bulb(s) Included, Light Kit Included, Low Ceiling Adaptor, Mounting Hardware Included, Shade(s) Included, Sloped Ceiling Adaptor, TimerIndoor/OutdoorIndoor
Light Bulb Type IncludedIntegrated LEDLight TypeIntegrated
Max. Airflow (CFM)5604Motor Speed (RPM)182 RPM
Mounting TypeAngled Mount, Downrod MountNumber of Blades3 Blades
Number of Lights1 LightNumber of Speeds7
Power OptionsHardwiredProduct Weight (lb.)11 lb
Recommended Room SizeLarge RoomRemote AccessNo Remote Access
Requires Hub?No Hub RequiredReturnable90-Day
Smart HomeSmart Home EnabledSmart Home ProtocolWi-Fi
StyleRusticVoice Control Hub RequiredAlexa via Proprietary Bridge/Gateway Google Assistant via Proprietary Bridge/Gateway
Watt Equivalence60Works WithAlexa, Alexa, Google, Google Assistant, Proprietary App

Warranty / Certifications

Certifications and ListingsCSA Certified, ETL ListedManufacturer Warranty5 year manufacturer warranty
caret

Questions & Answers

31Questions
caret
Q:Is this model the HK4 that has 2231 lumens?
by|Jul 25, 2023
0 Answer
Answer This Question
caret
Q:What wires are required at the light switch? Can this replace an old light fixture without neutral or ground?
by|Jun 19, 2023
1 Answer
Answer This Question

A:  Thanks for asking! You can find the wiring scheme on page 3 of the installation guide at https://bigassfans.com/docs/haiku/haikul/haiku-l2-install-guide.pdf. If you need assistance, you can reach out to our technical support team at http://bigassfans.com/support/form/

by|Jun 20, 2023
    caret

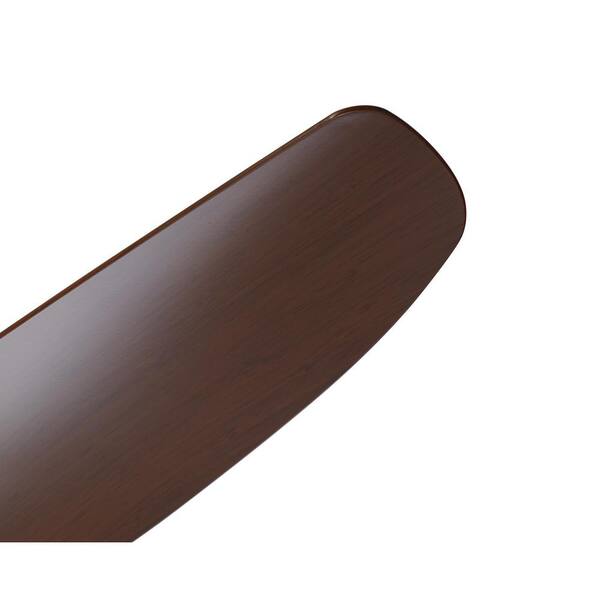

    Q:The color of the lighter wood blades looks completely different in the two pictures. One photo shows the blades almost a yellowish tone and the other pic, showing the end of the blade, makes it look more orangey. Which is correct please?
    by|Mar 9, 2022
    1 Answer
    Answer This Question

    A:  Hi! The caramel finish is more of a yellow tone. Feel free to reach out to us at 877-BIGFANS if you have any additional questions.

    by|Mar 11, 2022
      caret
      Q:Is this fan a DC or an EC motor? The description says its EC but in the specs it says DC, which one is it? Also, whats so special about this fan that makes it worth almost 1000$?
      by|Oct 10, 2021
      1 Answer
      Answer This Question

      A:  Hi! The Haiku L fan has a brushless DC motor. Please give our sales staff a call at 877-BIGFANS to hear about the many features that the Haiku L fan has!

      by|Oct 11, 2021
        Showing 1-4 of 31
        caret

        Customer Reviews

        4.5 out of 5
        (104)
        • 4.5
          out of 104 reviews
        • 84% recommend this product
        Filter by:
        Showing 1-10 of 104 reviews
        Very cool fans
        Purchased 2 of the black/cocoa L series fans. These are very nice looking and the blades are plastic but have a very nice wood grain matt finish with a slight shine. The two are mounted in our family room and will work together with one remote to turn on/off the light or fans. They also operate over WiFi via the Haiku phone app. Another resource for voice control is through a google nest hub. Very many methods of automation using schedules or smart heating or smart cooling features which makes these a cut above other fans. Installation was fairly easy with the mostly pictorial manual, although some info was left out such as the alignment arrow stickers which help when used properly. A little confused on the wrapping two of the wire connectors around the post, as when incorrect will cause the wire cap to wobble when slid down to cover the connectors. Once correct everything fits well. Network setup was very easy and works well. The cost is a bit high, but once you use these ultra quiet fans it is easy to justify.
        by
        • Verified Purchase
        • Recommended
        Best fan ever
        Best fan I have ever had! Easy installation and quiet.
        by
        • Verified Purchase
        • Recommended
        No noise.
        These fans are quiet when running. A great product
        by
        • Verified Purchase
        • Recommended
        3rd Big Ass Fan!
        Great fan. Third one for my house and they are great. A little struggle with the WiFi getting running but I will figure out
        by
        Response from Customer AdvocateSep 18, 2020
        Hi! We'll l get a member of our technical support team to reach out an assist with the wifi connection issue. Thanks for your review!
        • Verified Purchase
        • Recommended
        Great Quality
        Great build quality and moves air effectively and quietly. A nice step up from the Hunter fan that I was using.
        by
        • Verified Purchase
        • Recommended
        Big A$$ Awesome
        We have bought four haiku fans because we’re addicted. We tried cheaper versions but none moved the air like Haiku. It’s the only fan we’d ever buy.
        by
        • Verified Purchase
        • Recommended
        noisy, grinds, wifi doesnt work
        I coukd have 3 hampton bay fans for the same orice as this one. Super dissapointed. Noisy, hear every revolution, wont connect to wifi. Not at all what i expected. Plastic blades but I at least expxetd the motor to be silent. Reminds me of my HO train set gloing around the christmas tree in 1975 but noisier
        by
        Response from Big Ass FansSep 7, 2023
        Thanks for letting us know. When installed properly, our Haiku L is silent during operation. If you are having issues, our support team can help at Bigassfans.com/support/form. bigassfans
          • Recommended
          Great fan. Worth the price . Not made in china.
          by
            Love this fan. Super efficient and smooth. You get what you pay for. Ordered online and received in 2 days. Rock on!
            by
