Max Performance 4-Zone 36,000 BTU 3 Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt

$6176.17
/bundle
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Ductless mini AC with a heat pump ensures energy-efficient use
  • Timer and sleep mode for customized program settings
  • Digital display and remote control allow for convenient operation
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The Bosch Max Performance ENERGY STAR Climate Ductless Mini Split Series provides energy-efficient, on-demand comfort that is flexible, simple to install and easy to maintain. An exceptional alternative to traditional HVAC systems, mini splits heat and cool individual rooms by utilizing a combination of efficient technologies to lower electricity usage and decrease your electric bill. The mini split system is ideal for spaces where ductwork will not fit or is overly costly including additions, renovations and enclosed patios. The system is comprised of 3-parts; the indoor air handler, an outdoor condensing section and the piping line set. The main units are connected by the electrical, refrigerant and condensate piping line set through a 3 in. Dia hole in an exterior wall. The outdoor unit is charged with enough refrigerant to charge up to 35 ft. of line set.

Highlights

  • 36,000 BTU cooling and 36,000 BTU heating for powerful temperature control
  • 1,800 sq. ft. cooling and heating coverage for comfortable living
  • 3 speed fan adjusts to your particular heating or cooling needs
  • Timer and sleep mode allow you to custom program your settings
  • Digital display for precise temperature control
  • Follow me function on remote transmits actual temperature back to unit for exact temperature control
  • Easy to clean filter removes from top of air handler
  • Energy star certified for greater efficiency and lower energy costs

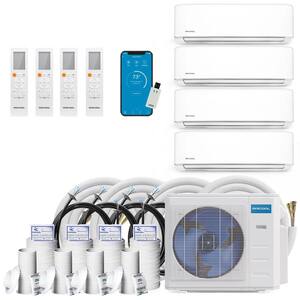

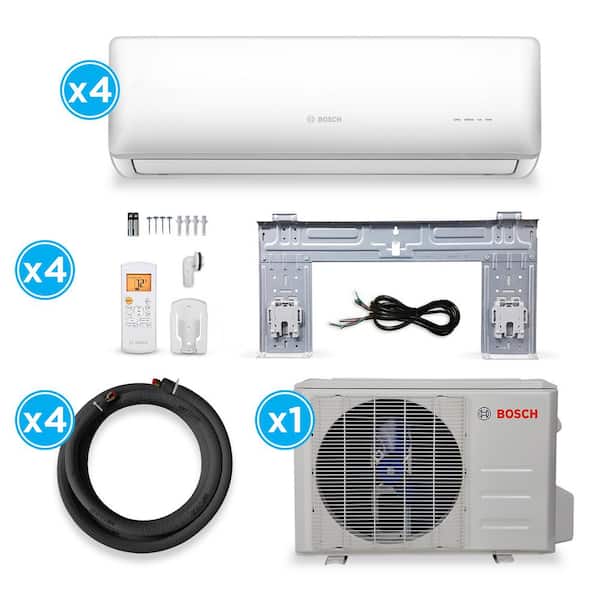

  • System includes 1 outdoor units, (4) 9000 BTU indoor units, 4 remote controls and (4) 25 ft. refrigerant line sets
  • 10-year residential warranty for peace of mind
  • Requires professional installation
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 312372800

Model # 8733954451

Specifications

Dimensions

Air handler depth (in.)

9.13

Air handler height (in.)

13.46

Air handler width (in.)

43.54

Condenser depth (in.)

16.1

Condenser height (in.)

31.89

Condenser width (in.)

37.24

Details

Air direction/circulation

2-way

Air handler weight (lb.)

29.1

Amperage (A)

35 A

BTU Cooling Rating

36000 BTU

BTU Heat Rating

36000 BTU

Color Family

White

Color/Finish

White

Condenser weight (lb.)

136.69

Coverage Area (sq. ft.)

1800

Decibel (Sound) Rating

20 dBA

Decibel Rating

20 dBA

Filter Type

Washable

Included

Heater, Remote Control, Self-diagnostic tools, Support Brackets

Line Set Length (Ft.)

25 ft x 25 ft x 25 ft x 25 ft

Mini Split Features

Auto cool, Automatic shutoff, Overload protection, Programmable, Sleep setting, Timer

Minimum Outdoor Temperature (F)

-22

Mount Location

Wall Mount

Number of cool settings

28

Number of Fan Speeds

3

Number of Tons

3 ton

Pack Size

1

Returnable

90-Day

Voltage (v)

230v

Wattage (watts)

2440

Zone Capacity

4 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified, Energy Star, UL Listed

Manufacturer Warranty

10 year compressor warranty, 5 year parts warranty

Seasonal Energy Efficiency Ratio (SEER)

22

Questions & Answers

6Questions
caret
Q:Is this precharhed?
by|Jul 13, 2023
0 Answer
Answer This Question
caret
Q:How many square feet will this unit cover?
by|Apr 17, 2023
1 Answer
Answer This Question

A:  lori, For system # 8733954451, a good rule of thumb is that a 3 Ton system will cover between 1,500 to 2,000 sq. ft. Many things can impact this coverage. Some of these are the ceiling height, the quality of the home's insulation, the number and size of windows and the amount of sun those windows receive, local climate, restrictions to air-flow inside the home, etc. A professional HVAC technician can evaluate your home and calculate the needed system size.

by|Apr 18, 2023
    caret
    Q:Does this package have the ability to configure lineset length? Ideally I need 1x 15, 2x25, and 1x50.
    by|Apr 17, 2023
    1 Answer
    Answer This Question

    A:  TheDude, This system # 8733954451 comes prepackaged with qty. 4 of 25 ft. line-sets.

    by|Jul 22, 2023
      1 found this answer helpful
      caret
      Q:How many heads did this system include. I need 3 zones
      by|Jan 17, 2023
      1 Answer
      Answer This Question

      A:  Jimmy, System model 8733954451 is a four zone system with qty. 4 of 9,000 BTU air handlers (heads). In a 36,000 BTU system, we do not offer a 3 zone option. We do offer several 3 zone options in a 27,000 BTU configuration.

      by|Apr 18, 2023
