Internet #100459572

Model #B1-20A F

Store SKU #405183

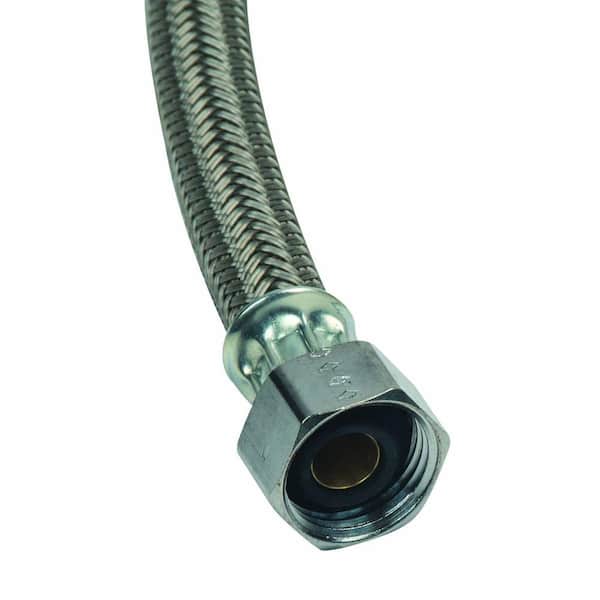

3/8 in. Compression x 1/2 in. FIP x 20 in. Braided Polymer Faucet Connector

  • For use with 1/2 in. MIP water connections
  • Designed to bend without kinking or crimping
  • Resists harsh water conditions
  • See More Details

Frequently Bought Together

+
+
Price:
$676

Product Overview

BrassCraft Speedi Plumb PLUS 3/8 in. compression inlet x 1/2 in. female iron pipe outlet x 20 in. of length flexible braided polymer water connector is corrosion resistant inside and out. Used to connect the water supply to your faucet, this connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements. The braided polymer fibers are designed to bend freely without kinking or crimping. Use to hookup cold or hot water supply.
  • California residents
  • 20 in. of length connector with 3/8 in. compression connection to water shut-off valve
  • Use with faucets with 1/2 in. MIP water connection; metal nut
  • Bends freely, without kinking or crimping, installation is easier, especially in cramped quarters
  • External corrosion resistance to common household, tile and glass cleaners
  • Internal corrosion resistance to harsh water conditions
  • 8-sided pneumatic crimp for greater dependability and reliable nut-to-hose connections
  • Temperature rating: 40° to 140°F, intermittent to 180°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.6/CSA B125.6
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Lines

3/8 in. Compression x 1/2 in. FIP x 16 in. Braided Polymer Faucet Connector
current product
3/8 in. Compression x 1/2 in. FIP x 20 in. Braided Polymer Faucet Connector
1/2 in. Compression x 1/2 in. FIP x 20 in. Braided Polymer Faucet Connector3/8 in. Compression x 1/2 in. FIP x 20 in. Vinyl Faucet Connector
Brand BrassCraftBrassCraftBrassCraft
Name3/8 in. Compression x 1/2 in. FIP x 16 in. Braided Polymer Faucet Connector3/8 in. Compression x 1/2 in. FIP x 20 in. Braided Polymer Faucet Connector1/2 in. Compression x 1/2 in. FIP x 20 in. Braided Polymer Faucet Connector3/8 in. Compression x 1/2 in. FIP x 20 in. Vinyl Faucet Connector
Price
$597
$676
$764
$920
Ratings
(2070)
(2070)
(149)
(5)
Product Length (in.)16 in20 in20 in20.375 in
Tube Diameter (in.)0.5500.5500.5500.500
Inlet Fitting End TypeCompressionCompressionCompressionCompression
Outlet Fitting End TypeFIPFIPFIPFIP
Outlet Diameter (In.)1/21/21/21/2
FeaturesFlexibleFlexibleFlexible,Lead FreeFlexible
Inlet Diameter (In.)3/83/81/23/8
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/8
Outlet Diameter (In.)
1/2
Product Depth (in.)
0.875
Product Length (in.)
20 in
Product Width (in.)
0.875
Tube Diameter (in.)
0.550

Details

Color Family
Stainless Steel
Color/Finish
Stainless Steel, Braided Polymer
Features
Flexible
Fitting Material
Brass
Inlet Fitting End Type
Compression
Maximum Pressure (PSI)
125
Outlet Fitting End Type
FIP
Pack Size
1
Plumbing Part Type
Supply Line
Returnable
180-Day

Warranty / Certifications

Certifications and Listings
CSA Certified,IAPMO Certified
Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

40Questions36Answers

Is no one concerned about, the very thing that pumps water you drink and prepare food with, has a...

Asked by John October 31, 2020
4
Answers

Have you considered a water filter on your faucet if this is being used in a kitchen?

do you have the ones for the pex lines

Asked by dave October 22, 2020
3
Answers

Not sure what your question means, but here goes. If you're looking for a similar hose but with PEX tubing in the middle, no, we don't. If you're looking to connect either end of the hose to any size of PEX, yes we have fittings that we could cobble into a connection between this hose and PEX tubing. We also have angle (& straight) stops that connect to PEX.

What is the difference between the Braided Polymer and Braided Stainless steel? Is one better tha...

Asked by Gokool August 19, 2020
3
Answers

The difference is the jacket material. Both are quite tough, but the braided polymer is much more resistant to crimping when bent in a tight circle.

would this fit on a garden hose?

Asked by Kat August 4, 2020
2
Answers

I don’t think so. A garden hose would have coarse threads. This has fine threads for internal plumbing use.

What is the warranty period? The warranty info provided does not specify a time period.

Asked by nick89 July 28, 2020
4
Answers

I could find no time limit except that, on the product, the label states: "Do not reuse connector. Inspect annually. Replace if deterioration is detected or after 12 years." This implies, at least to me, that the product should last at least 12 years. More interesting to me, though, is the admonition not to reuse the product, so I'd have to believe that the warranty extends until the first time the product is removed or 12 years, whichever is shorter. Personally, I've never experienced or heard of a failure of this product when installed on clean machined parts without defective threads.

Are these in stock at Brookwood store

Asked by John July 19, 2020
1
Answer

Hello John, This is BrassCraft and you would have to contact the help desk at Home Depot fr the availability in their store. Thank you, BrassCraft

how to connect a copper vent pipe to a sewer p trap

Asked by ben June 28, 2020
4
Answers

Great product. Easy to install for bathroom sinks.

How long is hose?

Asked by Kevin February 26, 2020
5
Answers

20 inches

Does anyone know if this PVC is safe for drinking water? Product mentions "our tough PVC tubing ...

Asked by LN February 16, 2020
5
Answers

This is not made from pvc. The items name is Faucet connector .

Is this a better choice to use for toilets since the nuts are metal verse the other one has a plastic nut

Asked by Mike January 31, 2020
5
Answers

These are NOT used on toilets. Toilet stringers have a plastic fitting on the toilet end.

3/8 in. Compression x 1/2 in. FIP x 20 in. Braided Polymer Faucet Connector - page 2

Customer Reviews

  • 2070 Customer Reviews
  • 4.8 out of 5 stars overall
94% of customers recommended.
Overall Ratings
5star-icon(1691)
4star-icon(269)
3star-icon(50)
2star-icon(19)
1star-icon(41)
Sort By:
Outstanding quality. Comes in a variety of lengths. Flexible but...
Outstanding quality. Comes in a variety of lengths. Flexible but not flimsy.
Was this helpful?
1
0
Easy to use, no leaks, release well turns...
Easy to use, no leaks, release well turns
Was this helpful?
0
0
This is all I use on kitchen faucets, and bathroom...
This is all I use on kitchen faucets, and bathroom faucets, 7 years straight, great product.
Was this helpful?
1
0
Just what I needed!
Quality :
5
Value :
5
Replacing the facets in my master bathroom in a 20 year old house, I was surprised to find copper pipes. I quick run to my local Home Depot and minutes later I had running water in both sinks. Very reasonable priced and easy to install. A very good quality item.
Was this helpful?
0
0
Works great!
Works great!
Was this helpful?
1
0
I have not found a better stringer but a mid-production change has caused a problem. The 1/2" com...
Ease of installation :
3
Quality :
5
Value :
3
I have not found a better stringer but a mid-production change has caused a problem. The 1/2" compression nut was made 1/8" thinner causing a problem starting the thread up with many higher-end faucets. Modification of the faucet or the stringer seal will be necessary. I have alerted Brasscraft to this issue.
Was this helpful?
1
0
Just what we needed ...
Just what we needed
Was this helpful?
0
0
The hose was very easy to install....
The hose was very easy to install.
Was this helpful?
0
0
Worked very well with new faucet installation. ...
Worked very well with new faucet installation.
Was this helpful?
0
0
Worked perfectly no leaks!
Worked perfectly no leaks!
Was this helpful?
0
0
