Internet #205217358

Model #CSSC1P-36

ProCoat 3/4 in. MIP x 3/4 in. FIP Angle Ball Valve x 36 in. Stainless Steel Gas Connector 5/8 in. O.D. (125,000 BTU)

Frequently Bought Together

+
+
Price:
$3628

Product Overview

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
  • California residents
  • 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating

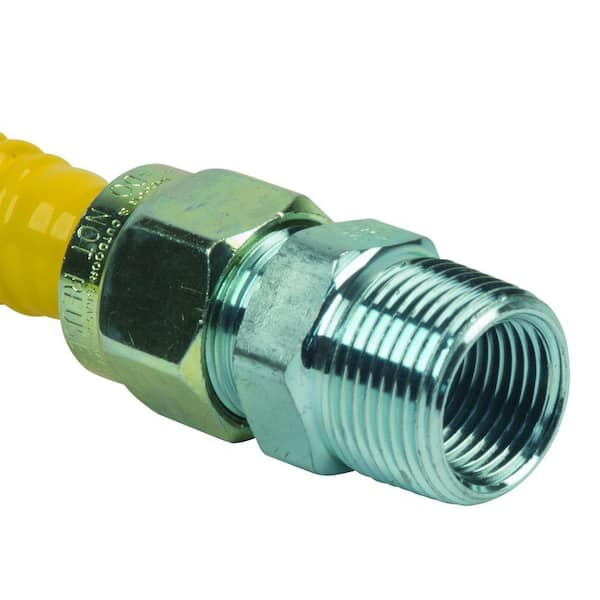

  • Includes: 3/4 in. MIP (tapped 1/2 in. FIP) steel fitting and 3/4 in. FIP brass angle gas ball valve
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Use with natural and LP (propane) gases
  • 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40° to 125°F
  • Pressure rating: 1/2 psi maximum
  • CSA certified

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Gas Fittings & Connectors

current product
ProCoat 3/4 in. MIP x 3/4 in. FIP Angle Ball Valve x 36 in. Stainless Steel Gas Connector 5/8 in. O.D. (125,000 BTU)
ProCoat 3/4 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU)ProCoat 1/2 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU)ProCoat 3/4 in. FIP x 3/4 in. MIP x 72 in. Stainless Steel Gas Connector 3/4 in. I.D. (173,900 BTU)
BrandBrassCraftBrassCraftBrassCraftBrassCraft
NameProCoat 3/4 in. MIP x 3/4 in. FIP Angle Ball Valve x 36 in. Stainless Steel Gas Connector 5/8 in. O.D. (125,000 BTU)ProCoat 3/4 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU)ProCoat 1/2 in. MIP x 3/4 in. FIP Angle Ball Valve x 48 in. Stainless Steel Gas Connector 5/8 in. O.D. (106,000 BTU)ProCoat 3/4 in. FIP x 3/4 in. MIP x 72 in. Stainless Steel Gas Connector 3/4 in. I.D. (173,900 BTU)
Price
$3628
$3655
$4128
$7135
Ratings
(1)
(0)
(0)
(0)
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inner diameter (in.)
0.5
Outer diameter (in.)
0.625
Product Depth (in.)
2.25
Product Height (in.)
36.98
Product Length (in.)
36.980 in
Product Width (in.)
2

Details

Connection type
FIP x MIP
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
.5
Maximum Working Temperature (F)
125
Minimum working temperature (F)
-40
Outer Material
Other
Product Weight (lb.)
1.4082 lb
Returnable
180-Day

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty
