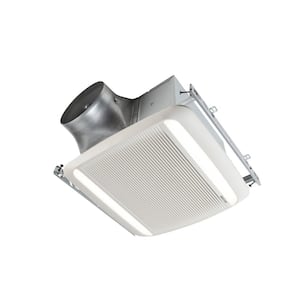

ULTRA GREEN XB Series 110 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR*

Apply Now
Pay $170.90 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Broan energy efficient, very quiet bathroom exhaust fan
  • Powerful enough for rooms (including bathroom) up to 105 sq. ft.
  • Easy to install and/or replace existing product for DIY'ers
  • View More Details
Store
0 in stock
caret

Product Details

Broan's XB110 ULTRA GREEN Series 110 CFM Ceiling Bathroom Exhaust Fan is recognized as ENERGY STAR Most Efficient 2017 as it delivers everything you wished for in a bath fan. Premium ventilation helps reduce airborne pollutants. It has extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for spot ventilation in humid bathrooms. They also work well providing continuous ventilation to meet various building codes and Green Building standards around the United States.
  • Shop all Broan-NuTone Bathroom Exhaust Fans
  • 110 CFM, effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Less than 0.3 sones for ultra quiet performance, you might not notice it's on
  • ULTRAQuick Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fasters, easiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a in.no guesswork in. installation to make the work fast and easy
  • ENERGY STAR Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
  • Comparable to NuTone Model XN110
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
caret

Specifications

caret

Questions & Answers

2Questions
caret
Q:Can the Broan XB series fans be run with existing wiring for a fan with an AC motor? Existing fa...
by|Dec 21, 2020
2 Answers
Answer This Question

A:  Model XB80 can be wired to a single pole switch. The fan and light will then only operate at the same time. If connected to a two function switch you can then operate the fan and light independently. If you have additional wiring questions please reach out to our Technical Support Team direct at 888-336-6151 they are available Monday – Friday from 8:30 AM to 7:00 PM EST.

by|Dec 21, 2020

    A:  Yes

    by|Apr 19, 2023
    caret
    Q:What are the length and width of this unit? Exact measurements please
    by|Jan 21, 2019
    2 Answers
    Answer This Question

    A:  The fan box is 10.5 inches by 11.5 inches. The height is 7.625 inches. These dimensions are just for the fan box itself and do not include the mounting frame. The frame is adjustable in one direction so that it can be attached between two ceiling joists.

    by|May 18, 2021

    A:  The housing measures 10-1/2" x 11-3/8" x 7-5/8". The grille measures 13" x 13-3/4"

    by|Jan 21, 2019
      Showing 1-2 of 2
      caret

      Customer Reviews

      4.3 out of 5
      (14)
      • 4.3
        out of 14 reviews
      • 75% recommend this product
      Filter by:
      Showing 1-10 of 14 reviews
      Terrible grille
      Just bought two during bathroom remodel. Grille springs are ridiculously cheap and hard to mount to fan box. Then arent strong enough to pull grille tight to ceiling. Faz n is quiet though.
      by
      Response from CustomerServiceBroanJan 7, 2019
      Thank you for taking the time to share your experience with us. We would be happy to send you a new set of grille springs out. Please contact Technical Support directly at 800-637-1453. We appreciate your time and look forward to your call.
        Installed this fan as a replacement for an older fan Not...
        Installed this fan as a replacement for an older fan Not sure this fan is worth the cost It is not loud but is much louder than the advertised sound rating
        by
        • Verified Purchase
        This is a very quiet fan. It has a delayed start which was disconcerting the first time I turned ...
        This is a very quiet fan. It has a delayed start which was disconcerting the first time I turned it on because I thought it was defective. But once you realize it takes three seconds for the fan to begin running, then all is good. I installed this as a retrofit. There are instructions for both new construction and retrofit. One criticism is that this mounts on a frame, which I like, between two ceiling joists. It is designed for the fan to slide along that frame so it can be located anywhere between the joists, which I also like. I just wish there was a better way to fix the location of the fan than to just crimp the frame with some pliers. This step is not mentioned in the instructions for the retrofit, but is for the new construction. One other criticism concerns the lack of a six inch to four inch reducer adapter so that you can use four inch flexible duct. It appears that some versions of this fan do come with the adapter, but not this one. It probably doesn't work to the full 110 CFM capacity with a four inch duct and it might be a tad noisier than the design specification, but that is what I already had and the run was only about four feet, so that's what I used. If you do need the adapter, be sure to get the specific adapter specified in the manual (part no. 99111513). I ordered it directly from the manufacturer's website as I could not find it at Home Depot. I looked at using various six inch to four inch reducers available and every one except the specified one would interfere with the built-in damper operation. The specified reducer has a longer six inch section than the others so that it doesn't interfere with the damper. I added a little gap filler foam around the perimeter of the fan box just so air from the attic would not be sucked into the fan. I'm very pleased with the completed installation. It's much quieter than the old fan and it really pulls the moisture out of the bathroom.
        by
        • DIY
        • Recommended
        4 found this review helpful
        Very quiet which is what I was looking for....
        Very quiet which is what I was looking for.
        by
        • Verified Purchase
        1 found this review helpful
        Rating provided by a verified purchaser...
        Rating provided by a verified purchaser
        by
        • Verified Purchase
        Rating provided by a verified purchaser...
        Rating provided by a verified purchaser
        by
        • Verified Purchase
        5 Star Review
        Rating provided by a verified purchaser
        by
        • Verified Purchase
        Worked for about 9 months of use...now dead
        This went in a new apartment build. Worked for about 9 months and suddendly died. Power to unit, but with no schematics here on this site it is problematic to trouble shoot. Stupid city-mandated code required such a complex unit. What is wrong with a switch controled ON/OFF fan like has been used for decades? Now I have a steamy bath with a very complex DEAD fan. Additionally, 100cfm barely clears a very small bath. On the upside, it is very quite. So quiet now that i dont even hear it. Of course it's now broken, so .... Please post schematics for this unit or allow me to return for a replacement.
        by
        Response from CustomerServiceBroanOct 16, 2019
        We appreciate the time you took to share your experience with the XB110. We are disappointed to hear you are having trouble with your unit. The Specifications and Installation Guide are available under the documents section on the product page. Please give the Broan Technical Support Team a call at 1-800-637-1453 so we can help troubleshoot and get your unit running properly again. We look forward to speaking with you soon. Thank you.
          Overall, I like the unit. My only complaint is...
          Overall, I like the unit. My only complaint is that there is a 5 second delay before fan starts.
          by
          • Verified Purchase
          1 found this review helpful
          Much quieter than expected. Used in a skylight tunnel for additional venting.
          Much quieter than expected. Used in a skylight tunnel for additional venting.
          by
          • Verified Purchase
          • Recommended
          Showing 1-10 of 14 reviews

          Frequently Bought Together

          Compare Similar Bath Fans

          ULTRA GREEN XB Series 50 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR*
          current product
          ULTRA GREEN XB Series 110 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR*
          QTDC Series 110 CFM-150 CFM Bathroom Exhaust Fan, ENERGY STARULTRA GREEN ZB Series 110 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with Humidity Sensing, ENERGY STAR*
          BrandBroan-NuToneBroan-NuToneBroan-NuToneBroan-NuTone
          NameULTRA GREEN XB Series 50 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR*ULTRA GREEN XB Series 110 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR*QTDC Series 110 CFM-150 CFM Bathroom Exhaust Fan, ENERGY STARULTRA GREEN ZB Series 110 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with Humidity Sensing, ENERGY STAR*
          Price
          Add to Cart to See Price
          Add to Cart to See Price
          $20100
          $31900
          Ratings
          (10)
          (14)
          (21)
          (2)
          Air Volume (CFM)50110110,130,150110
          Fan Sound Level (Sones)0.30.30.3,0.4,0.70.3
          Housing Width (in.)11.37511.37511.37511.375
          Housing Length (in.)10.510.510.510.5
          Maximum Room Size (sq. ft.)45100145100
          FeaturesRoomside InstallationRoomside InstallationAdjustable Fan SpeedAdjustable Fan Speed,Humidity Sensing,Roomside Installation
          Installation TypeCeilingCeilingCeilingCeiling
          Grill ShapeRectangleRectangleRoundRectangle
          IncludedNo Additional Items IncludedNo Additional Items IncludedHardwareNo Additional Items Included
          Mount TypeRecessedRecessedRecessedRecessed
          View ProductView ProductView ProductView Product
