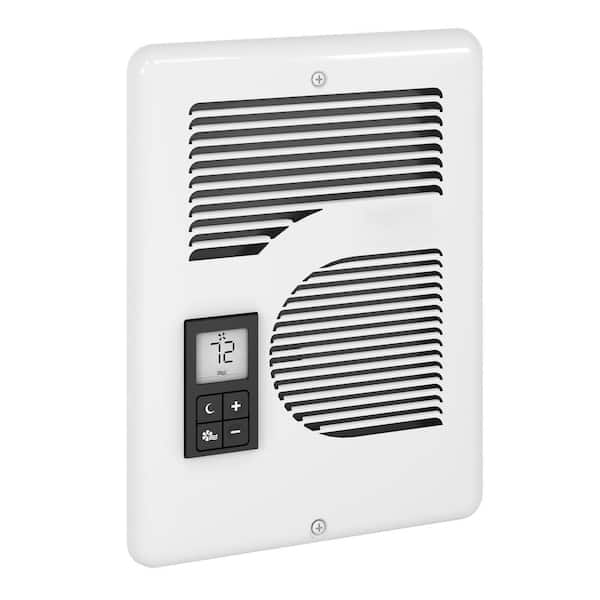

240/208/120-volt 1,600/1,500/1,000-watt Energy Plus In-wall Fan-forced Electric Heater in White with Digital Thermostat

$26400
/box
Apply Now
Pay $239.00 $264 when you open a new card. info
Apply for a Home Depot Consumer Card
  • Uses up to 30% less energy than regular in-wall electric heaters
  • Built-in digital thermostat and simple buttons for settings
  • Intelligent controls maintain room temperature to within 1 degree
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$26400

Product Overview

Use up to 30% less energy and experience more comfort with precise, consistent temperature control. The Energy Plus in-wall fan-forced electric heater uses an intelligent control and auto adjusting fan speed to maintain the desired temperature for your room within 1°. Delivering only the heat you need for maximum efficiency. This hard-wired electric heater warms small to medium sized rooms up to 175 sq. ft.
  • Hard-wired multi-volt fan heater with unique power supply smart sensor takes all the guesswork out of installation by auto-adjusting the heater voltage to match your voltage supply. No need to worry about damaging the heater or whether you have 120-Volt, 208-Volt, or 240-Volt wiring. Before purchasing, confirm your power supply voltage to determine the heater's output (check your breaker, use a voltmeter, or refer to your old heater's label if replacing).
  • Multi-Volt options: 1,600-Watt output at 240 volts (6.7 Amps, 5,460 BTUs); 1,500-Watt output at 208 volts (7.2 Amps, 5,120 BTUs); 1,000-Watt output at 120 volts (8.3 Amps, 3,412 BTUs)
  • Easily update old heaters: uses same wall can as many Cadet Com-Pak series units, so no wall patchwork or additional wall board cut outs should be required
  • Choose the correct heater size for your space. Simply match your area to the corresponding wattage (see chart below)
  • Space-saving, recess-mount design. Rough-in dimensions: 8 in. W x 10.125 in. H x 4 in. D
  • A complete unit including wall can, heater, white grille and built-in digital thermostat
  • Smooth, powder coat white paint finish that is resistant to corrosion, scratches and fading
  • A high-temperature safety device switches heater off if normal operating temperatures are exceeded
  • Complete unit includes wall can, heat box and grill and digital thermostat
  • Tamper-proof settings let you lock in minimm and maximum temperature points and a fan-only mode lets you circulate air year round without heat
  • ETL listed in the US and Canada for safety compliance
  • 5-year limited warranty



  • California residents

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Electric Wall Heaters

Amaze 2047 BTU Maxi Electric Wall Convection Room Heater
current product
240/208/120-volt 1,600/1,500/1,000-watt Energy Plus In-wall Fan-forced Electric Heater in White with Digital Thermostat
16-13/32 in. x 20-19/64 in. 2,000-Watt High-Capacity Wall Heater in WhitePAW 2250-Watt 7677 BTU Electric Wall Heater 240-Volt with Ultra Grill White
BrandAmaze- HeaterCadetBroan-NuToneKing Electric
NameAmaze 2047 BTU Maxi Electric Wall Convection Room Heater240/208/120-volt 1,600/1,500/1,000-watt Energy Plus In-wall Fan-forced Electric Heater in White with Digital Thermostat16-13/32 in. x 20-19/64 in. 2,000-Watt High-Capacity Wall Heater in WhitePAW 2250-Watt 7677 BTU Electric Wall Heater 240-Volt with Ultra Grill White
Price
$12900
$26400
/box
$27500
$32100
Ratings
(147)
(240)
(30)
(2)
Heater TypeRadiantFan HeatersUnventedFan Heaters
Voltage (volts)120 V240 V240 V240 V
Room Size (sq. ft.)50-150250-350350-500350-500
Wattage (watts)600 W1600 W2000 W2250 W
Heating Technology TypeConvectionForced AirForced AirForced Air
Fuel TypeElectricElectricElectricElectric
Area Heated (Sq. Ft.)225200200225
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)4.8 inProduct Height (in.)12 in
Product Width (in.)9 in

Details

Accessories IncludedNoACLI Safety PlugNo
Amperage (amps)8.3 AAnti-freeze settingYes
Area Heated (Sq. Ft.)200Automatic shutoffYes
ColorWhiteColor FamilyWhites
Fuel TypeElectricHeat rating (BTU/hour)5459 Btu/h
Heater ControlsElectronicHeater TypeFan Heaters
Heating Product TypeElectric Wall HeaterHeating Technology TypeForced Air
Indoor/OutdoorIndoorInstallationRecessed
Number of Heat SettingsVariableOscillationNo
Pack Size1Product Weight (lb.)4.5 lb
Remote AccessNo Remote AccessRemote ControlNo
Returnable90-DayRoom Size (sq. ft.)250-350
StyleBasicsThermostatYes
Timer IncludedNoVoltage (volts)240 V
Wattage (watts)1600 W

Warranty / Certifications

Certifications and ListingscETLusManufacturer Warranty5 yr limited
