Internet #206644539

Model # 10020C

0743369710028

California Air Tools

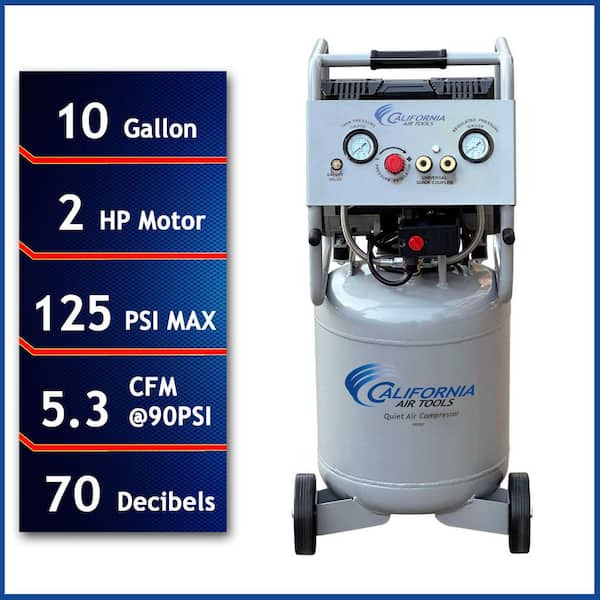

10 Gal. 2.0 HP Ultra Quiet and Oil-Free Electric Air Compressor

  • Engineered to provide best-in-class power and performance
  • Increases duty cycle for longer, more efficient run times
  • Ultra-quiet operation offers less noise with plenty of power
$ 431 57
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

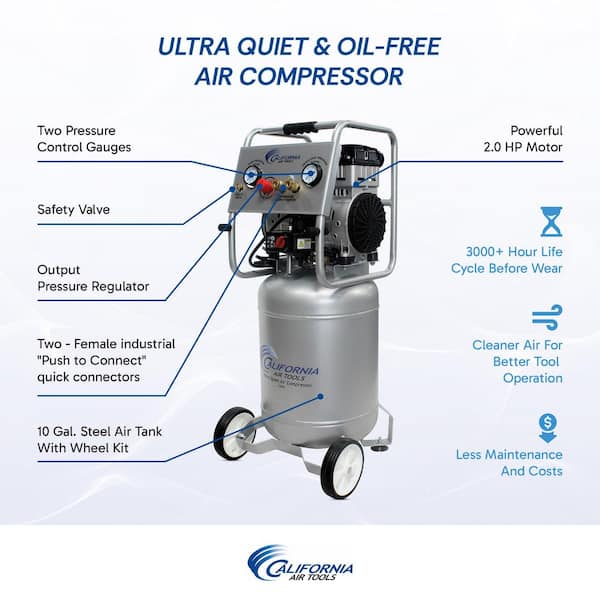

  • Engineered to provide best-in-class power and performance
  • Increases duty cycle for longer, more efficient run times
  • Ultra-quiet operation offers less noise with plenty of power
This California Air Tools 10-gallon electric air compressor delivers reliable power and air flow with less maintenance and noise. Operating at an ultra-quiet 70 dBA, the powerful 2.0 HP (SP-9421) motor produces 1680 RPM creating less noise and less wear. It is designed to increase duty cycle and allow for longer, continuous run times. Enabling a variety of use in varying temperatures and uneven terrains, the machine’s oil-free dual piston pump system is engineered for high performance and durability. The oil-free function extends the compressor’s life cycle to more than 3,000 hours before wear compared to comparable compressor’s 100 hours or fewer. You can start this compressor using fewer starting amps with the easy-start valve, which also releases a small amount of air from the pump to produce a no-load condition that allows the motor to spin freely. The included wheel kit permits easy movement around your jobsite, shop or garage.
  • Ultra quiet at only 70 dB
  • Powerful 2.0 HP motor
  • Oil-free pump produces cleaner air for better tool operation, less maintenance and costs
  • 6.40 CFM at 40 PSI; 5.30 CFM at 90 PSI
  • 10-gallon steel air tank with wheel kit makes it easy to move around
  • 125 PSI maximum pressure
  • Low amp draw - 14 amp
  • Two pressure control gauges and two universal 1/4 in. quick connectors
  • Easy-start valve for less starting amperage
  • Thermal overload protector
  • Time to fill tank from empty to full - 120 seconds
  • 110-Volt / 60 Hz
  • Recovery time from 95 PSI to 125 PSI in 25 seconds
  • Less heat which dissipates more efficiently
  • L (16 in.) x W (15.1 in.) x H (35.9 in.) - 82.5 lbs.
  • Comes complete with wheel kit and two air filters
  • California residents see Prop 65 WARNINGS

Product Overview

  • Engineered to provide best-in-class power and performance
  • Increases duty cycle for longer, more efficient run times
  • Ultra-quiet operation offers less noise with plenty of power
Model #: 10020C
Internet #: 206644539

This California Air Tools 10-gallon electric air compressor delivers reliable power and air flow with less maintenance and noise. Operating at an ultra-quiet 70 dBA, the powerful 2.0 HP (SP-9421) motor produces 1680 RPM creating less noise and less wear. It is designed to increase duty cycle and allow for longer, continuous run times. Enabling a variety of use in varying temperatures and uneven terrains, the machine’s oil-free dual piston pump system is engineered for high performance and durability. The oil-free function extends the compressor’s life cycle to more than 3,000 hours before wear compared to comparable compressor’s 100 hours or fewer. You can start this compressor using fewer starting amps with the easy-start valve, which also releases a small amount of air from the pump to produce a no-load condition that allows the motor to spin freely. The included wheel kit permits easy movement around your jobsite, shop or garage.

  • Ultra quiet at only 70 dB
  • Powerful 2.0 HP motor
  • Oil-free pump produces cleaner air for better tool operation, less maintenance and costs
  • 6.40 CFM at 40 PSI; 5.30 CFM at 90 PSI
  • 10-gallon steel air tank with wheel kit makes it easy to move around
  • 125 PSI maximum pressure
  • Low amp draw - 14 amp
  • Two pressure control gauges and two universal 1/4 in. quick connectors
  • Easy-start valve for less starting amperage
  • Thermal overload protector
  • Time to fill tank from empty to full - 120 seconds
  • 110-Volt / 60 Hz
  • Recovery time from 95 PSI to 125 PSI in 25 seconds
  • Less heat which dissipates more efficiently
  • L (16 in.) x W (15.1 in.) x H (35.9 in.) - 82.5 lbs.
  • Comes complete with wheel kit and two air filters
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Engineered to provide best-in-class power and performance
  • Increases duty cycle for longer, more efficient run times
  • Ultra-quiet operation offers less noise with plenty of power
This California Air Tools 10-gallon electric air compressor delivers reliable power and air flow with less maintenance and noise. Operating at an ultra-quiet 70 dBA, the powerful 2.0 HP (SP-9421) motor produces 1680 RPM creating less noise and less wear. It is designed to increase duty cycle and allow for longer, continuous run times. Enabling a variety of use in varying temperatures and uneven terrains, the machine’s oil-free dual piston pump system is engineered for high performance and durability. The oil-free function extends the compressor’s life cycle to more than 3,000 hours before wear compared to comparable compressor’s 100 hours or fewer. You can start this compressor using fewer starting amps with the easy-start valve, which also releases a small amount of air from the pump to produce a no-load condition that allows the motor to spin freely. The included wheel kit permits easy movement around your jobsite, shop or garage.
  • Ultra quiet at only 70 dB
  • Powerful 2.0 HP motor
  • Oil-free pump produces cleaner air for better tool operation, less maintenance and costs
  • 6.40 CFM at 40 PSI; 5.30 CFM at 90 PSI
  • 10-gallon steel air tank with wheel kit makes it easy to move around
  • 125 PSI maximum pressure
  • Low amp draw - 14 amp
  • Two pressure control gauges and two universal 1/4 in. quick connectors
  • Easy-start valve for less starting amperage
  • Thermal overload protector
  • Time to fill tank from empty to full - 120 seconds
  • 110-Volt / 60 Hz
  • Recovery time from 95 PSI to 125 PSI in 25 seconds
  • Less heat which dissipates more efficiently
  • L (16 in.) x W (15.1 in.) x H (35.9 in.) - 82.5 lbs.
  • Comes complete with wheel kit and two air filters
  • California residents see Prop 65 WARNINGS

Product Overview

  • Engineered to provide best-in-class power and performance
  • Increases duty cycle for longer, more efficient run times
  • Ultra-quiet operation offers less noise with plenty of power
Model #: 10020C
Internet #: 206644539

This California Air Tools 10-gallon electric air compressor delivers reliable power and air flow with less maintenance and noise. Operating at an ultra-quiet 70 dBA, the powerful 2.0 HP (SP-9421) motor produces 1680 RPM creating less noise and less wear. It is designed to increase duty cycle and allow for longer, continuous run times. Enabling a variety of use in varying temperatures and uneven terrains, the machine’s oil-free dual piston pump system is engineered for high performance and durability. The oil-free function extends the compressor’s life cycle to more than 3,000 hours before wear compared to comparable compressor’s 100 hours or fewer. You can start this compressor using fewer starting amps with the easy-start valve, which also releases a small amount of air from the pump to produce a no-load condition that allows the motor to spin freely. The included wheel kit permits easy movement around your jobsite, shop or garage.

  • Ultra quiet at only 70 dB
  • Powerful 2.0 HP motor
  • Oil-free pump produces cleaner air for better tool operation, less maintenance and costs
  • 6.40 CFM at 40 PSI; 5.30 CFM at 90 PSI
  • 10-gallon steel air tank with wheel kit makes it easy to move around
  • 125 PSI maximum pressure
  • Low amp draw - 14 amp
  • Two pressure control gauges and two universal 1/4 in. quick connectors
  • Easy-start valve for less starting amperage
  • Thermal overload protector
  • Time to fill tank from empty to full - 120 seconds
  • 110-Volt / 60 Hz
  • Recovery time from 95 PSI to 125 PSI in 25 seconds
  • Less heat which dissipates more efficiently
  • L (16 in.) x W (15.1 in.) x H (35.9 in.) - 82.5 lbs.
  • Comes complete with wheel kit and two air filters
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
15.1
Product Height (in.)
35.9
Product Width (in.)
16

Details

Air Delivery SCFM @ 40PSI
6.4
Air Delivery SCFM @ 90PSI
5.3
Amperage (amps)
14
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,Hobby Nailing,Inflation,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Battery Amp Hours
No Battery
Charger Included
Charger Not Included
Compressor Tank Capacity (Gallons)
10
Compressor Type
Garage & Industrial
Compressor/Air Tool Features
Automatic Start/Stop,Dual Control,Handle,Oil Free Compressor,Tank Pressure Gauge,Universal Quick Connectors,Wheels
Condition
New
Decibel Rating (Outdoor)
70 dBA
Horsepower (hp)
2
Included
No additional components or accessories are included
Lubrication Type
Oil Free
Maximum Pressure (psi)
125
Number of Batteries Included
0
Portable
Yes
Power Source
Electric
Product Weight (lb.)
82.5lb
Reconditioned
No
Returnable
30-Day
Stage Count
Single Stage
Tank Material
Steel
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (v)
110v
Voltage (volts)
110

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 Year Limited Warranty

Specifications

Dimensions

Product Depth (in.)
15.1
Product Height (in.)
35.9
Product Width (in.)
16

Details

Air Delivery SCFM @ 40PSI
6.4
Air Delivery SCFM @ 90PSI
5.3
Amperage (amps)
14
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,Hobby Nailing,Inflation,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Battery Amp Hours
No Battery
Charger Included
Charger Not Included
Compressor Tank Capacity (Gallons)
10
Compressor Type
Garage & Industrial
Compressor/Air Tool Features
Automatic Start/Stop,Dual Control,Handle,Oil Free Compressor,Tank Pressure Gauge,Universal Quick Connectors,Wheels
Condition
New
Decibel Rating (Outdoor)
70 dBA
Horsepower (hp)
2
Included
No additional components or accessories are included
Lubrication Type
Oil Free
Maximum Pressure (psi)
125
Number of Batteries Included
0
Portable
Yes
Power Source
Electric
Product Weight (lb.)
82.5lb
Reconditioned
No
Returnable
30-Day
Stage Count
Single Stage
Tank Material
Steel
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (v)
110v
Voltage (volts)
110

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 Year Limited Warranty

Questions & Answers

is the compressor 240v?

is the compressor 240v?
Asked by: bobdove
110v , very low noise, easy to use
Answered by: Brian
Date published: 2018-01-14

Can you use this compressor to fill a 20 gallon storage tank to help with capacity

Can you use this compressor to fill a 20 gallon storage tank to help with capacity
Asked by: Chief
usually the pump is the limiting factor. this puts out 5.3 cfm at 90psi and has a maximum pressure of 125psi. You can do the math on that. with that said, you are also limited by the duty cycle ( which is likely 50% ) on this unit. So again you can do the math on that. then finally, the performance is limited by the settings on the pressure switch - as to what pressure it will cycle on and off trying to keep up with demand and pressure reserve in the tank. This all formulates in to a equation. I am not wanting to go through the math exercise on this. However, Just by the numbers, I think the unit is capable of handling something closer to a 20gal tank. 30 may decrease cycling on it.. but also double or triple recovery time. but may depend on your use whether this is acceptable.
Answered by: konagear
Date published: 2019-04-25

Can I run Shop tools with this compressor? Pneumatic tools, like inpact wrenches or air ratchets ...

Can I run Shop tools with this compressor? Pneumatic tools, like inpact wrenches or air ratchets or air drills?
Asked by: jim
the compressor will not run for any extended period of time. I was very disappointed with it. It seems like it builds up head pressure and shuts off and will not start up again unless you unplug it, bleed off all the air and start over.
Answered by: cbo
Date published: 2019-03-29

can i run a vacuum system rated at 1.55 cfm @73psi continuously?

can i run a vacuum system rated at 1.55 cfm @73psi continuously?
Asked by: vidal
Yes, this air compressor can run a vacuum system rated at 1.55 cfm @ 73 PSI.
Answered by: CommunityAnswer
Date published: 2019-02-11
