Model # CAT-5020W

Store SKU # 1011961841

5020W 5-Gal. 2 Horsepower, Ultra-Quiet and Oil-Free Rugged Electric Air Compressor 110-Volt

$398.00
Apply Now
Pay $348.00 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

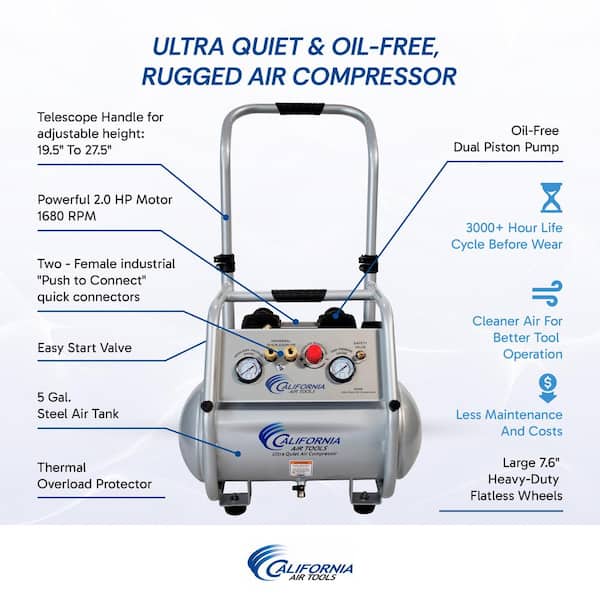

The CALIFORNIA AIR TOOLS 5020W Ultra Quiet & Oil-Free Rugged Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound and features extra large 7.6 in. wheels, the Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. Motor has been designed to increase duty cycle and allow for longer continuous run times, the Oil-Free Dual Piston Pump System is engineered for high performance, durability and provides up to 135 psi, the CAT-5020-Watt Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500-hours or less, the Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump), the Easy Start Valve feature allows for a easier start up using less starting amps, the Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the SP-9421 motor to spin freely, this no-load start up requires less amps for a easier start up in cold temperatures, the large 5.0-Gallon Steel Air Compressor is only 82 lbs. making it very easy to move around the jobsite and is lighter and quieter than all competitive models in the same class. Designed for the person looking for Rugged Durability, Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

Highlights

  • Ultra quiet - Only 70 decibels
  • Oil-free pump - cleaner air for better tool operation less maintenance and costs
  • Protective roll cage
  • Telescope handle for adjustable height: 195 in. to 275 in.
  • Easy to lift and easy to move around on job sites
  • Large rugged flatless wheels (7.6 in. )
  • 2 pressure control gauges
  • 2 - female industrial "Push to Connect" quick connectors
  • Easy start valve - for less starting amperage
  • Thermal overload protector
  • 19.0 in. L x W/D (21 in.) x H (19.5 in. to 27.5 in.)
  • 110-Volt/60 hz
  • Low Amp draw - 14 Amps
  • Dedicated 15 Amp outlet -14-Gauge 25 ft. cord - Min 5500-Watt generator
  • Time to fill tank from empty to full - 60-seconds
  • Recovery time from 95 psi to 125 psi - 20-seconds
  • SP-9421 2 Hp motor-pump (110-Volt 60 hz)
  • Limited warranty 1-year
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 330992404

Model # CAT-5020W

Store SKU # 1011961841

Specifications

Dimensions: H 19.5 in, W 19 in, D 21 in

Dimensions

Product Depth (in.)

21 in

Product Height (in.)

19.5 in

Product Width (in.)

19 in

Details

Air Delivery SCFM @ 40PSI

6.40

Air Delivery SCFM @ 90PSI

5.30

Amperage (A)

14 A

Application Use

Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, Hobby Nailing, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Trim, Wrenching

Compressor Tank Capacity (gal.)

5 gal

Compressor Type

Industrial

Compressor Volume Rating

Quiet

Compressor/Air Tool Features

Wheels

Decibel Rating (Outdoor)

70 dBA

Horsepower (hp)

2.0 hp

Included

Wheels

Lubrication Type

Oil less

Maximum Pressure (PSI)

135 PSI

Portable

Yes

Power Source

Electric

Power Type

Corded Electric

Product Weight (lb.)

82 lb

Returnable

90-Day

Stage Count

Single Stage

Tank Material

Steel

Tank Style

Wheelbarrow

Tools Product Type

Air Compressor

Voltage (V)

110 V

Voltage (v)

110v

Warranty / Certifications

Certifications and Listings

No Certifications or Listings

Manufacturer Warranty

1 Year Limited Warranty
