Internet #203564997

Model # D1036

0786674017833

Century Discontinued

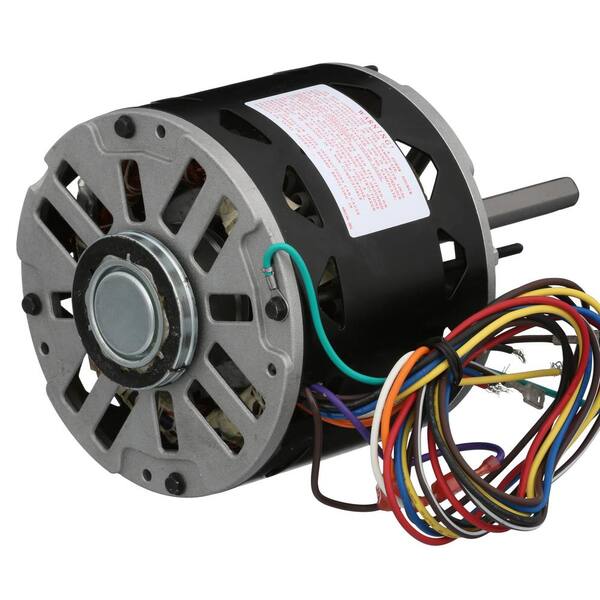

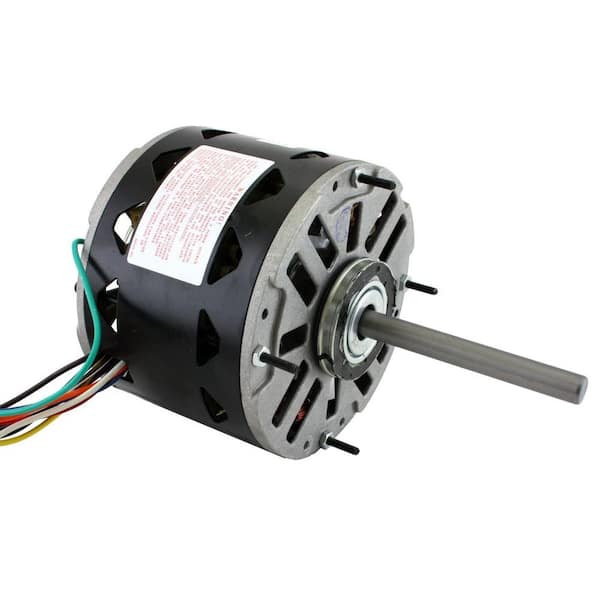

1/3 HP Blower Motor

  • 1075 RPM allows more air discharge than its contemporaries
  • Three-speed engine is a better substitute for a fan, furnace coil
  • Sleeve-bearing design efficiently dampens the noise of the motor
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • 1075 RPM allows more air discharge than its contemporaries
  • Three-speed engine is a better substitute for a fan, furnace coil
  • Sleeve-bearing design efficiently dampens the noise of the motor
AO Smith 1/3 HP 208-230 Volt 1PH direct drive three speed Indoor blower motor replaces many furnace and fan coil motors. This blower motor has versatile mounting for direct drive applications and has reversible rotation. Requires a 5MFD 370 Volt Capacitor (not included).
  • 1075 RPM
  • Rated 2.6 Amp Max 3.1 Amp
  • Rated 40 C ambient temperature
  • 1/2 X 4.5 in. shaft
  • Uses a 5MFD / 370 Volt capacitor (not included)
  • Sleeve bearing
  • 5-5/8 in. Diameter
  • 48Y Frame
  • Standard efficiency
  • 2-1/4 Rings with 2-1/2 adapters
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • 1075 RPM allows more air discharge than its contemporaries
  • Three-speed engine is a better substitute for a fan, furnace coil
  • Sleeve-bearing design efficiently dampens the noise of the motor
Model #: D1036
Internet #: 203564997

AO Smith 1/3 HP 208-230 Volt 1PH direct drive three speed Indoor blower motor replaces many furnace and fan coil motors. This blower motor has versatile mounting for direct drive applications and has reversible rotation. Requires a 5MFD 370 Volt Capacitor (not included).

  • 1075 RPM
  • Rated 2.6 Amp Max 3.1 Amp
  • Rated 40 C ambient temperature
  • 1/2 X 4.5 in. shaft
  • Uses a 5MFD / 370 Volt capacitor (not included)
  • Sleeve bearing
  • 5-5/8 in. Diameter
  • 48Y Frame
  • Standard efficiency
  • 2-1/4 Rings with 2-1/2 adapters
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • 1075 RPM allows more air discharge than its contemporaries
  • Three-speed engine is a better substitute for a fan, furnace coil
  • Sleeve-bearing design efficiently dampens the noise of the motor
AO Smith 1/3 HP 208-230 Volt 1PH direct drive three speed Indoor blower motor replaces many furnace and fan coil motors. This blower motor has versatile mounting for direct drive applications and has reversible rotation. Requires a 5MFD 370 Volt Capacitor (not included).
  • 1075 RPM
  • Rated 2.6 Amp Max 3.1 Amp
  • Rated 40 C ambient temperature
  • 1/2 X 4.5 in. shaft
  • Uses a 5MFD / 370 Volt capacitor (not included)
  • Sleeve bearing
  • 5-5/8 in. Diameter
  • 48Y Frame
  • Standard efficiency
  • 2-1/4 Rings with 2-1/2 adapters
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • 1075 RPM allows more air discharge than its contemporaries
  • Three-speed engine is a better substitute for a fan, furnace coil
  • Sleeve-bearing design efficiently dampens the noise of the motor
Model #: D1036
Internet #: 203564997

AO Smith 1/3 HP 208-230 Volt 1PH direct drive three speed Indoor blower motor replaces many furnace and fan coil motors. This blower motor has versatile mounting for direct drive applications and has reversible rotation. Requires a 5MFD 370 Volt Capacitor (not included).

  • 1075 RPM
  • Rated 2.6 Amp Max 3.1 Amp
  • Rated 40 C ambient temperature
  • 1/2 X 4.5 in. shaft
  • Uses a 5MFD / 370 Volt capacitor (not included)
  • Sleeve bearing
  • 5-5/8 in. Diameter
  • 48Y Frame
  • Standard efficiency
  • 2-1/4 Rings with 2-1/2 adapters
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
13
Product Height (in.)
6.8
Product Width (in.)
6.8

Details

Amperage (amps)
2.6
Horsepower (hp)
.333 hp
Product Weight (lb.)
12.9lb
Returnable
90-Day
Voltage (volts)
230

Warranty / Certifications

Manufacturer Warranty
1 Year

Specifications

Dimensions

Product Depth (in.)
13
Product Height (in.)
6.8
Product Width (in.)
6.8

Details

Amperage (amps)
2.6
Horsepower (hp)
.333 hp
Product Weight (lb.)
12.9lb
Returnable
90-Day
Voltage (volts)
230

Warranty / Certifications

Manufacturer Warranty
1 Year

Questions & Answers

What is the RPM

What is the RPM
Asked by: LUIS
1050
Answered by: jibber
Date published: 2019-04-16

what causes the A-coil to freeze

what causes the A-coil to freeze
Asked by: jibber
Low refrigerant levels make the coils too cold, and a faulty fan prevents air from moving
Answered by: Communityanswer
Date published: 2019-05-02

What are the 4 metal rings for?

It came with 4 metal ring, I cannot figure out what they are for
Asked by: GB
They are used for ring mount applications - you may not need them. These are universal motors and come with several mounting options.
Answered by: HVAC
Date published: 2018-01-16

Where can I get a manual or install instructions. The link given does not work.

Where can I get a manual or install instructions. The link given does not work.
Asked by: DaLumberjack
Hi DaLumberjack, we would be happy to speak with you directly in regards to your concerns on your Homedepot.com order. Please call us at HomeDepot.com Customer Service 800-430-3376.We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!
Answered by: THDSupport
Date published: 2019-08-26
