Model # CXU13_SW_ARCH4

Coachman Linear Design 16 ft x 7 ft Insulated 18.4 R-Value White Garage Door with Arch Windows

Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now

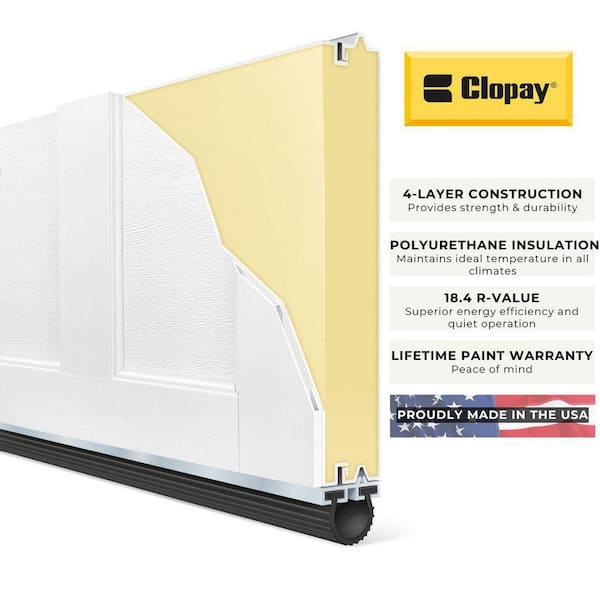

  • 4-layer construction (composite overlay-steel in sulation-steel)
  • Deep panel edging improves appearance close-up and from the curb
  • Timeless carriage house design
  • View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

Design, Visualize, and Order Your Custom Garage Door

About This Product

Clopay Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay Intellicore is proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength and durability. Its dense insulation also produces a quieter door, while its industry leading R-values provide year-round comfort and improved energy efficiency. If you like the high-end look of wood carriage-house style garage doors, but still want the benefits of a durable, low-maintenance, insulated steel garage door, consider the Coachman Collection. The designs vary to complement many architectural styles including craftsman, shaker, traditional, French country, Tudor and Victorian. Accented with decorative black wrought iron hardware, coachman doors have the charming appearance of a swing-out door, but offer the built in. convenience of modern overhead operation. Clopay very best door. The price includes the door and components only. Installation is NOT included.


  • Best construction 3-layer steel construction (Steel-Intellicore insulation-steel)
  • Maximum energy efficiency with 2 in. thick, high R-value polyurethane insulation - R-value 18.4
  • EZ-set torsion springs are included
  • Heavy-duty exterior steel ensures durability and security
  • Garage door comes with windows for added curb appeal and allowing natural light shine through your garage
  • Traditional overhead door is compatible with automatic garage door openers
  • Bottom weather seal in rust-proof retainer helps seal floors and is easily replaced
  • Exterior lock not included, purchase separately with SKU# 985184
  • Rear track hanger kit not included, purchase separately with SKU# 235466
  • Low headroom conversion kit not included, purchase separately with SKU# 773844
  • Additional items may be needed to complete the install, please see installation guide to learn more
  • Our local, expert installation team will make sure your garage door project runs smoothly from start to finish
  • Best Garage Doors For Your Home
  • Click here to design your Custom Clopay Garage Door and schedule an install
  • Return Policy

Product Information

Internet # 204598562

Model # CXU13_SW_ARCH4


Dimensions: H 96 in, W 192 in, D 2 in


Garage Door Size

16 ft x 7 ft

Product Depth (in.)

2 in

Product Height (in.)

96 in

Product Width (in.)

192 in


Color Family


Door Configuration

Double Door


Insulated, Paintable, With Windows

Garage Door Collection


Garage Door Color


Garage Door Style

Carriage House


Hardware, Instructions

Insulation R-Value




Number of Windows


Product Type

With Windows

Product Weight (lb.)

226 lb



WindCode Rating

No WindCode Rating

Window Type

Clear Glass

Warranty / Certifications

Manufacturer Warranty

Paint System - Lifetime, Windows - 10 yrs., Sections/Delamination - 5 yrs., Hardware/Springs -3 yrs.

Questions & Answers

Q:Does this door come paintable
by|Aug 27, 2022
1 Answer
Answer This Question

A:  Hi Ciopsycoachmancollectiong, We do not offer door that are just primed for painting however, any door can be painted by following the painting instructions and using a good quality exterior latex paint. We offer this same door in several color options you can view by visiting www.homedepot.com/garagedoors and designing the door yo like in the color you may find better for your application. Thanks for shopping the Home Depot, the Clopay team

by|Aug 29, 2022
    Q:In that price installation included?
    by|Dec 24, 2021
    1 Answer
    Answer This Question

    A:  Neil, This price is just for the product D.I.Y. To find out installation pricing you can visit www.homedepot.com/garagedoors, enter your zip code, local store location, size, and you will have the option to choose D.I.Y or professional installation. Labor pricing vary by market and your zip code will determine the pricing. Thank you for shopping The Home Depot, The Clopay Team.

    by|Dec 28, 2021
      Q:is this available in 12x10
      by|Dec 18, 2021
      1 Answer
      Answer This Question

      A:  Hi jimb, Yes you can order this door 12'x10'. Please visit www.homedepot.com/garagedoors and enter your zipcode to start. From here when you get to the SIZE tab scroll to the bottom half of the page and enter the size you want (12' x 10'). The choose the Coachman Collection and you can design and order the door you like including professional installation if you choose. Thanks for shopping the Home Depot, the Clopay team

      by|Dec 20, 2021
        Q:will these doors seal up 100% when closed? I would like to install an AC unit in the garage to use it as a shop.
        by|Aug 19, 2020
        1 Answer
        Answer This Question

        A:  Mike, no these doors will not seal up 100%. Due to the door needing to move up and down, there is a gap around the door that is generally covered by the exterior weatherseal which is a separate item from the door. The weather seal creates a barrier that keeps wind and water out but heat and cold could pass through this vinyl seal. Thanks for shopping The Home Depot, The Clopay Team

        by|Aug 20, 2020
