Internet # 300851060

Model # WSB350PG

Store SKU # 707382

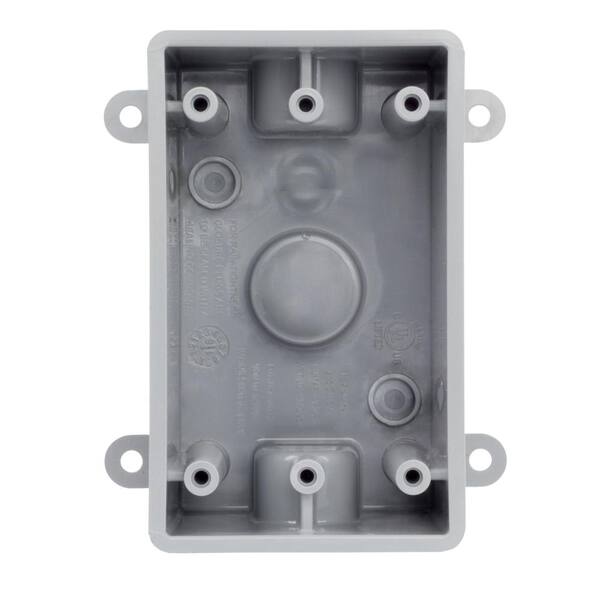

1-Gang Non-Metallic Weatherproof Box with (3) 1/2 in. Holes, Gray

$730
  • Weather resistant
  • Durable high impact PVC construction
  • Installation hardware and instructions included
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

Commercial Electric's non-metallic weatherproof boxes are rated to protect branch circuits in wet, damp, and/or dry locations. Powder coat finish provides maximum weatherability and scratch resistance. Boxes can serve as a junction box or as housing for receptacles, switches, and GFCIs. Hubs accept all threaded fittings and threaded conduit. Available in both gray and white.
  • High-impact PVC construction
  • 16.2 cu. in. capacity
  • Three 1/2 in. holes
  • NEMA 3R compliant
  • Return Policy
  • California residents
caret

Specifications

Dimensions: H 4.6 in, W 3.8 in, D 2.0 in

Dimensions

Product Depth (in.)2.0 inProduct Height (in)4.6
Product Height (in.)4.6 inProduct Width (in.)3.8 in

Details

Box TypeWall boxColor FamilyGray
Compatible Conduit TypePVCCompatible Conduit TypePVC
DurabilityCorrosion Resistant, WeatherproofFeaturesNo Additional Features
Indoor/OutdoorIndoor, OutdoorMaterialPolycarbonate
Metallic/Non-MetallicNon-MetallicNumber of Gangs1
Number of Knockouts/Pryouts3Pack Size1
Package Quantity1Product Weight (lb.)0.374 lb
Returnable90-DayShapeRectangle

Warranty / Certifications

Certifications and ListingscULus ListedManufacturer Warranty1-Year
caret

Questions & Answers

11Questions
caret
Q:Are holes threaded inside
by|Oct 12, 2023
1 Answer
Answer This Question

A:  Hi Troy, yes the holes are threaded.

by|Oct 13, 2023
    caret
    Q:Is the box rated for direct contact with dirt/earth/sediment? Could it be used within a planter box without corroding like a the metallic weatherproof boxes would?
    by|Sep 8, 2023
    1 Answer
    Answer This Question

    A:  Hi dsoutha, the box is rated for outdoor use. There is no rating for dirt and sediment applications.

    by|Sep 9, 2023
      caret
      Q:What is the rated volume of this box?
      by|Aug 17, 2023
      1 Answer
      Answer This Question

      A:  Hi Hyamn, 16.5 CU.IN

      by|Aug 17, 2023
        caret
        Q:Is water supposed to collect in the unused hole on top?
        by|Aug 17, 2023
        1 Answer
        Answer This Question

        A:  Hi Hyman, the hole is manufactured sealed so it has no effect inside the box.

        by|Oct 14, 2023
          2 found this answer helpful
          Showing 1-4 of 11
          caret

          Customer Reviews

          4.8 out of 5
          (229)
          • 4.8
            out of 229 reviews
          • 88% recommend this product
          Filter by:
          Showing 1-10 of 229 reviews
          Backyard shoot light for grilling
          Worked great, wired it to my existing patio and string lights with separate switch
          by
          • Verified Purchase
          • Recommended
          I got this electrical box because I have an older metal box outside of my house that has rusted t...
          I got this electrical box because I have an older metal box outside of my house that has rusted through. I haven’t put this on yet because I’m waiting for an electrician but this is an excellent quality box I can tell by looking at it. It has three knockouts, One on each end and one on the back under the label. The holes are threaded and there are six total possible holes you can use to connect plates to the box. It’s very heavy duty and solid and has four mounting ears on the back which are going to make it very secure. It’s a one gang box with plenty of room on the inside for my ground fault breaker. Quality stuff I would definitely recommend buying this brand.
          by
          • Recommended
          To the point, these boxes are great. For all of my outside electrical box needs, I use these pvc ...
          To the point, these boxes are great. For all of my outside electrical box needs, I use these pvc boxes. They are very easy to install to many different surfaces. This single gang box has the option for three different locations for conduit to be attached to the box, making it easy to get wire to where you need it. They are deep enough that you do not have to worry about working with extremely short wire leads that require 5 inch fingers to make your connections. In these pictures I am installing a switch for an added light to our back porch. I will be adding an outdoor rated switch plate cover so I do not have to worry about any weather affecting the electrical circuit. If you need a good choice for a junction box these are an easy go to.
          by
          • Recommended
          The Commercial electric 1/2 inch single gang non metallic three hole work box appears to be a du...
          The Commercial electric 1/2 inch single gang non metallic three hole work box appears to be a durable work box for outdoor installations. You do have to knock out the plug in the hole or holes you will be using which is easily done. This is a nice feature since you dont have to install a plug in the holes you are not using. I had no issues threading the connector in to the box. There are four tabs to attach the box to the surface you are installing it on. I have to say it is a good product for a reasonable price.
          by
          • Recommended
          This 1 gang outdoor rated box arrived quickly and well packaged. It is well built and very versat...
          This 1 gang outdoor rated box arrived quickly and well packaged. It is well built and very versatile. There are 3 threaded holes that have knockouts built in to them. There are 4 external mounting tabs and 2 Pre marked spots to mount the screws internally if desired. The box has 6 mounting holes to allow for traditional two screw receptacle mounting or 4 screw receptacle mounting.
          by
          • Recommended
          Heavy duty grade single gang exterior box. Has 4 exterior mounting tabs for easy installations to...
          Heavy duty grade single gang exterior box. Has 4 exterior mounting tabs for easy installations to most any flat surface, as well as 2 diagonally placed pre-starts for interior mounting. Interior is of average size/depth for single gang box, sufficient for most outlet or other installs. Has multiple configurations for various cover plates. Also has punchouts on both "short" sides as well the back to facilitate most any install situation. Overall a high quality box.
          by
          • Recommended
          I have used this type of box before on a pair of sockets on my deck, and it is perfect for the jo...
          I have used this type of box before on a pair of sockets on my deck, and it is perfect for the job. It is built really sturdily and is easy to install. You can attach threaded conduit to the top and bottom of the box, although I have drilled a hole through the back of the box to feed cable in on my installation. It accepts a weatherproof cover to complete an exposed socket, although I have also used it for a light installation on my garage.
          by
          • Recommended
          I really like this Weather proof box. It is thick, heavy duty, and well made. This will stand up ...
          I really like this Weather proof box. It is thick, heavy duty, and well made. This will stand up to any Weather thrown at it for a long time. With the proper Weather resistant cord grips, and the matching cover, this will be a Weather proof J-Box. This box is a Three gang box, meaning, it has Three accessible holes, one on each end, and one on the back. All three holes are sealed until you decide which, or all holes are needed. The Box is threaded for 1/2” cord grips, you simply knock out the plug at the end of the holes that are needed, install sealant, or sealant tape on your grip and insert. You then run your cable through the grip and secure. You then install the cover and you are weather proof This box has four mounting holes at each corner that are sturdy and will securely mount this box to any surface. You will be satisfied with the quality of this J-Box.
          by
          • Recommended
          The Commercial Electric 1/2-inch gray 1-gang 3-holes non-metallic weatherproof box give you the o...
          The Commercial Electric 1/2-inch gray 1-gang 3-holes non-metallic weatherproof box give you the option of using the tabs on the outside or 2 places for screws on the inside of the box to mount. I used the inside option. I drilled the holes through the back of the box and used 2 screws to attach the box. The box has 3 threaded holes for the use of 1/2 inch plastic conduit and threaded fittings, one in the back and one on each end. The holes are sealed so you have to knock out the plastic in the one you want to use. I used the one in the back. It is a nice sturdy box, made for wet locations. I put threaded plugs in the 2 holes I did not use just for a cleaner look.
          by
          • Recommended
          Single gang outdoor electrical 3-hole box is a PVC electrical box with a total of 3 1/2” KO’s. The KO’s come sealed and need to be pushed out (with a simple screwdriver) before entering conduits or connectors. The box is a single gang box that is a stand alone box. The mounting tabs (4 of them) are on the outside of the box which is a great feature to keep the box fully watertight. The standard PVC color is gray as this box is. There are a total of six plate/device mounting holes for whatever your final finish is. The box finish is clean and smooth with no rough edges. This is an outdoor box for outdoor or wet locations. The PVC materials will not rust or corrode for a long lasting installation. Simple product that is well made with nice features.
