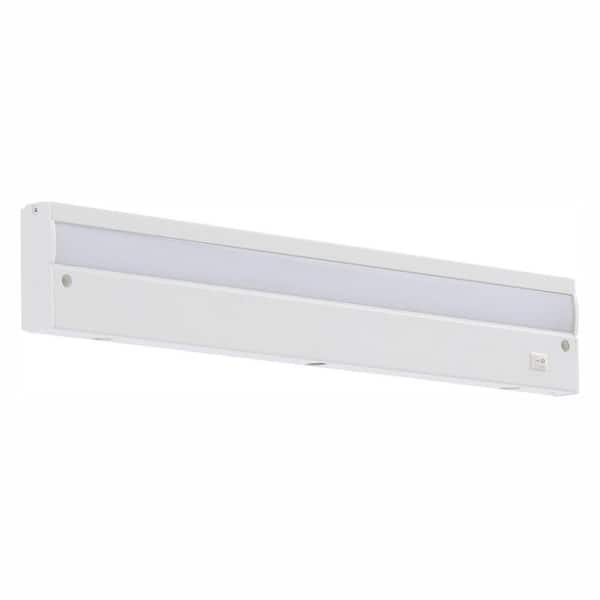

18 in. LED Direct Wire Under Cabinet Light

  • Ideal for under-cabinets in kitchens, offices and more
  • Installation is designed to be customer and contractor friendly
  • Dimmable
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

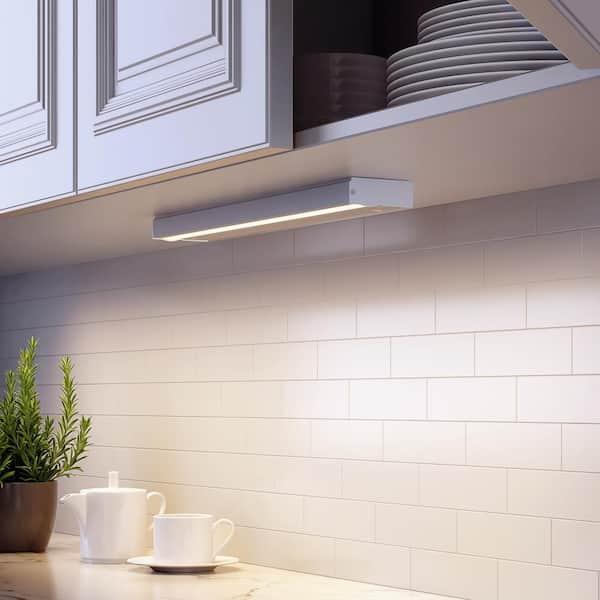

Add light where you need it most with the Commercial Electric LED Direct Wire Dimmable Under Cabinet Light. Designed for 120-Volt direct wire under-cabinet installation, it also provides brilliant white light for kitchen countertops and other household work areas. The 3000K LED color temperature lasts for 50,000 hours of continuous use, with no bulb to change. Maintenance-free and energy-saving, this fixture is available in 5 different sizes.
  • White painted finish
  • 120-Volt direct wire
  • 50,000 hours of operating life
  • Slim 1 in. low profile
  • Energy Star rated for minimal electricity consumption
  • Meets ETL listing safety standards
  • Dimmable, compatible with these dimmers sold at The Home Depot (marked with product model# and SKU#): Lutron brand: DVWCL-153PH-WH/530826; CTCL-153PDH-WH/267858; TGCL-153PH-WH/527401; S-600PR-WH/396682; TG-600PR-WH/400017; Leviton brand: R62-06683-0IW/534006; R12-06672-1LW/1000024040
  • Equipped with on/off rocker switch for easy operation
  • Equipped with high-quality aluminum housing for durability and longevity
  • 15-Watt, 750 Lumens output, 50 lm/Watt efficacy, 80 CRI, 3000K color temperature
  • Includes captive mounting screws for quick and easy installation
  • 28-piece LED array on a PCB board
  • Backed by a 5-year limited manufacturer warranty
  • Click here to learn more about Eco Options and Energy Efficiency
  • View The Home Depot's under-cabinet lighting installation guide
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
2.95
Product Height (in.)
1.06
Product Width (in.)
18

Details

Actual Color Temperature (K)
3000
Bulb Color
White
Color Rendering Index (CRI)
80
Color Temperature
Soft White
Color/Finish Family
White
Commercial/Residential
Residential
Compatible Bulb Type
LED
Connection Type
Hardwired
Damp/Wet Rating
Dry Rated
Features
Dimmable
Fixture Color/Finish
White
Fixture Color/Finish Family
White
Fixture Material
Aluminum
Hardware Included
Yes
Linkable
No
Lumens
750
Mounting Method
Screws
Product Weight (lb.)
0.968
Replaceable LED Module
No
Returnable
90-Day
Slim line
Yes
Style
Classic
Voltage (v)
120v

Warranty / Certifications

Manufacturer Warranty
5 year

Questions & Answers

102Questions19Answers

Are there any Alexa-enabled WiFi dimmer's that are compatible with this unit? I have tried both a...

Asked by MKEpeep February 21, 2021
1
Answer

I have not tried these on a dimmer but note that not all dimmers work with dimmable LED lights so make sure your dimmer states it will support LEDs. Believe it or not some also require a certain minimum wattage load for the dimmer to function correctly. I believe these fixtures use 17W each, so make sure to check your dimmer to see if it needs the load to be higher to function properly (ie without flickering). In general I have not had much luck dimming LED bulbs lower than say 30% brightness - they always seem to flicker to some extent.

What size are the bulbs?

Asked by Jim November 25, 2020
3
Answers

LED no bulb

What kind of led bulbs are required? How do I remove cover to change bulbs

Asked by JB November 17, 2020
2
Answers

It comes complete with the light and yes the cover is removable for installation.

Is the lens glass or plastic?

Asked by steve November 12, 2020
3
Answers

White plastic.

The house I bought have these as under cabinet lights. One has already died, only 3 years old. An...

Asked by question September 30, 2020
3
Answers

Yes the whole thing will need replaced. Depends how familiar you are with electrical work. It’s a pretty easy job if you’ve ever wired in an outlet. To replace just one would probably take around 10-15 minutes and require wire cutters/strippers, a screw driver, and electrical tape.

Electrician Installed 24” over sink but light would sometimes flicker for about 5 seconds. Thought it was defective so

Asked by Teacher36 September 4, 2020
2
Answers

Possibly the power and common could be wired backwards. Make sure black is power white is common.e

Can these lights be linked?

Asked by EC August 20, 2020
2
Answers

Yes, I have them under the counter at my place of business, 3 of them linked together.

is this product being discontinued? there is limited availability with no option to ship.

Asked by Cameron August 20, 2020
1
Answer

Yes, the product is being discontinued. You can maybe check with your local stores customer service with the model and sku they might be able to obtain one.

Can I buy the mounting clips separately. I need just one. Lost it somewhere during renovation

Asked by John July 26, 2020
1
Answer

Yes, please contact the e-mail of "customerservice@buckingham.com,tw".

Where can I find more fittings for the tiny knockouts? I have three of these I'd like to wire on...

Asked by JoeB July 20, 2020
1
Answer

Please call 1-800-527-0313 or email customerservice@buckingham.com.tw for more information concerning the wire fittings/diecast wire connectors.

18 in. LED Direct Wire Under Cabinet Light - page 2

Customer Reviews

  • 4.2
    out of 568 reviews
  • 79% recommend this product
Filter by:
Showing 1-10 of 568 reviews
Nice light, pain to install
Decent light for the money, however installation is a pain, and I was just replacing a light fixture on the wall in my basement stairwell. I haven’t tried to dim so I cannot comment on that. For the install you have to pull the wires through like most fixtures, but instead of installing the back plate to the wall then wiring it up and attaching the actual light fixture to the front of it you have to pull the wires through, wire it up and put the front on and screw it together from the backside. If you have some decent slack on you wire you’ll be fine. It’s a rear backwards way to do it. Scratch my wall all up in the process of it.
by Chef
5 people found this helpful
Good lights for under cabinets. They are bright, I like...
Good lights for under cabinets. They are bright, I like the 2700k color, not too yellow, but not harsh bluish either. Just right. I replaced 5 thin florescent fixtures of various lengths that were getting too needy. As others say, the wires inside really need to be longer. I ended up using wire from the old fixtures in several of the new lights. There are from 1 - 3 knockouts on back dependant on length. But it was tight using existing wires from wall in every case. Otherwise, it went well, lights look good.
by VICKIE
4 people found this helpful
Works very well as an under-cabinet light over the kitchen sink.
Works very well as an under-cabinet light over the kitchen sink.
by Larry
2 people found this helpful
Great light. We installed the 12” light in our kitchen...
Great light. We installed the 12” light in our kitchen pantry that didn’t have a light before. It was straightforward installation, including a clamp to secure the house wiring to the light fixture before connecting the wires. I wired it to an existing switch but the fixture itself also has a small switch.
by Freqrider
I purchased various lengths of this LED to replace existing under cabinet lighting. I agree with ...
I purchased various lengths of this LED to replace existing under cabinet lighting. I agree with other reviews that there is not much room in these lights for the wiring, but I was patient and was able to get them installed. When it came to the switches to control these lights, I wanted to use a switch similar to the one I had used on the old lights. A type like that was not listed in the Seven (7) switches that are recommended (which is listed in the documentation with the lights). I found one that works great. It is Lutron MACL-153M-IV (IV stands for Ivory Color), This is the "Master". I also used Lutron MA-R-IV, which is the Remote companion Dimmer to the Master switch. The lights do not flicker, no problem with dimming at any level. This combination of lights and switches are a good match.
by Ohiocrew
4 people found this helpful
I love the sleek look and the light it provides under cabinets that are over my cooktop. However...
I love the sleek look and the light it provides under cabinets that are over my cooktop. However, I had electricians install the light and they were NOT impressed with the ability to hang the light.
by LLM
1 person found this helpful
Easy install and fits nicely under cabinet
Easy install and fits nicely under cabinet
by Moose
I installed the 9, 18, 24 and 36" units of this product for under cab kitchen lighting. The end r...
I installed the 9, 18, 24 and 36" units of this product for under cab kitchen lighting. The end run unit was this 36". This unit would not dim with the rest and buzzed continuously. I took it back thinking it was defective and got another one. It did the same thing. Finally, I replaced it with another 24" unit and everything works fine. The dimmer I'm using is one listed as compatible and my wiring is new and tested. I can't understand why it won't work in my situation. I would prefer to have the 36" light since the end run is under a long span of cabinets. Now I feel like I should have gone with the old-school and much less expensive, I might add, fluorescent lights.
by GS
4 people found this helpful
This light was very easy to install under our kitchen cabinet and puts out great light.
This light was very easy to install under our kitchen cabinet and puts out great light.
by CB
1 person found this helpful
I bought five of these LED under cabinet lights of varying lengths to replace the existing fluore...
I bought five of these LED under cabinet lights of varying lengths to replace the existing fluorescent undercabinet lights. The quality of the fixture is good and the light output is great. A vast improvement over the fluorescent lights I removed. All that being said, trying to connect these to the existing romex and then mounting them was difficult. The fixture is not constructed with a mounting configuration to install and wire the LED driver and light fixture frame separately from the LED lamp assembly, so you have to find a way of temporarily supporting the fixture while you wire it and use the temporary support to hold it against the bottom of the cabinet while you attempt to install a screw through a small hole on each end of the fixture (see photo). I ended up using double sided tape to hold the fixture to the bottom of the cabinet and then installing the screws. Even though installation was a pain, I am pleased with the end result, but I can’t give this product five stars because of the difficulty mounting the fixture.
by rmb3005
13 people found this helpful
