Model # DL-N28A11FR1-27

Internet #301176546

Store SKU #1001749797

0693690560604

Commercial Electric

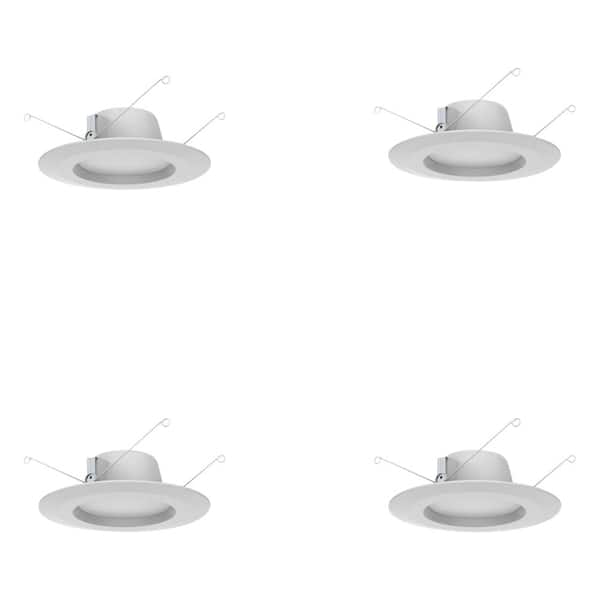

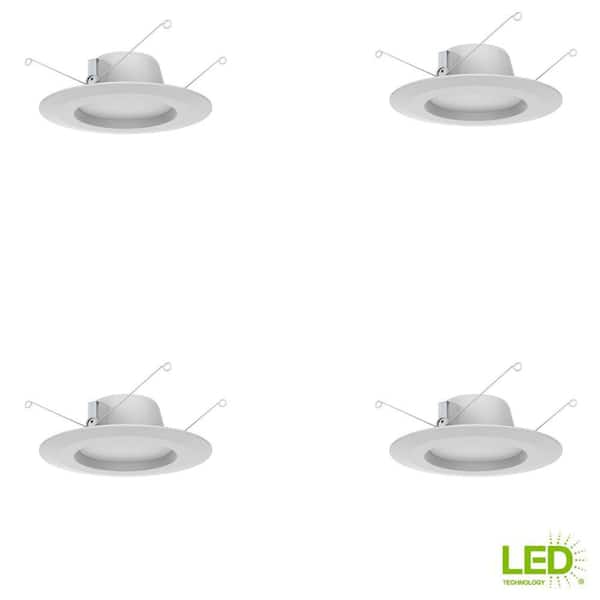

5 in. and 6 in. White Integrated LED Recessed Trim, 2700K Soft White (4-Pack)

  • Designed to retrofit 5 in. and 6 in. incandescent housings
  • Safety listed for use in wet locations, UL-classified
  • IC rated for direct contact with insulation
Includes 4 fixtures  ($8.74  /fixture)
$34.97
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

Commercial Electric recessed lighting
Product Trim Width
Product Compatible Housing Size
Integrated LED Light Source
Color Temperature of Light
Watt equivalence and Lumen brightness
Color Accuracy CRI Rating
Damp/Wet Rating
Product feature, Dimmable
Package Quantity
  • Designed to retrofit 5 in. and 6 in. incandescent housings
  • Safety listed for use in wet locations, UL-classified
  • IC rated for direct contact with insulation
The Commercial Electric 5 in. and 6 in. Recessed LED Trim is ideal for glare-free lighting in any room. This UL-classified, high efficiency, dimmable trim has Energy Star Certification and offers year-round energy savings. Compatible with specified dimmer switches for adjusting brightness and increasing energy savings. Rated for wet locations. A list of additional compatible housings is listed in the instruction sheet. Retrofit any 5 in. and 6 in. incandescent housing to energy-saving LED lighting and achieve an instant recessed lighting look without the price tag or hassle.
  • 2700K soft white, 650-Lumens, 90 CRI
  • 650-Lumen
  • 90 CRI
  • Medium base socket adapter included
  • Dimming range between 10% to 100% and compatible with most household dimmers
  • Save on bulb replacement up to 35,000 hours lamp life
  • Wet location

Product Overview

  • Designed to retrofit 5 in. and 6 in. incandescent housings
  • Safety listed for use in wet locations, UL-classified
  • IC rated for direct contact with insulation
Model #: DL-N28A11FR1-27
Sku #: 1001749797
Internet #: 301176546

The Commercial Electric 5 in. and 6 in. Recessed LED Trim is ideal for glare-free lighting in any room. This UL-classified, high efficiency, dimmable trim has Energy Star Certification and offers year-round energy savings. Compatible with specified dimmer switches for adjusting brightness and increasing energy savings. Rated for wet locations. A list of additional compatible housings is listed in the instruction sheet. Retrofit any 5 in. and 6 in. incandescent housing to energy-saving LED lighting and achieve an instant recessed lighting look without the price tag or hassle.

  • 2700K soft white, 650-Lumens, 90 CRI
  • 650-Lumen
  • 90 CRI
  • Medium base socket adapter included
  • Dimming range between 10% to 100% and compatible with most household dimmers
  • Save on bulb replacement up to 35,000 hours lamp life
  • Wet location

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual Aperture Width (in.)
3.9
Assembled Depth (in.)
7.48 in
Assembled Height (in.)
2.42 in
Assembled Width (in.)
7.48 in
Housing Height (in.)
7.6
Maximum Cutout Size (in.)
5
Nominal Lens Aperture Size
5 in.,6 in.
Trim Size (Width)
6 in.

Details

Actual Color Temperature (K)
2700
Actual Color Temperature (K) - Color Temperature
2700K - Soft White
Color Family
White
Color Rendering Index (CRI)
90
Color Temperature
Soft White
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Wet Rated
Features
Dimmable,Low Glare,Retrofit
Fixture Color/Finish
White
Fixture Material
Plastic
IC Rating
IC Rated
Included
Light Bulb(s),Low Glare,Mounting Brackets,Wiring Connectors
Indoor/Outdoor
Indoor
Integrated LED Type
Standard
Lumens
650
Maximum Bulb Wattage
10
New Construction or Remodel
New Construction,Remodel
Package Quantity
4
Product Weight (lb.)
0.48 lb
Returnable
90-Day
Trim Type
Baffle
Voltage
Line Voltage
Watt Equivalence
65

Warranty / Certifications

Certifications and Listings
cUL Listed
Manufacturer Warranty
5 years

Specifications

Dimensions

Actual Aperture Width (in.)
3.9
Assembled Depth (in.)
7.48 in
Assembled Height (in.)
2.42 in
Assembled Width (in.)
7.48 in
Housing Height (in.)
7.6
Maximum Cutout Size (in.)
5
Nominal Lens Aperture Size
5 in.,6 in.
Trim Size (Width)
6 in.

Details

Actual Color Temperature (K)
2700
Actual Color Temperature (K) - Color Temperature
2700K - Soft White
Color Family
White
Color Rendering Index (CRI)
90
Color Temperature
Soft White
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Wet Rated
Features
Dimmable,Low Glare,Retrofit
Fixture Color/Finish
White
Fixture Material
Plastic
IC Rating
IC Rated
Included
Light Bulb(s),Low Glare,Mounting Brackets,Wiring Connectors
Indoor/Outdoor
Indoor
Integrated LED Type
Standard
Lumens
650
Maximum Bulb Wattage
10
New Construction or Remodel
New Construction,Remodel
Package Quantity
4
Product Weight (lb.)
0.48 lb
Returnable
90-Day
Trim Type
Baffle
Voltage
Line Voltage
Watt Equivalence
65

Warranty / Certifications

Certifications and Listings
cUL Listed
Manufacturer Warranty
5 years

Questions & Answers

Buzzing

Has anybody else had a problem with these LED's buzzing...particular when used with a dimmer control. I am using the Lutron TGCL-153PH dimmer rated for LED usage.
Asked by: JB02
I purchased a 12 of these lamps about a year ago and one of them started buzzing as you related. It was after the 90 days period and rather than demand a refund or replacement, I simply plugged in a replacement (same type/model). Buzzing stopped.
Answered by: Ken
Date published: 2018-11-30

Can they be used with dimmer switch? Type?

Asked by: Morty
The dimmer switch must be an LED switch. Try Lutron Maestro 150-Watt Single-Pole/3-Way/Multi-Location Digital CFL-LED Dimmer in White. (Model # 203489683)
Answered by: ECOSMART Customer Service
Date published: 2018-09-22

Can these be plugged into electrical outlet? If not, are there ones that can be?

Asked by: Lisalisa
It is made to replace screw type (base E26) light bulbs in an existing can. We do not recommend clipping the base off and replacing with a plug, but it certainly could work. Please make sure to follow all safety precautions before attempting electrical work.
Answered by: ECOSMART Customer Service
Date published: 2018-05-03

What dimmers can I use with this light

Asked by: Bob
Under "Product Overview" section of this webpage, there is a section for called "Info & Guides." Click on the "Compatibility Chart" for a list of compatible dimmers.
Answered by: ECOSMART Customer Service
Date published: 2019-01-20
  • y_2019, m_5, d_20, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_79
  • loc_, sid_301176546, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 30ms
  • QUESTIONS, PRODUCT

Customer Reviews

5 in. and 6 in. White Integrated LED Recessed Trim, 2700K Soft White (4-Pack) is rated 4.5 out of 5 by 401.
Rated 5 out of 5 by from Excellent upgrade for existing recessed cans. I installed four of these in existing 6" recessed c... Excellent upgrade for existing recessed cans. I installed four of these in existing 6" recessed ceiling cans, they fit perfectly, installed easily and give a nice tungsten-like light quality at LED efficiencies. Will install more of these, for sure. Note: These LED fixtures won't work with EVERY brand of recessed ceiling fixture. Check the way trim rings are attached to your existing fixture and compare that mounting method with the way these fixtures mount, it'll probably be pretty obvious whether these will work with your existing lights. Add'l Note: These fixtures are dimmable (not true of all LEDs) -- but require a dimmer specifically designed for LEDs. I used Lutron Model # TGCL-153PH-WH (also available at Home Depot: http://www.homedepot.com/p/Lutron-Toggler-150-Watt-Single-Pole-3-Way-CFL-LED-Dimmer-White-TGCL-153PH-WH/202746671). Dimmer works perfectly with these LEDs. Be sure to follow instructions for the final adjustment that ensures you get maximum dimming range without flickering.
Date published: 2017-05-30
Rated 5 out of 5 by from These replacement lights were exactly what we needed and they were reasonably priced as well. Sa... These replacement lights were exactly what we needed and they were reasonably priced as well. Same manufacturer and model number as our old burned out light(s).
Date published: 2019-03-05
Rated 5 out of 5 by from Perfect replacement for LED light that went out. Easy to install and now have excellent lighting ... Perfect replacement for LED light that went out. Easy to install and now have excellent lighting in my home office
Date published: 2019-02-21
Rated 4 out of 5 by from Easy to install and right amount of light for our... Easy to install and right amount of light for our needs.
Date published: 2019-04-09
Rated 5 out of 5 by from I have these throughout my home and they are fabulous.... I have these throughout my home and they are fabulous.
Date published: 2019-04-02
Rated 5 out of 5 by from Just what we needed, ease of installation a plus. Just what we needed, ease of installation a plus.
Date published: 2019-02-26
Rated 5 out of 5 by from Replacement of the LED light was very easy. ... Replacement of the LED light was very easy.
Date published: 2019-03-27
Rated 5 out of 5 by from Really easy installation and great lights... Really easy installation and great lights
Date published: 2019-03-26
