1/2 in. PVC x 0.700 Compression Coupling

$ 1 12

Overview

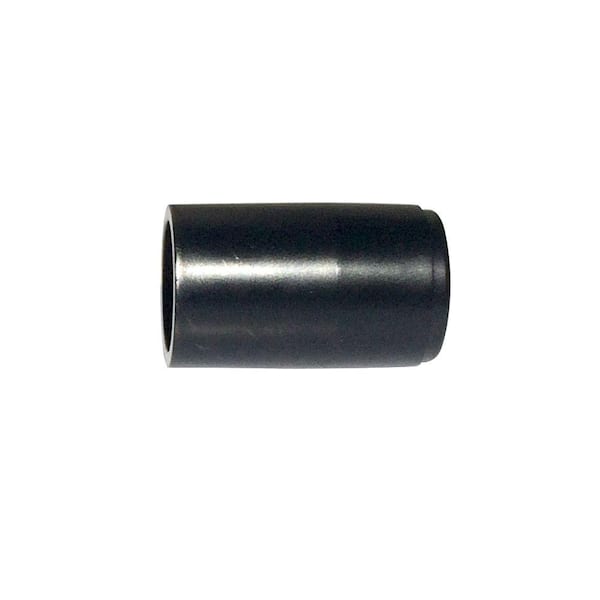

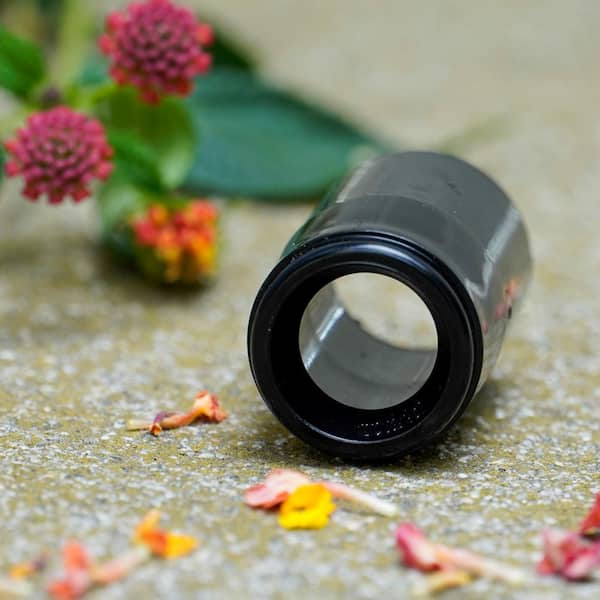

DIG's PVC coupling is used to connect 1/2 in. (.700 O.D.) poly tubing to 1/2 in. PVC pipe. The slip side the coupling is glued onto the end of 1/2 in. PVC pipe with PVC glue. Then the poly tubing is connected to the compression side of the coupling by holding the PVC coupling in one hand and the drip tubing in the other, and forcing the drip tubing into the fitting compression side for about 1/2 to 3/4 in. by walking or wiggling the drip tubing back and forth into the fitting. This adapter is primarily used to connect 1/2 in. poly tubing to existing or new PVC sprinkler pipe.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

DIG's PVC coupling is used to connect 1/2 in. (.700 O.D.) poly tubing to 1/2 in. PVC pipe. The slip side the coupling is glued onto the end of 1/2 in. PVC pipe with PVC glue. Then the poly tubing is connected to the compression side of the coupling by holding the PVC coupling in one hand and the drip tubing in the other, and forcing the drip tubing into the fitting compression side for about 1/2 to 3/4 in. by walking or wiggling the drip tubing back and forth into the fitting. This adapter is primarily used to connect 1/2 in. poly tubing to existing or new PVC sprinkler pipe.
  • Connects 1/2 in. PVC pipe to 1/2 in. 0.700 O.D. poly tubing
  • Made of high-quality material for long life in the landscape
  • Glues onto 1/2 in. PVC
  • Non-threaded, PVC slip connection
  • All DIG compression fittings with black insert fit polyethylene drip tubing with .690 O.D., .700 O.D., .704 O.D. and brown PC drip line

Product Overview

Model #: D48
Sku #: 790028
Internet #: 100182495

DIG's PVC coupling is used to connect 1/2 in. (.700 O.D.) poly tubing to 1/2 in. PVC pipe. The slip side the coupling is glued onto the end of 1/2 in. PVC pipe with PVC glue. Then the poly tubing is connected to the compression side of the coupling by holding the PVC coupling in one hand and the drip tubing in the other, and forcing the drip tubing into the fitting compression side for about 1/2 to 3/4 in. by walking or wiggling the drip tubing back and forth into the fitting. This adapter is primarily used to connect 1/2 in. poly tubing to existing or new PVC sprinkler pipe.

  • Connects 1/2 in. PVC pipe to 1/2 in. 0.700 O.D. poly tubing
  • Made of high-quality material for long life in the landscape
  • Glues onto 1/2 in. PVC
  • Non-threaded, PVC slip connection
  • All DIG compression fittings with black insert fit polyethylene drip tubing with .690 O.D., .700 O.D., .704 O.D. and brown PC drip line

Compare Similar

Compare Similar Products
Brand DIG DIG DIG DIG
Name 1/2 in. 0.710 OD Compression Coupling 1/2 in. PVC x 0.700 Compression Coupling 1/4 in. Barb Elbows (10-Pack) 1/2 in. PVC Pipe Thread x Hose Thread Conversion Elbow
Price
77¢
$1.12
$1.90
$2.14
Ratings (11) (8) (5) (8)
View Product View Product View Product View Product

Specifications

Dimensions

Inner Diameter (in.)
.50
Outer Diameter (in.)
.50
Product Height (in.)
6
Product Length (in.)
1 in
Product Width (in.)
1 in

Details

Color Family
Blacks
Connection
Comp x Slip-Joint
Drip Irrigation Fitting Type
Coupling
Fitting Type
Compression Fittings
Material
ABS Plastic
Package Quantity
1
Pressure Rating
60
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
3 years

Specifications

Dimensions

Inner Diameter (in.)
.50
Outer Diameter (in.)
.50
Product Height (in.)
6
Product Length (in.)
1 in
Product Width (in.)
1 in

Details

Color Family
Blacks
Connection
Comp x Slip-Joint
Drip Irrigation Fitting Type
Coupling
Fitting Type
Compression Fittings
Material
ABS Plastic
Package Quantity
1
Pressure Rating
60
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
3 years

Questions & Answers

What is compression coupling?

What is compression coupling?
Asked by: Caroline
The compression fittings including the coupling, tees, elbow and swivel adapters are type of fittings used for drip tubing connections. They hold the drip tubing by grabbing into the outside diameter and holding it using a sharp edge. It is important to know the size of the drip tubing you have to be used with the correct size compression fittings. To connect, use a simple wrist action with pressure; the polyethylene drip tubing is "walked" into the fittings for a very tight fit with no tools, glues or clamps required. Compression fittings and drip tubing sizes: .630 OD drip tubing use with compression fittings with green inserts .700 OD drip tubing use with compression fittings with black inserts .710 OD drip tubing use with compression fittings with blue inserts. David
Answered by: dl
Date published: 2019-02-17
  • y_2019, m_7, d_19, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_100182495, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 100ms
  • QUESTIONS, PRODUCT

Customer Reviews

1/2 in. PVC x 0.700 Compression Coupling is rated 4.4 out of 5 by 8.
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-05-23
Rated 5 out of 5 by from Use it only with the.700 drip tubing, in smaller size drip tubing, like the one with the .630 OD,... Use it only with the.700 drip tubing, in smaller size drip tubing, like the one with the .630 OD, it will 100% leak. It is designed only for the .700 OD drip tubing and it also can be used with .710 OD drip tubing but will be harder to connect. David
Date published: 2019-02-17
Rated 5 out of 5 by from The product performed exactly as advertised. I wanted to replace a section of the plastic irrigat... The product performed exactly as advertised. I wanted to replace a section of the plastic irrigation tubing supplying the sprinkler heads, as it would spring leaks repeatedly along the line, with PVC. I applied a water soluble lube to the PVC, allowing an easier insertion. Once completed, I glued the PVC into the fitting, allowed it to dry. Absolutely no leaks, refilled trench, it's been over three weeks, with no issues. If the occasion were to arise again, I would most definitely repurchase this product. thanks
Date published: 2018-12-27
Rated 5 out of 5 by from Must have connector for irrigation. Home Depot stores do not... Must have connector for irrigation. Home Depot stores do not carry this item any longer??? Amazing....! Thankfully you can purchase this online from them. Bravo!!
Date published: 2017-04-22
Rated 5 out of 5 by from Easy to use... Easy to use
Date published: 2018-01-23
Rated 5 out of 5 by from Great find in irrigation equipment Hard to. Find item but HD has it on line. This adapter allows. Direct connection of PVC pipe to irrigation tubing. Saves using three separate fittings.
Date published: 2015-03-24
Rated 4 out of 5 by from Compression Couplings Although these seem to work fine we prefer the previous design. I guess time will tell if the hold up as well.
Date published: 2017-02-15
Rated 1 out of 5 by from leak all 4 leak at pvc to comp. fitting not where you insert hose but between
