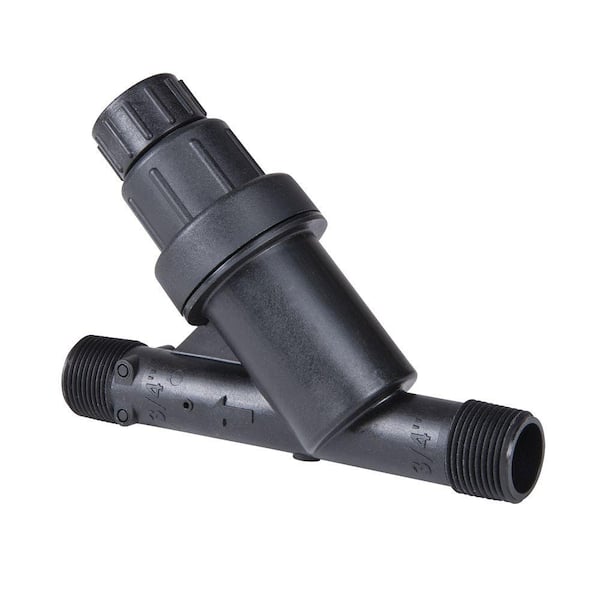

25 psi Filter/Pressure Regulator with 3/4 in. Pipe Thread

$19.97
  • Provides pressure-induced filtration through 155 mesh filter
  • Easy to remove filter ensures hassle-free maintenance
  • Premium quality construction resists UV damage
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The DIG D54 combines a 155 mesh screen filter with a 25 psi preset pressure regulator in one product for the protection of a drip irrigation systems and components. The product simplifies the installation and reduces the overall length of the head assembly which can be useful when connecting to in-line or anti-siphon valves. Fewer parts and fittings reduce the chances of leaks occurring at threaded connections.

Highlights

  • Filter: 155 mesh
  • 25 psi pressure regulator
  • 2 products in one filter and pressure regulator
  • Ideal for use with all 3/4 in. drip irrigation systems
  • UV resistant
  • Professional grade construction
  • Filter screen is easily removed for cleaning and maintenance
  • Operating pressure: up to 120 psi
  • Flow rates: up to 6 GPM
  • Inlet and outlet size: 3/4 in. MNPT
  • Return Policy

Product Information

Internet # 204758564

Model # D54

Store SKU # 1000030314

Store SO SKU #531677

Additional Resources

Shop All DIG
From the Manufacturer

Specifications

Dimensions: H 6.5 in, W 5 in, D 2 in

Dimensions

Inlet Diameter (in.)0.75Outlet Diameter (in.)0.75
Product Depth (in.)2 inProduct Height (in.)6.5 in
Product Width (in.)5 in

Details

Color FamilyBlacksIrrigation System ComponentPressure Regulator
Maximum Inlet Pressure Allowed (psi)120Maximum Regulated Pressure (psi)25
Minimum Regulated Pressure (psi)25Pack Size1
Returnable90-Day

Warranty / Certifications

Manufacturer Warranty3 year warranty

Questions & Answers

21Questions
caret
Q:There seems to be a degradation in pressure. I have cleaned the screen and even run without the screen and there has been no improvement. Is there a process to clean the regulator?
by|Jul 4, 2023
1 Answer
Answer This Question

A:  Uninstalling the D54 filter/pressure regulator, removing the filter, and back flushing it (run water through the D54 backwards) is the only way to properly flush the pressure regulator. If you have any further questions, please feel free to contact our technical service/product support team at 1-800-322-9146 or tech@digcorp.com.

by|Jul 6, 2023
    caret
    Q:Can I use for sprinkler system psi is 120
    by|Jun 26, 2023
    1 Answer
    Answer This Question

    A:  Max operating pressure for our D54 filter/pressure regulator is 120 psi it would be operating at the max pressure it can handle. I would recommend using our heavy-duty pressure regulator HDPR-25 that can handle 150 psi and then connect it to our D55 Y filter to make sure you don’t run into leaking issue. If you have any other questions, please feel free to contact our technical service/product support team at 1-800-322-9146 or tech@digcorp.com.

    by|Jun 27, 2023
      caret
      Q:Am I using this correctly? I used this to add a drip line between my sprinkler line and a sprinkler rotor. I disconnected the rotor from the line, inserted this regulator in-between and then I added a FHT to FNPT coupler to start my drip line
      by|Apr 9, 2023
      2 Answers
      Answer This Question

      A:  My guess: this is not meant to be between a sprinkler line and a rotary sprinkler. The 3/4" MNPTs should be connected to the sprinkler line and to the drip tubing. I therefore inserted a PVC tee and kept my rotary sprinkler on its own line.

      by|Oct 21, 2023

        A:  The D54 filter/pressure regulator will work for use with dripline. If you have any further questions, please feel free to contact our technical service/product support team directly at 1-800-322-9146 or tech@digcorp.com.

        by|Apr 10, 2023
          caret
          Q:This has a range minimum from how many to how many max gallons per minute?
          by|Jul 31, 2022
          2 Answers
          Answer This Question

          A:  The D54 filter/pressure regulator has a maximum flow rate of 6 gallons per minute and a maximum pressure of 120 psi. If you have any further questions, please feel free to contact our technical service/product support team at 1-800-322-9146.

          by|Sep 30, 2022
            1 found this answer helpful

            A:  This is not adjustable. It reduces pressure to 25 psi. If you need more water than this permits, just run the system for a longer period of time.

            by|Aug 1, 2022
              Showing 1-4 of 21

              Customer Reviews

              4.4 out of 5
              • 4.4 out of 29 reviews
              • 70% recommend this product
              Filter by:
              Showing 1-10 of 29 reviews
              Been installing and repairing irrigation systems for over 15 years and combining the filter & pre...
              Been installing and repairing irrigation systems for over 15 years and combining the filter & pressure regulator into a single device is one of the best improvements I have seen for drip systems. It used to be that you had a bulky filter with an o-ring that would ultimately leak plus a bulky pressure regulator attached which would ultimately create a valve system that was too long to fit into an irrigation box and still be serviceable. This combination filter/pressure regulator solves that problem with a much more compact and reliable device.
              by
              • DIY
              • Verified Purchase
              • Recommended
              6 found this review helpful
              by
              • Verified Purchase
              Found everything I needed to complete my work.
              by
              • Verified Purchase
              The regulator works perfectly !
              by
              • Verified Purchase
              Easy to install and seems to work well.
              by
              • Verified Purchase
              Seems to be working fine.
              by
              • Verified Purchase
              I have used this product before. Needed to upgrade an old water line from beginning to the end.
              by
              • Verified Purchase
              I actually didn't need this product.....
              I actually didn't need this product..
              by
              • Verified Purchase
              by
              • Verified Purchase
              Valve was defective and would not allow water flow...I returned...
              Valve was defective and would not allow water flow...I returned it to Home Depot, which has an excellent return policy.
              by
              • Verified Purchase
              Showing 1-10 of 29 reviews
