Model # 8663RP

Internet #100005871

Store SKU #126442

Store SO SKU #1000284684

Decorative White 100 CFM Ceiling Exhaust Fan with Light and Night Light
0784891216152

Decorative White 100 CFM Ceiling Exhaust Fan with Light and Night Light

  • Quickly reduces humidity and prevents foggy mirrors
  • Features durable, galvanized steel construction
  • Ideal for bathrooms up to 95 sq. ft.
$ 98 21 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Quickly reduces humidity and prevents foggy mirrors
  • Features durable, galvanized steel construction
  • Ideal for bathrooms up to 95 sq. ft.
The NuTone Deluxe 100 CFM Bath Fan with Light features a motor that is permanently lubricated, surrounded by steel housing and designed for plug-in use to provide reliable operation. The fan uses one 100-Watt bulb and one 7-Watt bulb for primary and night-time lighting (sold separately). The motor operates at 3-1/2 sones for efficiency.
  • White polymeric grille impervious to bathroom climate
  • Rugged, galvanized steel housing stands up to moisture
  • Uses a centrifugal blower wheel for quiet ventilation
  • May be wired for simultaneous or separate fan light operation
  • Tapered duct adapter with built-in damper for easy installation to 4 in. duct
  • 100 CFM quickly reduces humidity to help eliminate fogged mirrors
  • Thermally protected motor easily plugs in
  • Quietly removes stale, steamy air from bathrooms up to 95 sq. ft.
  • Glass lens brightly diffuses 100-Watt bulb, with 7-Watt energy-saving night light assembly (bulbs sold separately)
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Pick the best air filters for your home. Check out our Buying Guide for helpful tips.
  • Click here for more information on Electronic Recycling Programs

Product Overview

  • Quickly reduces humidity and prevents foggy mirrors
  • Features durable, galvanized steel construction
  • Ideal for bathrooms up to 95 sq. ft.
Model #: 8663RP
Sku #: 126442
Internet #: 100005871

The NuTone Deluxe 100 CFM Bath Fan with Light features a motor that is permanently lubricated, surrounded by steel housing and designed for plug-in use to provide reliable operation. The fan uses one 100-Watt bulb and one 7-Watt bulb for primary and night-time lighting (sold separately). The motor operates at 3-1/2 sones for efficiency.

  • White polymeric grille impervious to bathroom climate
  • Rugged, galvanized steel housing stands up to moisture
  • Uses a centrifugal blower wheel for quiet ventilation
  • May be wired for simultaneous or separate fan light operation
  • Tapered duct adapter with built-in damper for easy installation to 4 in. duct
  • 100 CFM quickly reduces humidity to help eliminate fogged mirrors
  • Thermally protected motor easily plugs in
  • Quietly removes stale, steamy air from bathrooms up to 95 sq. ft.
  • Glass lens brightly diffuses 100-Watt bulb, with 7-Watt energy-saving night light assembly (bulbs sold separately)
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Pick the best air filters for your home. Check out our Buying Guide for helpful tips.
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$98.21 /each
$106.05 /each
$137.07 /each
$139.00 /each
Name Decorative White 100 CFM Ceiling Exhaust Fan with Light and Night Light 100 CFM Ceiling Bathroom Exhaust Fan with Light/Night Light QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR Qualified QTXEN Series Very Quiet 110 CFM Ceiling Humidity Sensing Bathroom Exhaust Fan, ENERGY STAR Qualified
Brand Broan NuTone NuTone
Ratings (128) (15) (38) (20)
View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
9
Housing Width (in.)
9
Maximum Room Size (sq. ft.)
90
Product Height (in.)
7
Product Length (in.)
15
Product Width (in.)
15

Details

Air Volume (CFM)
100
Amperage (amps)
1.7
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
3.5
Features
Light,Nightlight
Grill Shape
Round
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling
Light Bulb Base Code
E26
Light Bulb Type Allowed
Incandescent
Light Bulb Type Included
No Bulbs Included
Maximum Light Bulb Wattage (watts)
100
Mount Type
Recessed
Number of Bulbs Required
2
Product Weight (lb.)
12lb
Returnable
90-Day

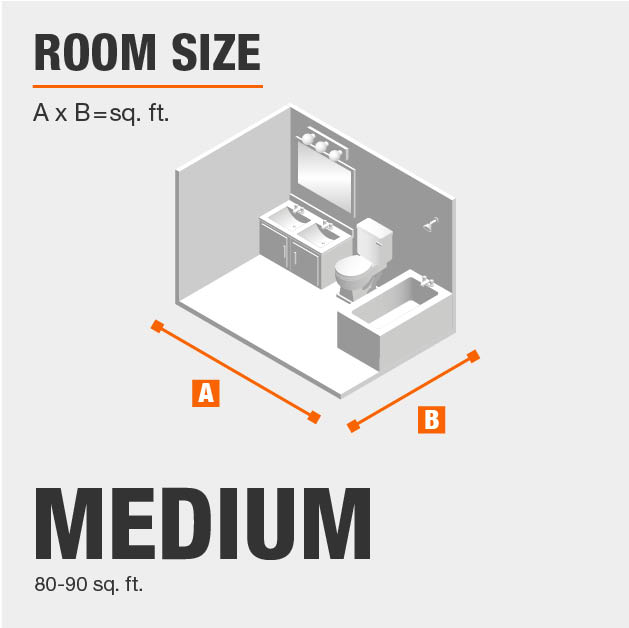

Room Size
Medium Room Fan
Voltage (volts)
120
Wattage (watts)
100

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 1 year

Specifications

Dimensions

Housing Length (in.)
9
Housing Width (in.)
9
Maximum Room Size (sq. ft.)
90
Product Height (in.)
7
Product Length (in.)
15
Product Width (in.)
15

Details

Air Volume (CFM)
100
Amperage (amps)
1.7
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
3.5
Features
Light,Nightlight
Grill Shape
Round
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling
Light Bulb Base Code
E26
Light Bulb Type Allowed
Incandescent
Light Bulb Type Included
No Bulbs Included
Maximum Light Bulb Wattage (watts)
100
Mount Type
Recessed
Number of Bulbs Required
2
Product Weight (lb.)
12lb
Returnable
90-Day
Room Size
Medium Room Fan
Voltage (volts)
120
Wattage (watts)
100

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 1 year

Questions & Answers

Anyone attach this unit to a timer?

I want the fan to automatically turn off after I have left the room.
Asked by: cc
Yes I did and it works great. Timer is electronic and sets to 10, 20, 30, 30, 50, and 60 minutes.
Answered by: Barney
Date published: 2017-02-12

The length of vent is approx. 30 will this fan be able to blow out air without any problem?

Asked by: Ernie
Thank you for your question. You can have 30' of straight duct, but you will loose some performance. This is a 100 CFM unit. Maximum length to keep the highest performance is 16 feet. IF you can increase the duct size to 5" or 6", that would be beneficial. Before you begin this project, contact our Technical Support Department at 888-336-6151 and they will be happy to answer additional questions. Thanks, again.
Answered by: NuToneCustomerSupport
Date published: 2017-02-12

I have a NuTone Ventialtion Fan with Light Model 8664RP. The power blower unit isn't working but light is. I've cleaned it but still not working.

Where can I get a replacement power blower unit and what is the cost? Thanks
Asked by: EOC1
We have found that we are replacing motors every 3 years. We have 5 of these in use. All have same issue.
Answered by: Matt
Date published: 2017-09-19

I need to just replace the lens.

I have an older model, the glass lens fell out and shattered during routine cleaning. I don't need the fan itself. Can I purchase the lens and plastic cover separately? Does this really cost $130? That seems extremely expensive for some glass and plastic.
Asked by: JoelH
Hi, Josh. Give us (Broan-NuTone) a call at 888-336-3948. We do have replacement parts and we may be able to assist you in getting one!. The cost that you see is for the whole exhaust fan, not just the grille/lens cover. Please be sure to have your model number of your exhaust fan. Thank you.
Answered by: NuToneCustomerSupport
Date published: 2017-02-12
  • y_2018, m_9, d_18, h_22CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_28
  • loc_, sid_100005871, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 107ms
  • QUESTIONS, PRODUCT

Customer Reviews

Decorative White 100 CFM Ceiling Exhaust Fan with Light and Night Light is rated 3.3 out of 5 by 128.
Rated 3 out of 5 by from Goofy Grill Install I only selected this fan because the housing was 9" and would fit my old fan's opening. As a single women, I have to tackle home repair from time to time. The install of the housing and motor left no surprises. But the way the grill/light cover goes on is just goofy. I am still not sure I put it in right, the way I did it forced me to install the housing so it protrudes a bit from the ceiling so there is a gap between the cover the grill fits to and the ceiling. Not the worst looking thing, but not happy about that. Also, the instructions are absolutely the worst I've ever dealt with and I've dealt with a lot of install instructions for lighting fixtures, ceiling fans,dishwasher, hot water heater, faucets, etc. (replaced all of these in my 100 year old house). Also, it doesn't come with any wire nuts, so make sure to save the old ones or have some on hand. As for noise, my old fan was a mac truck and then started to squeak. By comparison this is surprisingly quiet--especially given all the negative comments on it.
Date published: 2012-05-05
Rated 5 out of 5 by from Great fan the light has regular light sockets for a... Great fan the light has regular light sockets for a screw in bulb in both standard size and a small one for a night light. Bought LED bulbs and I have the versatility of easily changing the bulbs if ever needed.
Date published: 2018-07-17
Rated 3 out of 5 by from Have 3 of these fan/light units in bathrooms during renovation. Worked fine until 2 out of 3 have... Have 3 of these fan/light units in bathrooms during renovation. Worked fine until 2 out of 3 have fans give out and need replaced. See other product.
Date published: 2018-08-27
Rated 1 out of 5 by from Waste of money Installed one of these in our kids' bathroom when the ancient 15+ year exhaust fan finally quit. The NuTone fan only lasted about 2 years - replaced it with the same fan to avoid the hassle of installing a completely different unit, only to have that one quit after less than 2 years. Save your time and money and look elsewhere.
Date published: 2012-08-31
Rated 5 out of 5 by from Great fan, nightlight on all the time This fan is powerful yet not as loud as others in it's class. Note that you'll need 3 switches for this one item, 1 for fan, 1 for central light and a 3rd for the nightlight. I avoided the 3rd switch by having my 4-watt nightlight wired on all the time. It's very bright for 4-watt and terrific for those night visits to the bathroom. This fan is also much cheaper on-line than in the store.
Date published: 2006-05-28
Rated 2 out of 5 by from purchased item Dec 2008 -issue May 2009 plastic fan came loose on mine. Caused annoying vibration. I drilled through the shaft of the motor and plastic fan and put a screw through the fan and shaft holding the plastic fan in location on shaft. Back to working order. See how long this last. Motor will be next thing to go. Only 1 year warranty. If I was to purchased another I would go with Harbor Breeze fan which has 10 year warranty. Actually purchased this fan but was able to get current fan working again..... For NOW.
Date published: 2011-01-15
Rated 4 out of 5 by from Numatone Bath light and Fan We found this product very verstile in serving our needs. It had an extremely quiet fan, good lighting and even a night light to make it easier for the children. It was a very quick and easy installation process. We also thought it was a good value for our money and since it is energy star rated hope it will help us save on energy cost as well.
Date published: 2006-06-19
Rated 1 out of 5 by from Nice fan/light. Installation instructions, not so much. The installation instructions on this unit are insufficient, in my opinion. The only time I had to refer to the instructions was when installing the grill/lens. The instructions say to install the grill springs in the slots in the HOUSING. They actually go in the slots in the flange that mounts to the housing. When looking at the unit, common sense tells you that the hole in the ceiling should be square and the round flange that mounts to the the housing with 2 tiny screws also needs to be mounted to the ceiling. After all, the flange has 8 holes drilled in it precisely for that purpose. The slots in the flange for the grill springs to pass through are outside the circumference of the 8 mounting holes and therefore are blocked by the surface of the ceiling. I called tech services and was told that the mounting hole in the ceiling has to be round and as big around as the flange so the springs can pass through the slots. Okay, then what do the 8 mounting holes attache to? Absolutely nothing. And the instructions are no help. Anytime you have to call tech support for something like this, there's a problem. My guess it that the people writing the instructions have no idea how to install this unit. I will avoid NuTone from now on.
Date published: 2014-04-02
