Internet #204209977

Model #49825

Store SKU #1000015592

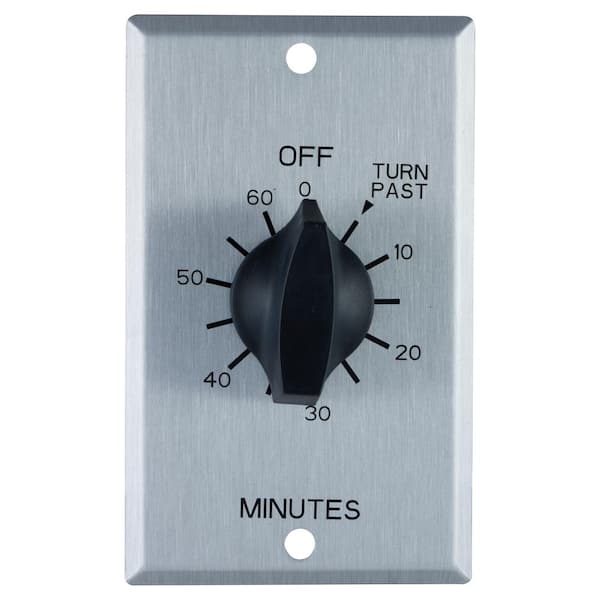

20 Amp 60-Minute In-Wall Spring Wound Timer Switch with Stainless Steel Wall Plate

  • Counts down to shut off lights and appliances (up to 60 minutes)
  • Replaces standard switch or older springwound timer
  • Helps cut energy costs and keep your home safe
  • See More Details
$1797

Frequently Bought Together

+
+
Price:
$1797

Product Overview

Defiant banner
Timer Specs
Amps, Voltage, Watts
CFL, LED, Incandescent
Location
Features
Product Manual
Warranty
The Defiant 20 Amp 60 Minute In-Wall Spring Wound Timer counts down to shut off at the time you desire up to 60 minutes. It can save you energy dollars by reducing the operation time of your electronics. This timer is compatible with CFL, incandescent and LED bulbs and is ideal for lights, exhaust fans, heaters and pumps. The timer can be installed on its own or with the included stainless steel wall plate.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Timers

20-Amp 60-Minute In-Wall Spring Wound Countdown Timer Switch, White
current product
20 Amp 60-Minute In-Wall Spring Wound Timer Switch with Stainless Steel Wall Plate
20 Amp Electromechanical SPST In-Wall Dial Timer15 Amp 7-Day Indoor In-Wall Astronomic Digital Timer, White
BrandWoodsDefiantIntermaticIntermatic
Name20-Amp 60-Minute In-Wall Spring Wound Countdown Timer Switch, White20 Amp 60-Minute In-Wall Spring Wound Timer Switch with Stainless Steel Wall Plate20 Amp Electromechanical SPST In-Wall Dial Timer15 Amp 7-Day Indoor In-Wall Astronomic Digital Timer, White
Price
$1140
$1797
$2681
$4385
Ratings
(79)
(31)
(11)
(506)
Timer TypeMechanicalMechanicalMechanicalAstronomical
Indoor/OutdoorIndoorIndoorIndoorIndoor
Electrical FeaturesNo Additional FeaturesProgrammable,Wall Plate IncludedProgrammable,Wall Plate IncludedProgrammable
Amperage (amps)202020 A15 A
Wattage (watts)250025001350 W1875
Mounting TypeIn-WallIn-WallIn-WallIn-Wall
Compatible Bulb TypeCFL,Incandescent,LEDCFL,Incandescent,LEDCFL,Incandescent,LEDCFL,Incandescent,LED
Voltage125 volt125 volt120 volt120 volt,277 volt
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
3
Product Height (in.)
4.5
Product Width (in.)
4.86

Details

Amperage (amps)
20
Color Family
Metallic
Color/Finish
Stainless steel
Compatible Bulb Type
CFL,Incandescent,LED
Electrical Features
Programmable,Wall Plate Included
Electrical Product Type
Timer
Indoor/Outdoor
Indoor
Maximum time setting (min.)
60
Mounting Type
In-Wall
Rating
General Purpose
Returnable
180-Day
Timer Type
Mechanical
Voltage
125 volt
Wattage (watts)
2500

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
1 Year Limited Warranty

Questions & Answers

3Questions5Answers

What’s the min/max input ac/dc voltage rating?

Asked by TB October 27, 2018
2
Answers

Hello Tb, thank you or your question. This item is rated for use up to 125VAC, 20 Amps, 2500 watts. If you have any further questions, please don't hesitate to respond or give us call between the hours of 7:00AM – 8:00PM Central Standard Time, Monday thru Friday at 1-800-654-8483. Thank you.

The load specification for 125 vac is "20 A Res./Gen., 7 A Tungsten, 1 HP". If the 20 A abbrevi...

Asked by George August 31, 2017
2
Answers

Not sure but leaving a heating appliance unattended my be a danger

Do they sell knobs seperately for defiant timers?

Asked by Heath November 14, 2015
1
Answer

Hi Heath, unfortunately we do not offer replacement knobs for this in-store timer as a singular purchase on Homedepot.com. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!

Customer Reviews

  • 31 Customer Reviews
  • 4 out of 5 stars overall
78% of customers recommended.
Overall Ratings
5star-icon(16)
4star-icon(8)
3star-icon(2)
2star-icon(1)
1star-icon(4)
Sort By:
Installed as expected, no real problems if you know what you're doing. As with all in-wall 'hidd...
Installed as expected, no real problems if you know what you're doing. As with all in-wall 'hidden' wiring, this is best left to a pro for personal safety, liability and potential fire hazard reasons. ESPECIALLY if you don't have the tools and experience to confirm and work with live electric lines. Spring load seems a bit light-weight compared to unit it replaced. Face plate pretty flimsy. Take care not to bend or scratch while installing. Installed for 5 days and used only a couple times to test. No predictions about reliability. So, between lightweight feel, thin faceplate and - as of now - no long term use, does not get a 5 star rating. But it is acceptable.
Was this helpful?
0
0
This timer work very well. I have had one for several years and liked it so much I picked up this...
Quality :
5
Value :
5
Seeds Program Review
(What's this)
This timer work very well. I have had one for several years and liked it so much I picked up this one for another bathroom. I got tired of telling everyone to turn off the exhaust fan. Now they can set the timer with a simple turn of a knob and the timer will turn off the exhaust fan in 5 minutes to one hour. The timer is UL approved which lets me rest a bit easier knowing that it has been tested for safety by a reliably testing company. It has a good looking clean finish with the stainless steel wall plate cover. It is a spring wound timer with no electronic timers to go wrong. It does make a small ticking sound just like a wind up alarm clock. It can be used for most types of lights, Incandescent, LED, or Fluorescent. I used mine on the bathroom exhaust fan. When turning the timer on, you should rotate the timer knob past the 5 minute mark. Going to, or past the 20 minute mark and moving it back for less time will insure that it will have enough spring pressure for the timer, so the timer won’t fail to turn off properly. There is a Warning about using this timer with an appliance that uses a heating element. Do not wire this timer to control an electrical outlet, since there is no telling what someone might plug into the outlet. I would like it if they would provide a small metal plate with the timer markings on it so that this timer could be mounted in a duplex wall box without using the full cover wall plate they do provide. This way I could install the timer in a duplex wall box that has the light switch and the exhaust fan switch side by side in the same box. Installing this timer into a single electrical wall box took a little bit of time to arrange the wires and wire nuts so that the timer would fit deep enough into the box. The timer unit is quite a bit larger than the single light switch it was replacing. I installed this timer in an existing electrical wall box, replacing a switch. My electrical box was not very deep. If installing in new construction, you’d be doing yourself a favor to use an extra deep electrical box. The instructions call for a box depth of 2 ½ inches deep. Comes complete with a wire nut for the ground wire, and all mounting screws necessary for normal installation.
Was this helpful?
0
0
DEFIANT Indoor Auto Shut Off Spring-Wound Timer This 60 minute spring-wound timer may be used wit...
Quality :
5
Value :
4
Seeds Program Review
(What's this)
DEFIANT Indoor Auto Shut Off Spring-Wound Timer This 60 minute spring-wound timer may be used with Incandescent, LED, or CFL The unit is made to mount into a wired electrical single gang box and is rated at 20 amps and is for indoor use only. It is also compatible with incandescent, CFL or LED bulbs and wires just like a common light switch. I used mine in my bathroom to control the ventilating fan. I had a double box with a double switch and a single toggle switch. I replaced the single toggle with this unit for the fan. As shown in the photos I used the existing metal switch plate to mount over the timer box. I then mounted the existing switch plate after which I mounted the timer cover using the hex nut. This application leaves the cover screw holes empty which I can live with. I could drill and tap the holes then use provided screws to fasten the timer cover to the existing switch plate. Timer is very quiet and is working as advertised. No more wasted electricity when I forget to turn the fan off after using the bathroom.
Was this helpful?
0
0
It started staying on the second day, timer not moving................
It started staying on the second day, timer not moving................
Was this helpful?
0
0
Response from Tech SupportApril 1, 2020
Hello Valued Customer, thank you for your review. This is certainly something that we did not expect to occur, and we are sorry for the inconvenience. As the manufacturer, we strive to provide our customers with high-quality products every time. We are committed to making this right and would love the opportunity to work with you directly to resolve the issue, as quickly as possible. When you have an opportunity, please give us a call between the hours of 7 AM – 8 PM Central Standard Time, Monday thru Friday at 1-800-654-8483, press option 4, and provide our Consumer Care Team with your personal ticket number 512194, so that we can resolve your issue promptly. If you’d prefer to email, our contact is bz@byjasco.com and please include your personal ticket number (512194) in the subject line. We look forward to assisting you in resolving this issue. GETechSupport
Used it to control light and heater in Closet and...
Used it to control light and heater in Closet and it works perfect! No more concerns the wife will leave the heater on by accident!
Was this helpful?
0
0
Works as intended. However is slightly too deep for the...
Works as intended. However is slightly too deep for the existing electrical box that the original light switch was in.
Was this helpful?
0
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
Works great....
Works great.
Was this helpful?
0
0
Too wide for standard wall switch box
I couldn't install in my old metal wall box as it was too wide for body and wires. If the wires came out of the back it might have worked. I returned it beforeI could use it.
Was this helpful?
0
0
Response from Tech SupportMay 21, 2019
Hi Henry, thank you for your feedback. You will find that most in-wall timer is slightly wider than your standard traditional switch because of the components and our case, interior parts, that is built inside the timer. The timer is design with terminal holes that will allow you to insert the wires instead of wrapping it around the screw terminal. The terminal screw allows for easy installation of the product and helps prevent wires from being jam-packed inside your wall box. Your opinion is very important to us. Feedback like yours is the key to helping our product improvement and future experiences for our customers.

If you have any other questions we can help you with, please give us a call at 1-800-654-8483, press option 4, and provide our Consumer Care Team with your ticket number 423255 so that we can resolve your issue promptly, or email us at bz@byjasco.com and include your ticket number (423255) in the subject line. Thank you and have a fantastic day! (Monday – Friday 7 AM – 8 PM CST). GETechSupport
A LITTLE DIFFERENT THAN THE ONE IT REPLACED, BUT...
A LITTLE DIFFERENT THAN THE ONE IT REPLACED, BUT IT WORKS GREAT
Was this helpful?
0
0
