Model # DL72

Internet #100352214

Store SKU #154725

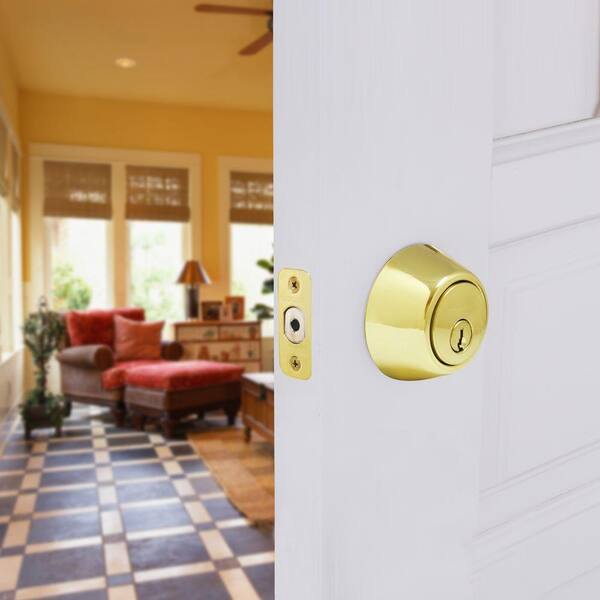

Defiant Double Cylinder Polished Brass Deadbolt
0050134061569

Defiant

Double Cylinder Polished Brass Deadbolt

$1197 /each

Choose Your Options

Polished Brass
  • Aged Bronze
  • Antique Brass
  • Polished Brass
  • Satin Nickel
  • Stainless Steel
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Featuring a Lifetime Guarantee, Defiant meets or exceeds ANSI Grade 3 Standards for residential use. This lock features a radius latch with an adjustable backset and optional drive-in feature. Defiant keyed locks can be re-keyed to fit your existing KW1 keyway. The Powder coated finish will provide years of durability. When used as a replacement lock only a screwdriver is need to make installation a snap.
  • Lifetime guarantee
  • Latch features an adjustable backset to fit 2-3/8 in. or 2-3/4 in. backset
  • Latch features a radius faceplate or can be easily converted to a drive-in style
  • Includes 2 keys
  • Easy replacement installation with only a screwdriver
  • For residential use
  • Drill, saw, pick and pry resistant
  • Meets ANSI grade 3 specifications for security
  • Not sure what type of lock you need? Check out our helpful buying guide here.

Product Overview

Model #: DL72
Sku #: 154725
Internet #: 100352214

Featuring a Lifetime Guarantee, Defiant meets or exceeds ANSI Grade 3 Standards for residential use. This lock features a radius latch with an adjustable backset and optional drive-in feature. Defiant keyed locks can be re-keyed to fit your existing KW1 keyway. The Powder coated finish will provide years of durability. When used as a replacement lock only a screwdriver is need to make installation a snap.

  • Lifetime guarantee
  • Latch features an adjustable backset to fit 2-3/8 in. or 2-3/4 in. backset
  • Latch features a radius faceplate or can be easily converted to a drive-in style
  • Includes 2 keys
  • Easy replacement installation with only a screwdriver
  • For residential use
  • Drill, saw, pick and pry resistant
  • Meets ANSI grade 3 specifications for security
  • Not sure what type of lock you need? Check out our helpful buying guide here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Assembled Depth (in.)
3.72 in
Assembled Height (in.)
2.55 in
Assembled Width (in.)
2.55 in
Deadbolt bore hole diameter (in.)
2.125
Deadbolt cross bore diameter (in.)
1.0
Deadbolt strike height (in.)
2.25
Deadbolt strike width (in.)
1.0
Deadbolt throw length (in.)
1.0
Deadbolt trim ring diameter (in.)
2.5
Projection (in.)
2.5
Required door thickness (in.)
1 3/8 to 1 3/4

Details

Backset size (in.)
Adjustable
Commercial Hardware Type
Cylinders
Commercial/Residential
Residential
Deadbolt Type
Double Cylinder Deadbolt
Deadbolt strike
Round corner
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Deadbolts
Electronic
No
Finish
Polished Brass
Hardware Finish Family
Brass
Hardware Included
Yes
Interior/Exterior
Exterior
Lock Type
Dbl Cyl Deadbolt
Material
Metal
Product Weight (lb.)
1.22lb
Returnable
90-Day
Security/ANSI Grade
ANSI Grade III (Good)
Total number of keys included
2

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
Lifetime Guarantee

Specifications

Dimensions

Assembled Depth (in.)
3.72 in
Assembled Height (in.)
2.55 in
Assembled Width (in.)
2.55 in
Deadbolt bore hole diameter (in.)
2.125
Deadbolt cross bore diameter (in.)
1.0
Deadbolt strike height (in.)
2.25
Deadbolt strike width (in.)
1.0
Deadbolt throw length (in.)
1.0
Deadbolt trim ring diameter (in.)
2.5
Projection (in.)
2.5
Required door thickness (in.)
1 3/8 to 1 3/4

Details

Backset size (in.)
Adjustable
Commercial Hardware Type
Cylinders
Commercial/Residential
Residential
Deadbolt Type
Double Cylinder Deadbolt
Deadbolt strike
Round corner
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Deadbolts
Electronic
No
Finish
Polished Brass
Hardware Finish Family
Brass
Hardware Included
Yes
Interior/Exterior
Exterior
Lock Type
Dbl Cyl Deadbolt
Material
Metal
Product Weight (lb.)
1.22lb
Returnable
90-Day
Security/ANSI Grade
ANSI Grade III (Good)
Total number of keys included
2

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
Lifetime Guarantee

Questions & Answers

What is the difference between a single and double cylinder deadbolt lock?

Looking for a deadbolt lock with key entry outside and inside.
Asked by: autumn
single is keyed on one side. Double is keyed on both sides.
Answered by: tom
Date published: 2017-09-20

I would like to have the same key to open both front & back gates. but you don't have options for specific key#

Please update system, cause I still need specific key #, & your store doesn't have it.
Asked by: Albert
The packaging has a key number on it and you should be able to buy two with the same number, which is what I did. They also should be able to be rekeyed matching.
Answered by: tom
Date published: 2017-09-20

Is this unit keyed on both sides?

Is this unit keyed on both sides?
Asked by: Lori
yes it is keyed on both sides.
Answered by: tom
Date published: 2017-09-20

Template?

Dose this lock have a template for new installation?
Asked by: Jim
These units do have a template for new installation on the installation guide. If you flip over your installation instructions to the back, on the top right corner of the guide, there is a template that you can cut out and tape to the door for installation. Also please keep in mind that The Home Depot also sells door installation kits that can help you drill perfect latch and front bore holes in your door. These kits can be found on HomeDepot.com or at your local Home Depot store. If you have any further questions on this, please contact our customer service team at 1-877-663-5625 option 2.
Answered by: BrandAnswers
Date published: 2016-10-01
  • y_2017, m_11, d_16, h_1CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_5
  • loc_, sid_100352214, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 102ms
  • QUESTIONS, PRODUCT

Customer Reviews

Double Cylinder Polished Brass Deadbolt is rated 4.2 out of 5 by 131.
Rated 5 out of 5 by from I chose this color to closely match the single cylinder deadbolt that was previously on the door.... I chose this color to closely match the single cylinder deadbolt that was previously on the door. Again, I STRONGLY prefer a double cylinder deadbolt so entry won’t be as simple for a criminal to break the glass and reach inside to unlock the door. Nope! Make them have to make a BUNCH of noise and take more time to get inside...then surprise them with a shotgun blast to the chest! #badguystopper
Date published: 2017-09-26
Rated 5 out of 5 by from I prefer these double cylinder deadbolt locks. I NEVER leave a key inside the lock for safety rea... I prefer these double cylinder deadbolt locks. I NEVER leave a key inside the lock for safety reasons. If a person breaks the glass they can not unlock the door. They would literally have to kick the entire door open which would give me time to take cover and get in a hasty shooting position.
Date published: 2017-09-26
Rated 5 out of 5 by from For the price, the Defiant deadbolt meets my expectations. The tumblers are a little stiff. I w... For the price, the Defiant deadbolt meets my expectations. The tumblers are a little stiff. I will be trying graphite and repetition to loosen them. I had intended to swap one of the Defiant deadbolt double cylinders with a single cylinder Kwikset Lockset but the key insert did not match up. I should have replaced the Kwikset lockset with a Defiant one.
Date published: 2017-09-19
Rated 5 out of 5 by from The double cylinder deadbolt he was exactly what I wanted... The double cylinder deadbolt he was exactly what I wanted to login and look out easy to assemble fast convenient and well worth what I paid I would highly recommend this double cylinder defiant luck to anybody that wants to lock in lock up
Date published: 2017-08-31
Rated 5 out of 5 by from Good product If you are handy and you already have the holes on the door all you have to do is put everything in place and use it. All you need is a screwdriver. Double cylinder is the way to go for back and front doors. Security first.
Date published: 2017-08-01
Rated 1 out of 5 by from Repeated attempts to coordinate keys to lock (as opposed to... Repeated attempts to coordinate keys to lock (as opposed to deadbolt) are still in progress after two trips; also, strikerplate is tiny compared to hole in doorframe purchased at same time from Home Depot. Goofy.
Date published: 2017-07-13
Rated 5 out of 5 by from This the second one that I bought and I was very happy that I could get a second one with a match... This the second one that I bought and I was very happy that I could get a second one with a matching key to the first one. It was very easy to install and I works excellently.
Date published: 2017-09-20
Rated 3 out of 5 by from I got the wrong item and lost my return slip... I got the wrong item and lost my return slip I needed the one that has a hand turn for the inside,but no worries will find a spot for it somewhere.
Date published: 2017-08-29
