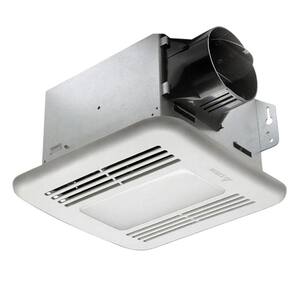

GreenBuilder Series 80 CFM Ceiling Bathroom Exhaust Fan with LED Light and Humidity Sensor, ENERGY STAR

$137.50
Apply Now
Pay $112.50 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Dimmable LED lasts a minimum of 30,000 hours - 3X longer than CFL
  • Flushmount installation with long-lasting, dimmable LED lights
  • Includes humidity sensor and adjustable, low speed controls
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Delta Breez GreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a Dimmable LED Light option as well as humidity sensing option. BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price. HVI-Certification promises our fans are independently tested and rated to ensure they deliver on promised performance.

Highlights

  • 80 CFM extracts air to properly vent bathrooms up to 80 sq. ft. while the brushless DC motor technology saves you energy with an efficiency rating of 7.2 CFM/Watt
  • Quiet operation at 0.8 Sones or less
  • The cutting-edge, long-lasting brushless DC motor is engineered to outlast traditional AC motor fans by 2.5 times (Minimum 70,000 hours)
  • Built-in soft start function to increase bearings' life, motor equipped with thermal cutoff fuse and automatically powers OFF when impeller is locked abnormally for safety
  • Sleek, low profile installation with a flush mount
  • Features a Dimmable LED light for adjustable ambiance (dimmable switch not included), which has a lifespan of 30,000 hours (compared with 10,000-hours for CFL lights)
  • The integrated Dimmable LED Main Light outputs 850 Lumens, with a color temperature of 2700K, and a CRI value of 90 for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • ENERGY STAR qualified for energy efficient operation
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring, UL approved for ceiling and wall mount installation
  • Power rating of 120-Volt/60Hz, Low power consumption at 11-Watt
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively
  • Fan can operate in either full speed mode or humidity control mode by flipping a manual switch, adjustable humidity set points between ~50% to ~80% RH
  • For humidity control mode, the fan runs continuously at either full speed (80 CFM) or at a pre-set lower level (0 or 50 CFM) when the humidity is either above or below the user-adjustable set-point.
  • Blue LED indicator light shows when Humidity Control Mode is active
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Ceiling mount ventilating fan with Dimmable LED Light and Humidity Sensor
  • Included: (1x) Detachable 4 in. Duct Adapter; (1x) 13-Watt Dimmable LED light (equivalent to a 60-Watt incandescent bulb)
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 303507785

Model # GBR80HLED

Store SKU # 1002812692

Specifications

Dimensions: H 5.75 in, W 8 in, L 10.75 in

Dimensions

Housing Length (in.)

8.25

Housing Width (in.)

8

Product Height (in.)

5.75 in

Product Length (in.)

10.75 in

Product Width (in.)

8 in

Details

Air Volume (CFM)

80

Amperage (amps)

0.33

Color/Finish

White

Duct Compatible Sizes

4 in

Features

Humidity Sensing, Light

Grill Shape

Square

Housing Material

Galvanized Steel

Included

Hardware, Light Bulb

Installation Type

Ceiling, Wall

Light Bulb Type Included

Integrated LED

Maximum Light Bulb Wattage (watts)

13

Maximum Room Size (sq. ft.)

80

Mount Type

Flush Mount, Semi-Flush Mount

Number of Bulbs Required

1

Pack Size

1

Product Weight (lb.)

6.1 lb

Returnable

90-Day

Room Size

Medium Room Fan

Voltage (V)

120 V

Wattage (watts)

11

Warranty / Certifications

Certifications and Listings

Energy Star, UL Certified, cUL Listed

Manufacturer Warranty

3 Year Limited Warranty

Questions & Answers

282Questions
caret
Q:I am going to install this inside a shower enclosure to replace an existing light. Where is the GFI installed? Is it a GFI switch?
by|Mar 4, 2024
2 Answers
Answer This Question

A:  Do not install it in the shower enclosure. That's DANGEROUS. I would recommend locating it 1.5 - 2 FT away from the shower enclosure. It would be great if you could hook it up to the " LOAD" side of your GFCI bathroom receptacle.

by|Mar 8, 2024

    A:  This fan is not rated for use in a wet location, (ie) bathrooms. Use over a shower will result in a dangerous installation and immediate unit failure. It will also void the warranty. Mike

    by|Mar 7, 2024
    1 found this answer helpful
    caret
    Q:there are only two speed settings on the unit: "0" and "60". how do I set it to max speed of 100 CFM?
    by|Jan 21, 2024
    0 Answer
    Answer This Question
    caret
    Q:Is this a good size for a 4x4 shower stall
    by|Jan 20, 2024
    1 Answer
    Answer This Question

    A:  This should not be installed in the / right above a shower stall. First, It is dangerous and second, it wouldn't lasted a month in a wet location. 1.5-2 Ft away from the shower stall would be a bare minimum distance. Make sure you connect it to the GFCI

    by|Mar 8, 2024
      caret
      Q:Can the fan and light be on separate switches?
      by|Jan 9, 2024
      1 Answer
      Answer This Question

      A:  Yes, I installed mine on separate switches

      by|Jan 24, 2024
        Showing 1-4 of 282

        Customer Reviews

        4.5 out of 5

        • 4.5 out of 994 reviews
        • 87% recommend this product
        Filter by:
        Showing 1-10 of 994 reviews
        I installed it on the wall. Works well thus far. Much quieter than the one it replaced.
        by
        • Verified Purchase
        Great exhaust fan
        Good quality and design. Very happy with the noise level.
        by
          • Recommended
          Hard to maintain - 3yrs ownership
          Pros: This is an energy-efficient fan and it is quiet. It was as easy to install as any other bathroom fan. Cons: This replaced an old 80 cfm Broan fan but I don't think it is any better at removing steam from a shower than the Broan. This is because the DeltaBreez fan is harder to keep clean. The fan cage is not removable from the motor so you can't just rinse it in a sink the way you can totally clean a Broan fan. A vacuum can't remove the dust that builds up on the blades.
          by
            4 found this review helpful
            Large gaps
            The exhaust flap has huge gaps. Air will constantly leak.
            by
            Response from THD-CSJan 28, 2022
            Thanks for taking the time to share, Wes1776. We're sorry to hear that you're not happy with your purchase. Should you have any questions or further feedback, please reach out to us directly at 1+(888) 979-9889. We'd love to hear from you!
              • Recommended
              3 found this review helpful
              LOOK AT MY PHOTO FIRST! Their photo is fake.
              Attached you will see that the reason they are using a pasted over photo, which I wondered about on all the listings selling this. It is because the lamp does not cover the giant hole for the vent!! You see it everywhere except standing under it. Now I have to hire people to try to do something about covering part of it -- but that reduces the point of the vent! Poorly designed, lamp itself ooks great, but the gaping hole is ridiculous.
              by
              Response from THD-CSApr 1, 2021
              Dear Valued Home Depot Customer, We have reached out to the manufacturer and their reply is, We are very sorry to hear of your dissapointment. We are committed to providing the highest level of product quality and client satisfaction. We would love the opportunity to turn things around and encourage you to reach out to us at 1+(888) 979-9889, so we can have the opportunity to assist you further.
                4 found this review helpful
                Won't Keep the Cold Out
                During installation I noticed that the exhaust baffle does not close completely. There is a gap designed into it. The gap is about 1/4" around the bottom, and much larger on the top. This certainly will not prevent drafts in the bathroom during cold WI winters! Poor design! I called customer support to see if it was the wrong part and all they could say is "No, I think that's the way it's supposed to be. The metal ones do a bit better.". Not helpful.
                by
                Response from THD-CSFeb 22, 2021
                Dear Valued Home Depot Customer, We have reached out to the manufacturer and their reply is, We're sorry to hear that you're dissatisfied with your purchase. We appreciate you taking the time to share and we value your feedback!
                  5 found this review helpful
                  The light is bright. I was replacing a recessed lighting...
                  The light is bright. I was replacing a recessed lighting fixture and was worried the light wouldn’t be bright enough - as if I was in a run down motel or sketchy alley. It’s definitely as bright as the recessed lighting fixture I replaced. I’m happy with the brightness. The fan adequately vents my 65 square foot bathroom of moisture and stink. My mirrors don’t fog up anymore. After a 15 foot run of semi-rigid duct (6ft) and PVC pipe (9ft), the fan is strong enough to easily open the gable wall vent flap. Highly recommend.
                  by
                  • Verified Purchase
                  2 found this review helpful
                  Fan was easy to install; ruggedly built and very quiet in operation. Plug-in light and fan wirin...
                  Fan was easy to install; ruggedly built and very quiet in operation. Plug-in light and fan wiring is a nice feature.
                  by
                  • Verified Purchase
                  • Recommended
                  2 found this review helpful
                  Soo quiet that no body noticed I'm done installing it and its running or working.
                  Soo quiet that no body noticed I'm done installing it and its running or working.
                  by
                  • Verified Purchase
                  2 found this review helpful
                  Leaky Delta Breez GreenBuilder Series 80 CFM Ceiling Exhaust Bath Fan with LED Light
                  This exhaust fan is no good because it leaks cold air into the bathroom. To keep from shivering while in the bathroom, I had to tape a bubble envelope over it and tell my wife not to use it. Guess I was wrong in following advice to replace the old fan to keep this exact same thing from happening!
                  by
                  Response from THD-CSJan 29, 2020
                  Dear Homedepot Customer,We are sorry to hear that you’re not satisfied with your purchase. We want to ensure that you have the best possible experience with our products and would love for you to reach out to us directly so that we can have the opportunity to assist you further. Please contact us at 1+(888) 979-9889. We look forward to hearing from you!
                    5 found this review helpful
                    Showing 1-10 of 994 reviews
