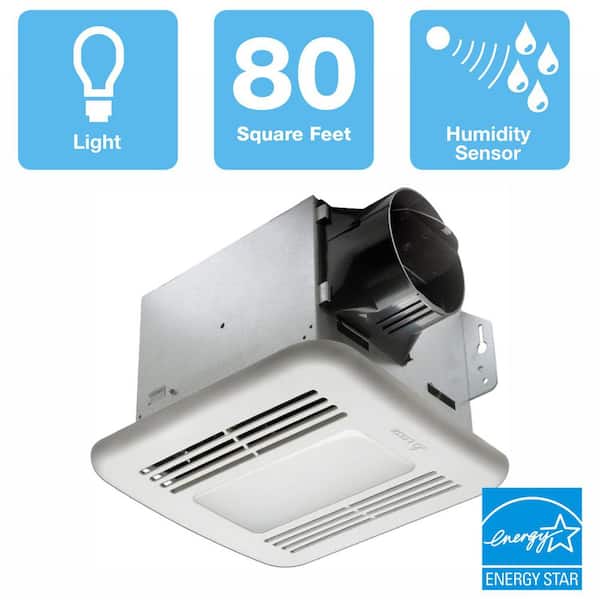

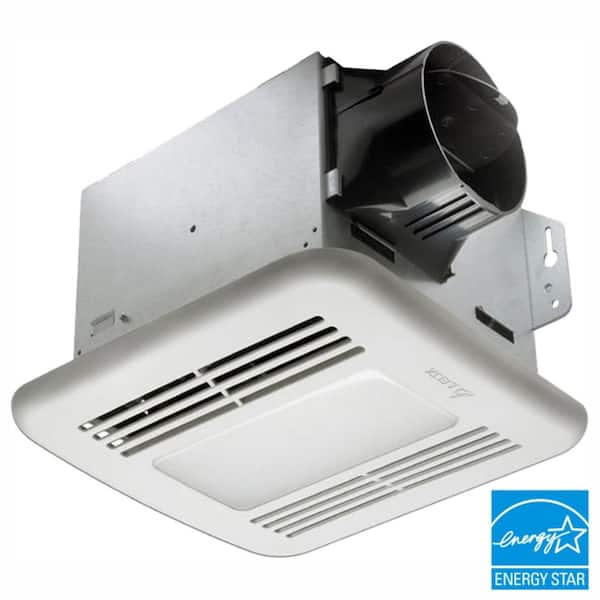

Integrity Series 80 CFM Ceiling Bathroom Exhaust Fan with Dimmable LED Light, Energy Star

$94.63
Apply Now
Pay $69.63 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Easy to install requiring no cuts
  • Operates quietly and backed with three-year warranty
  • Dimmable LED lasts a minimum of 30,000 hours - 3X longer than CFL
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The Delta Breez 80 CFM Recessed Ceiling Bathroom Exhaust Fan is super quiet, ENERGY STAR qualified, and features an LED Light. The integrated dimmable LED light outputs 850 Lumens (dimmable switch not included) and has a lifespan of 30,000 hours (compared with 10,000 hours for CFL lights). Compact housing makes for easy installation and replacement of older bath fans.

Highlights

  • 80 CFM extracts air to properly vent bathrooms up to 80 sq. ft. while the brushless DC motor technology saves you energy with an efficiency rating of 7.2 CFM/Watt
  • Quiet operation at 1.3 Sones or less
  • The cutting-edge, long-lasting brushless DC motor is engineered to run continuously, outlasting traditional AC motor fans by 2.5 times (Minimum 70,000 continuous hours)
  • Manages moisture in bathrooms up to 80 sq.ft.
  • Sleek, low profile installation with a flush mount
  • Features a dimmable LED light for adjustable ambiance (dimmable switch not included), which has a lifespan of 30,000 hours (compared with 10,000-hours for CFL lights)
  • The integrated dimmable LED main light outputs 850 Lumens, with a color temperature of 3,000K, and a CRI value of 90 for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • ENERGY STAR qualified for energy efficient operation
  • Power rating of 120V/60Hz, low power consumption at 11.7-W
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring, UL approved for ceiling and wall mount installation
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Built-in soft start function to increase bearings' life, motor equipped with thermal cutoff fuse and automatically powers off when impeller is locked abnormally for safety
  • Included: one Detachable 4 in. Duct Adapter; one 13-W Dimmable LED light (equivalent to a 60-W incandescent bulb)
  • Click here to learn more about Eco Options and Energy Efficiency
  • Return Policy

Product Information

Internet # 301891399

Model # ITG80LED

Store SO SKU #1002478308

Specifications

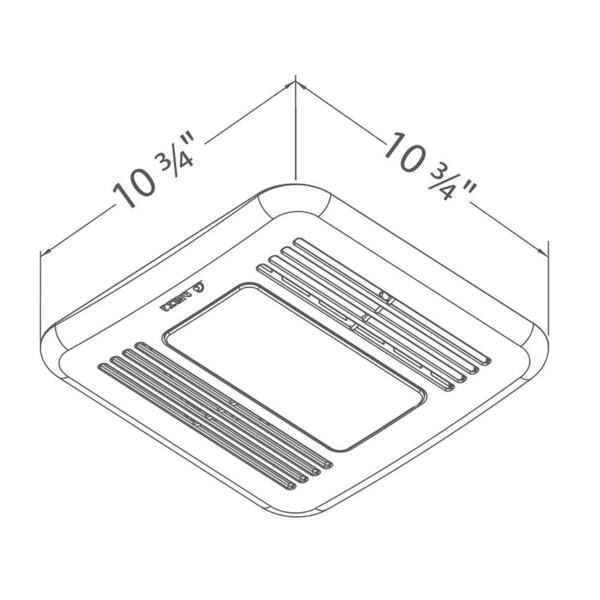

Dimensions: H 5.75 in, W 7.25 in, L 10.75 in

Dimensions

Housing Length (in.)

7.5

Housing Width (in.)

7.25

Product Height (in.)

5.75 in

Product Length (in.)

10.75 in

Product Width (in.)

7.25 in

Details

Air Volume (CFM)

80

Amperage (amps)

0.14

Color/Finish

White

Duct Compatible Sizes

4 in

Features

Light

Grill Shape

Square

Housing Material

Galvanized Steel

Included

Hardware, Light Bulb

Installation Type

Ceiling, Wall

Light Bulb Type Included

Integrated LED

Maximum Light Bulb Wattage (watts)

13

Maximum Room Size (sq. ft.)

80

Mount Type

Flush Mount, Semi-Flush Mount

Number of Bulbs Required

1

Pack Size

1

Product Weight (lb.)

4.8 lb

Returnable

90-Day

Room Size

Medium Room Fan

Voltage (V)

120 V

Wattage (watts)

11.3

Warranty / Certifications

Certifications and Listings

Energy Star, UL Certified, cUL Listed

Manufacturer Warranty

3 Year Limited Warranty

Questions & Answers

140Questions
caret
Q:What color is the outside round edging that shows on ceiling? Doesn’t say anything about the color and cant be sure from picture
by|Jun 10, 2024
0 Answer
Answer This Question
caret
Q:Figures J & K are missing from the instructions so it's not clear what the bendable tabs do and how the grill mounts to the box. I don't know if the box should be flush to the drywall or if can be mounted higher. Can instructions be fixed?
by|Jun 2, 2024
0 Answer
Answer This Question
caret
Q:Does this exhaust fan have a light 🤔?
by|Apr 28, 2024
1 Answer
Answer This Question

A:  Look at ones that say they have a light. Come on

by|Apr 28, 2024
    caret
    Q:I am putting this in a WC (toilet only) so humidity is minimal. I see from other Qs that it can be connected to go on with a wall switch. Will it then stay on till turned off by switch, or will it time off due to low humidity by itself. If so how soon?
    by|Apr 22, 2024
    0 Answer
    Answer This Question
    Showing 1-4 of 140

    Customer Reviews

    4.5 out of 5

    • 4.5 out of 540 reviews
    • 83% recommend this product
    Filter by:
    Showing 1-10 of 540 reviews
    I replaced a 25yr old bathroom fan for this one. I can tell you it is super quite! Also, does it ...
    I replaced a 25yr old bathroom fan for this one. I can tell you it is super quite! Also, does it move it air! The final test was taking a long hot shower after the install and the mirror didn’t have a single bit of fog! Install was simple and I love that it saves on energy, compared to the old one. If you’re thinking about a new bath fan... get this one. (Go 80cfm or more)
    by
      • Recommended
      9 found this review helpful
      Was delivered pretty quick. Fairly easy to install. I had to access the attic to install but it...
      Was delivered pretty quick. Fairly easy to install. I had to access the attic to install but it was pretty straight forward. I like how quiet it operates. Sound was one of my biggest factors when buying and this unit did not disappoint. The additional light in the bathroom near the shower is a plus as well. I would definitely recommend this to anyone lookin for a quiet bathroom fan.
      by
      • Verified Purchase
      • Recommended
      2 found this review helpful
      Good fan at very reasonable price. Very quiet...though it...
      Good fan at very reasonable price. Very quiet...though it does take a second or two to spin up. I replaced two builder's grade units in my bathroom--one above the shower and one in toilet closet. Measured it with a sound app on my iPhone at only 47 decibels.
      by
      • Verified Purchase
      5 found this review helpful
      8x8 bathroom and 80 CFM should be plenty for 64 square feet. I see very little to no difference ...
      8x8 bathroom and 80 CFM should be plenty for 64 square feet. I see very little to no difference from the contractor grade 50 CFM I replaced. I will likely return it.
      by
      Response from THD-CSSep 29, 2020
      Dear Valued Home Depot Customer,Thank you Tommy, we appreciate you taking the time to share. We're sorry to hear that you're not satisfied with your purchase. We want to ensure the best possible experience with your purchase, and we would love for you to reach out to us directly so that we can have the opportunity to assist you further. Please, contact us at 1+(888) 979-9889.
      • Verified Purchase
      2 found this review helpful
      The construction and durability of the fan is very good. Even the plastic parts seem adequately ...
      The construction and durability of the fan is very good. Even the plastic parts seem adequately sturdy. The hardest part of the installation was connecting the fan to a new exhaust duct. Prior homeowners had no exhaust duct work, so I had to buy new duct work and extensions and a cap so that the bathroom vent could direct the air upward and outward instead of just blowing into the attic and insulation. After pre-assembly of the duct work (which took quite a bit of time), attachment to the fan was relatively quick and easy using Nashua foil tape. Attachment of the wiring was a little hard, trying to hold the fan body unit up while trying to connect the wires but I eventually overcame and completed the task. It was noted that there were no wire connectors provided. Thankfully, I already had some in my home tackle. I drilled three hole into the joist and connected the fan body to the joist with long screws (also not provided but I had some good wood screws that did the trick). The inner electrical connection was easy via a provided plug-in. The light kit was equally easy with a wired plug-in and spring-wired connectors for the lighting fixture itself, enabling easy push up and into place to complete the project. I love this fan because: 1. The fan does a great job of drawing steam and odors out of the bathroom with very little sound. The sones on this unit are very low. 2. The light is bright and awesome. It really helps brighten the bathroom allowing folks in the shower to see better. I wholeheartedly recommend this fan.
      by
      • Verified Purchase
      • Recommended
      12 found this review helpful
      Smart Exhaust Fan
      I'm a weekend diy kind of guy. Our old fan wasn't exhausting the moisture anymore so I picked up one of these. Key points Same footprint as my older fan unit (hole size) Doesn't sound like a broken electric fan Mostly quiet, has a slight humming at 1.0 sone. Bluetooth speaker Took about 1hr to install. The install was easy. Watch the Delta install video and reused the wood screws from the old fan. Took a bit of time to maneuver the unit in the hole. The exhaust vent works really well. Before the mirror would be 100% fogged up during winter season. Now I only get the very top corner. I'm extremely happy with this purchase, I purchased another one for the second bathroom. Best part, I 3D printed a Google Home Mini mount and replaced the small Bluetooth speaker.
      by
        • Recommended
        7 found this review helpful
        Easy to setup. I replaced an old NuTone circular housing fan with this fan. Most of my work in pa...
        Easy to setup. I replaced an old NuTone circular housing fan with this fan. Most of my work in patching the big circular hole in the ceiling since most of the new exhaust fans come in square/rectangle housing. Only challenge is that you have to use a small length screw driver, about 7 inches in length (width of the housing) while driving the housing screws into the wood. Such less room within the housing makes driving the screw a bit of a task. I presume this would be challenge with driving screws with any housing if mounting from the sides. There is no need to have access to the attic for side installation. Alternatively an angled drill machine should be helpful.
        by
        • Verified Purchase
        • Recommended
        2 found this review helpful
        Works great! Fan is super quiet and Bluetooth speaker plays music very clearly. No problems with ...
        Works great! Fan is super quiet and Bluetooth speaker plays music very clearly. No problems with installation.
        by
        • Verified Purchase
        • Recommended
        1 found this review helpful
        This bath fan replaced our old fan that stopped working in our master bath. I figured if I had to...
        This bath fan replaced our old fan that stopped working in our master bath. I figured if I had to be pulling things out of my ceiling, then I wanted an upgrade, so went with one that is more quiet and has a speaker. So far this works great. It keeps mirrors clear and humidity off our walls during showers. It is quieter than our previous fan, which had the same CFM rating. It is quiet, but loud enough that you can tell when it is on and also has a small and inconspicuous blue light to let you know the speaker is active. The speaker is loud enough to hear music while I am drying my hair or showering, but the fan doesn't take up larger space than our standard small hole because of the fan. I am happy with the overall purchase. The only reason I give it 4 instead of 5 stars is that I feel like the price tag for this fan (and bath fans in general) is a little high.
        by
        • Verified Purchase
        • Recommended
        1 found this review helpful
        I receiver the DELTA BREEZ 100 CFM INTEGRITY BATHROOM EXHAUST FAN WITH EDGE-LIT DIMMABLE LED LIGH...
        I receiver the DELTA BREEZ 100 CFM INTEGRITY BATHROOM EXHAUST FAN WITH EDGE-LIT DIMMABLE LED LIGHT, WHITE. I had the fan put in by a contractor, I usually do my own work but have a knee problem. The fan was easy to install it took the man about 1 1/2 hours to do it. The results are great, I can not believe how quiet the fan is and still move a lot of air. The light is brighter than the old two bulb light, but not glaring. I'm very happy with the light/fan.
        by
        • Recommended
        10 found this review helpful
        Showing 1-10 of 540 reviews
