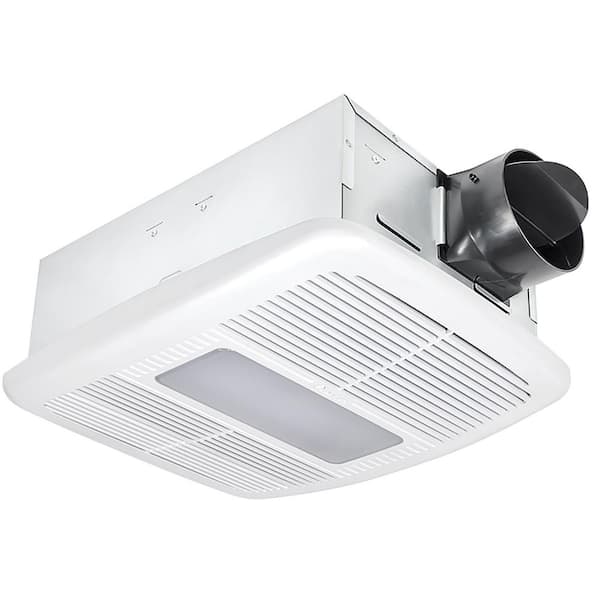

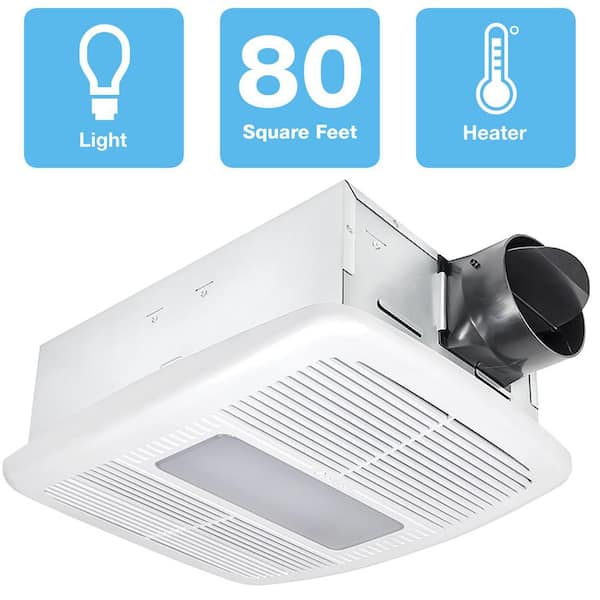

Radiance Series 80 CFM Ceiling Exhaust Bathroom Fan with Dimmable LED Light and Heater

$14100
Apply Now
Save up to $100 on your qualifying purchase.
Apply for a Home Depot Consumer Card
  • Heater included with built in thermostat to regulate temperature
  • Dimmable LED lasts a minimum of 30,000 hours - 3X longer than CFL
  • To complete installation, a dedicated 15 Amp circuit is required
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

++
Price:
$14100

Product Overview

The Delta BreezRadiance RAD80LED combines a quiet bath fan, LED light and heater all in 1 with built-in thermostat and brushless DC motor for superior reliability and efficiency. Airflow rating of 80 CFM (10%) and 1.5 Sones at 0.1 static pressure. Power consumption approximately 10.5-Watt with an efficiency rating approximately 7.6 CFM/Watt. Duct diameter no less than 4 Built-in thermostat to regulate temperature. Features a 1300-Watt heating element with built-in thermostat for consistent temperature and conforms to cUL safety standards. Metal guard to help prevent user contact with heating wire. Heater element with 1300-Watt Heater module equipped with thermal cutoff fuse and thermostat.
  • Innovative Brushless DC motor technology saves you energy with an efficiency rating of 7 CFM/Watt
  • Annual exhaust fan energy cost for 24/7 operation is approximately $12.31 (Based on U.S. average retail electricity and HVI testing labs. Actual results may vary)
  • The cutting-edge, long-lasting brushless DC motor is engineered to run continuously, outlasting traditional AC motor fans by 2½ times (Minimum 70,000 continuous hours)
  • Built-in soft start function to increase bearings' life, motor equipped with thermal cutoff fuse and automatically powers OFF when impeller is locked abnormally for safety
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Ceiling mount ventilating fan with Dimmable LED Light and heater
  • Compact housing for easy retrofit and replacement of older bath fans, attractive grille complements any decor
  • Quiet operation at 1.5 Sones or less
  • Power rating of 120-Volt/60Hz, Low power consumption at 11.7-Watt
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring, UL approved for ceiling and wall mount installation
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively
  • 1300W heating element evaluated by cUL for safety standards
  • Integrated thermostat offers a consistent temperature, Pre-filter blocks dust from clogging up the heater
  • Heater module equipped with thermal cut-off fuse for safety and a metal guard to prevent user contact with heating wire
  • Features a Dimmable LED light for adjustable ambiance (dimmable switch not included), which has a lifespan of 30,000 hours (compared with 10,000-hours for CFL lights)
  • The integrated Dimmable LED Main Light outputs 850 Lumens, with a color temperature of 2700K, and a CRI value of 90 for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • Included: (1x) Detachable 4 in. Duct Adapter; (1x) 13-Watt Dimmable LED light (equivalent to a 60-Watt incandescent bulb)



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Radiance Series 80 CFM Ceiling Exhaust Bathroom Fan with Dimmable LED Light and Heater

Compare Similar Bath Fans

Heat-A-Vent 70 CFM Ceiling Bathroom Exhaust Fan with 1300-Watt Heater
current product
Radiance Series 80 CFM Ceiling Exhaust Bathroom Fan with Dimmable LED Light and Heater
ExclusiveQT Series 130 CFM Ceiling Bathroom Exhaust Fan with Light and Night Light, ENERGY STAR*QT Series 110 CFM Ceiling Bathroom Heater Exhaust Fan with Light and Nightlight
BrandBroan-NuToneDelta BreezBroan-NuToneBroan-NuTone
NameHeat-A-Vent 70 CFM Ceiling Bathroom Exhaust Fan with 1300-Watt HeaterRadiance Series 80 CFM Ceiling Exhaust Bathroom Fan with Dimmable LED Light and HeaterQT Series 130 CFM Ceiling Bathroom Exhaust Fan with Light and Night Light, ENERGY STAR*QT Series 110 CFM Ceiling Bathroom Heater Exhaust Fan with Light and Nightlight
Price
$11722
$14100
$17900
$30500
Ratings
(104)
(512)
(259)
(105)
Air Volume (CFM)7080130110
Fan Sound Level (Sones)4.01.51.50.9
Housing Width (in.)7.8758.2511.37511.375
Housing Length (in.)8.2514.37510.517.625
Maximum Room Size (sq. ft.)6580125105
FeaturesHeaterHeater,LightLight,NightlightHeater,Light,Nightlight
Installation TypeCeilingCeiling,WallCeilingCeiling
Grill ShapeRectangleRectangleRectangleRectangle
Mount TypeRecessedFlush Mount,Semi-Flush MountRecessedRecessed
IncludedNo Additional Items IncludedHardware,Light BulbLight BulbNo Additional Items Included
View ProductView ProductView ProductView Product

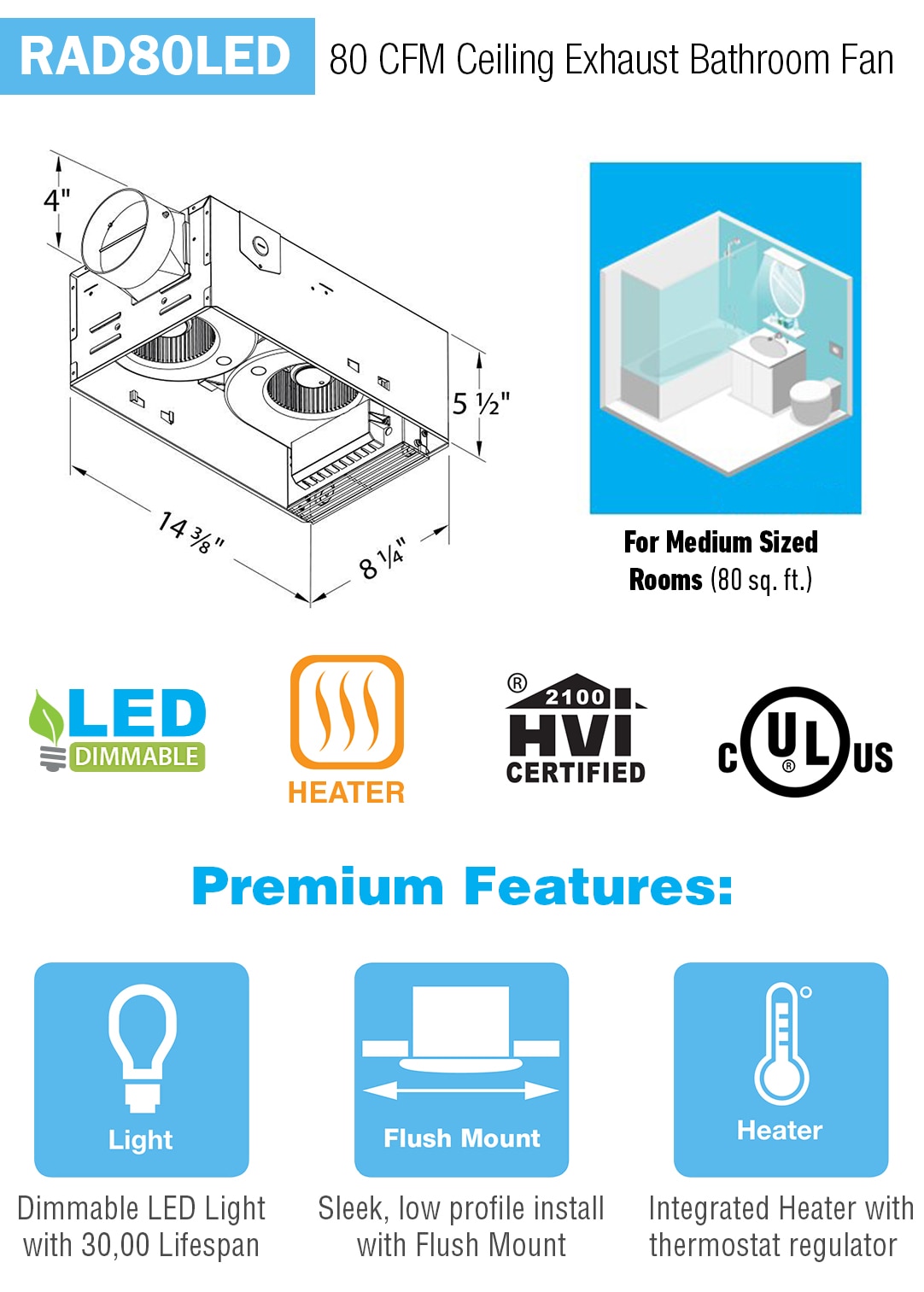

Specifications

Dimensions

Housing Length (in.)
14.375
Housing Width (in.)
8.25
Product Height (in.)
5.5
Product Length (in.)
10.6875
Product Width (in.)
8.25

Details

Air Volume (CFM)
80
Amperage (amps)
11
Area Heated (Sq. Ft.)
80
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
1.5
Features
Heater,Light
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
Hardware,Light Bulb
Installation Type
Ceiling,Wall
Light Bulb Type Included
Integrated LED
Maximum Light Bulb Wattage (watts)
13
Maximum Room Size (sq. ft.)
80
Mount Type
Flush Mount,Semi-Flush Mount
Number of Bulbs Required
1
Pack Size
1
Product Weight (lb.)
10.4
Returnable
90-Day
Room Size
Medium Room Fan
Voltage (volts)
120
Wattage (watts)
10.5

Warranty / Certifications

Certifications and Listings
HVI Certified,UL Certified,cUL Listed
Manufacturer Warranty
3 Year Limited Warranty
