Model #SLM70

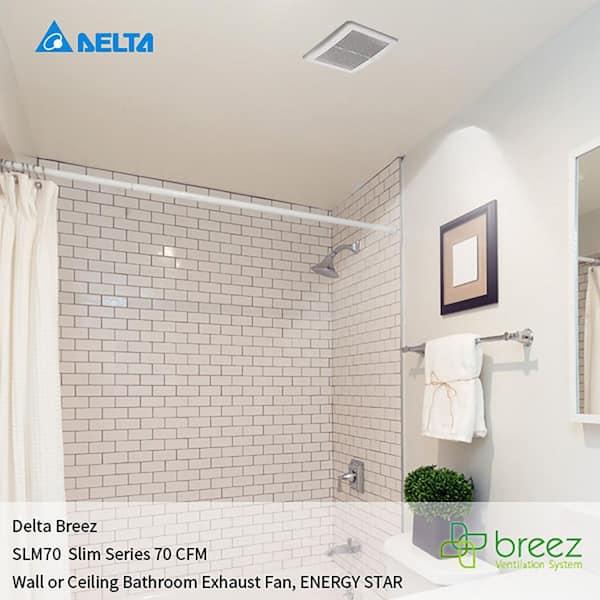

Slim Series 70 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAR

  • Easy to install - roomside / no-cut installation
  • Operates quietly and backed with 3-year warranty
  • Flush mount design with slim 4 in. housing depth
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Room Size
Sones Level
CFM
Duct Size
No Cut Installation
Housing Width
Housing Length
Guaranteed to outlast many household appliances, this Delta Breez Slim Series 70 CFM Wall or Ceiling Exhaust Bath Fan is powered by a DC brushless motor that cuts the power used and noise level in half compared to other bathroom fans. It features a quiet operation of 2.0 sone and Soft Start technology, which quietly ramps the motor to top speed thus reducing the fan's wear. Boasting an efficient operation, this fan is ENERGY STAR certified to ensure cost savings.
  • ENERGY STAR qualified with innovative brushless DC motor technology and an efficiency rating of 5.8 CFM/Watt
  • Annual energy cost for 24/7 operation is approximately $13.88 (Based on U.S. average retail electricity and HVI testing labs. Actual results may vary)
  • The cutting-edge, long-lasting brushless DC motor is engineered to run continuously, outlasting traditional AC motor fans by 2½ times (Minimum 70,000 continuous hours)
  • Built-in soft start function to increase bearings' life, motor equipped with thermal cutoff fuse and automatically powers OFF when impeller is locked abnormally for safety
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Ceiling mount ventilating fan rated for Continuous Running
  • Compact housing for easy retrofit and replacement of older bath fans, attractive grille complements any decor
  • Quiet operation at 2 Sones or less
  • Power rating of 120-Volt/60Hz, Low power consumption at 13.2-Watt
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring, UL approved for ceiling and wall mount installation
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively
  • SLM70 is the only 7.25 in. x 7.5 in. small size bath fan in the market
  • Included: (1x) Detachable 3 in. Duct Adapter
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Bath Fans

Exclusive50 CFM Ceiling Bathroom Exhaust Fan with Light
current product
Slim Series 70 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAR
ExclusiveEasy to Install 80 CFM Bathroom Exhaust Fan with LED Clean Cover, ENERGY STARWhisperChoice Pick-A-Flow 80/110 CFM Ceiling Bathroom Exhaust Fan with Flex-Z Fast Bracket
BrandBroan-NuToneDelta BreezBroan-NuTonePanasonic
Name50 CFM Ceiling Bathroom Exhaust Fan with LightSlim Series 70 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAREasy to Install 80 CFM Bathroom Exhaust Fan with LED Clean Cover, ENERGY STARWhisperChoice Pick-A-Flow 80/110 CFM Ceiling Bathroom Exhaust Fan with Flex-Z Fast Bracket
Price
Ratings
(637)
(682)
(196)
(274)
Air Volume (CFM)507080110,80
Fan Sound Level (Sones)2.52.00.80.3,0.4
Housing Width (in.)87.51010.25
Housing Length (in.)8.257.259.2510.25
Maximum Room Size (sq. ft.)457075110
FeaturesLightNo Additional FeaturesLightAdjustable Fan Speed
Installation TypeCeilingCeiling,WallCeilingCeiling
Grill ShapeRectangleSquareSquareSquare
Mount TypeRecessedFlush Mount,Semi-Flush MountRecessedFlush Mount
IncludedNo Additional Items IncludedHardwareNo Additional Items IncludedHardware
View ProductView ProductView ProductView Product

Specifications

Dimensions

Housing Length (in.)
7.25
Housing Width (in.)
7.5
Product Height (in.)
4
Product Length (in.)
10.75
Product Width (in.)
7.5

Details

Air Volume (CFM)
70
Amperage (amps)
0.29
Color/Finish
White
Duct Compatible Sizes
3 in
Fan Sound Level (Sones)
2.0
Features
No Additional Features
Grill Shape
Square
Housing Material
Galvanized Steel
Included
Hardware
Installation Type
Ceiling,Wall
Maximum Room Size (sq. ft.)
70
Mount Type
Flush Mount,Semi-Flush Mount
Pack Size
1
Product Weight (lb.)
6
Returnable
90-Day
Room Size
Small Room Fan
Voltage (volts)
120
Wattage (watts)
13

Warranty / Certifications

Certifications and Listings
Energy Star,HVI Certified,UL Certified,cUL Listed
Manufacturer Warranty
3 Year Limited Warranty

Questions & Answers

104Questions22Answers

Why the noise level is increasing?

Asked by ad45 April 19, 2021
2
Answers

Make sure you clean the fan regularly to reduce the drag on blades, noise level, and energy consumption, as well as risk of fire.

does it work like a ventilation fan?

Asked by tina April 11, 2021
5
Answers

Yes. It is mainly built for a bathroom ventilation fan, but I put it in my tool room in the basement (unfinished 11' by 10' room) with an exhaust hose to the outside to help remove paint or other chemical odors from projects built in the tool room.Takes about 30 seconds to spin up, so don't panic when you first turn it on and nothing happens. Quiet and efficient.

Do you need to go in the attic to install ?

Asked by Bernadette March 24, 2021
1
Answer

Thank you for your recent inquiry with The Home Depot regarding 70 CFM Wall or Ceiling Bathroom Exhaust Fan with Dual Speed, ENERGY STAR. Installation should be abl eto be completed room side for this unit. We appreciate your business and look forward to serving you in the future.

Can this fan be set to Full Speed Mode by default? Seems like if that is my preferred mode I'll ...

Asked by CQ March 2, 2021
0
Answers

We just purchased two of these and one is missing the converter duct to take the oval duct and co...

Asked by nancymross February 24, 2021
1
Answer

You should contact the manufacturer and usually they'll send out missing parts right away.

Hi, The cutout in my ceiling is 7.25" x 8.25", so slightly larger than the 7.25" x 7.5" in the s...

Asked by Rich September 16, 2020
4
Answers

The unit is 7.25 by 7.5, but you could just add a spacer/board/shim to the extra space and install the fan. The cover 'should' be large enough to hide the spacer. Good luck! FYI - it takes about 15-20 seconds for the fan to spin up--it is not instant ON. So don't freak out when it does not come on immediately.

How close can the first elbow be to the housing?

Asked by Charlie September 11, 2020
2
Answers

As shown in the picture, there's a 2 inch flange on the exhaust outlet. Inside the flange is a one-way valve (so air only goes out), so you wouldn't want to remove it. I suppose you could elbow off of the flange, so maybe 2 inches off the metal housing? Keep in mind that any bends are going to increase the back pressure and reduce the flow rate.

How are the ends of the vent cover clips inserted into the slots in the fan housing? Do you have to bend the tabs?

Asked by Kevin August 26, 2020
3
Answers

Pull the spring clips together and slid into the slot. I believe the instructions have a diagram. You dont need to bend anything.

Can 4" duct be used with this (70 cfm) fan? The installation info indicates 3", but this does no...

Asked by Larry August 22, 2020
3
Answers

I used a 3” flex duct off the unit (that I ordered online) and then used a reducer (which I think I also got online) to get from 3” to 4” in order to connect to a standard 4” sidewalk vent cap w/ louver (that you can buy at HD). My issue was that I couldn’t find a 3” vent cap. I don’t know if going from 3” to 4” affects performance, but I didn’t know how else to accomplish the installation.

What is the difference between this fan and the Delta Breez Integrity Series 50 (https://www.home...

Asked by StrongEagle August 12, 2020
1
Answer

The delta breez slim 50 series fan is a fan only where as the delta breez integrity series 50 fan has a dimmable LED light. The integrity series is a lower sone (quieter) rating and has a higher cfm rating than the slim 50 also.

Slim Series 70 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAR - page 2

Customer Reviews

  • 4.6
    out of 682 reviews
  • 92% recommend this product
Filter by:
Showing 1-10 of 682 reviews
Quiet compared to Broan
I was looking for a quiet fan. perfectly to be relax while shower, I bought it since the duct size is 3 inc. Make sure you have a pry bar to remove you existing fan from new construction! also with in cold weather run the fan 10 mins before shower so the duct get aclimate, since the duct get cold and will create condensation, specially when the duct run vertically to the roof (I learned this during my research). Finally I can listen music while shower!
by DLM318
1 person found this helpful
Great fan! We just finished installing this in our wall because our old one was incredibly loud. ...
Great fan! We just finished installing this in our wall because our old one was incredibly loud. And compared to the old one, this one is built so much better. The housing is better quality, wiring was super easy, and getting the fan into the housing was simple. The duct adapter works well too, we needed to buy a 3in to 4in adapter separately but it worked perfectly with this unit. It starts up silently and when it gets to full power you can just barely hear it. Love it so far!
by Ryan
1 person found this helpful
Packaged nicely, came pretty fast. The fan itself is a compact size. The installation was pretty ...
Packaged nicely, came pretty fast. The fan itself is a compact size. The installation was pretty easy, I think a person with little experience can install it.the fan works great for a small bathroom, it is also not noisy at all compared to the old style noisy fans. I would definitely recommend to help keep the mold away!
by MrHandy
1 person found this helpful
Really quiet sometimes i don't hear it on
Really quiet sometimes i don't hear it on. I ordered two of these bathroom exhaust fans on April 22, 2020 i replaced my old one that was too loud which i kinda regret because this one is too quiet and you can hear what's going on in the bathroom. But overall super quiet no complaints there. Installation was easy a pain in the rear removing the old unit. It was installed around June 2020. Now complaint is that once it starts the fan grinds on start up. Not even 4 months and it's not working properly. I like to take hot shower and the mirror in the bathroom still fogs up. Overall really quiet, doesn't force out the steam, and it's not starting up like it use to when installed. Will not recommend it.
by Dom17
Response from THD-CSOct 22, 2020
Thank you Dom17, we appreciate you taking the time to share. We're sorry to hear that you're not satisfied with your purchase. We want to ensure the best possible experience with your purchase, and we would love for you to reach out to us directly so that we can have the opportunity to assist you further. Please, contact us at 1+(888) 979-9889.
2 people found this helpful
My older unit was Loud and did not exhaust much so I was just looking for quiet one. I am regrett...
My older unit was Loud and did not exhaust much so I was just looking for quiet one. I am regretting bit that I should upgraded CFM at the same time as well. This unit is quiet, but not too strong for the area that I had. (Maybe it was at the boarder line to go up next grade). Install was supposed to be simple but I had so much restriction, and being different design (location of exhaust and wires) from previous model, I battled a bit but product itself is all good. Damping mechanism (little tab) pin broke so easily when I tried to put it back together after came out. So I just had to modify a bit using tiny nails. At least it is functioning( Open/close).
by Kei
2 people found this helpful
Purchased 2 for a remodel & am very pleased with how quiet they are. Installation was a "Breez" :...
Purchased 2 for a remodel & am very pleased with how quiet they are. Installation was a "Breez" :). The instructions were easy to read & understand. They are a bit large but they look good installed. The suction is very good & more than enough for our guest & master bathrooms. I will be adding power to my shed & I will be installing one in it for when I'm working in it & need better ventilation in the winter time & cold days.
by Ed
It’s what I needed but could be better
I managed to install two of these to replace existing ancient fans in my condo. They are what I needed and I’m just glad they fit, but there are certainly improvements to be made. For one, unlike the bigger model, this humidity sensor is not adjustable. It is set at 60% plus or minus a 10% accuracy variance. It is fine now in winter but I am unsure if this will be a problem in the summer. Attaching the duct and electrical connections could be made much easier. The duct adaptor attaches to the outside, so you have to position it before getting the box installed, which is difficult in a retrofit with minimal space; it would be better to be able to pull the duct into the box slightly and then attach the adaptor, like the Panasonic EZ supposedly allows. Similar problem with the electrical connections: for the most part it has to be done outside and above the box, although you can take the second cover off the inside to do the actual wiring from there. Also, the cover is rather small and just barely fits over the hole in the drywall. Overall not bad but could be better.
by QuarantineHomeRepairs
1 person found this helpful
We own 4 now and they're great. We leave them on all the time and they only turn on/ramp up when ...
We own 4 now and they're great. We leave them on all the time and they only turn on/ramp up when needed helping AC to clear humidity after a shower or when it happens to be high. You can switch it into High mode (yellow LED light) when you need to clear some bio fumes and back to normal (blue LED light) by a flip of the wall switch, small wait in between. The blue LED even serves as a pretty effective nightlight. A+
by AndrewInStPete
3 people found this helpful
Although installation from room-side was a little awkward, the unit performs as expected in a sma...
Although installation from room-side was a little awkward, the unit performs as expected in a small bathroom. I like the power indicator led behind the grill as a quick visual check to confirm the fan functionality. It is much quieter than the fan it replaced and cannot be heard in the adjoining bedroom.
by DIYer
2 people found this helpful
I needed an efficient exhaust fan for a bathroom remodel and this fits the need perfectly. It's ...
I needed an efficient exhaust fan for a bathroom remodel and this fits the need perfectly. It's easy to install and relatively quiet while moving a lot of air out of the bathroom. It's a DC fan motor, so it has a slow spin-up but once it's reached full speed is still quiet and moves a lot of air. I have no way of quantifying the actual amount of air against the 70CFM specified value, but my fans (I've since installed another in the second bathroom) vent into an 8 foot long 3 inch diameter metal duct to the eave of the house and I've detected no degraded performance.
by ChipperDFW
1 person found this helpful
Showing 1-10 of 682 reviews
